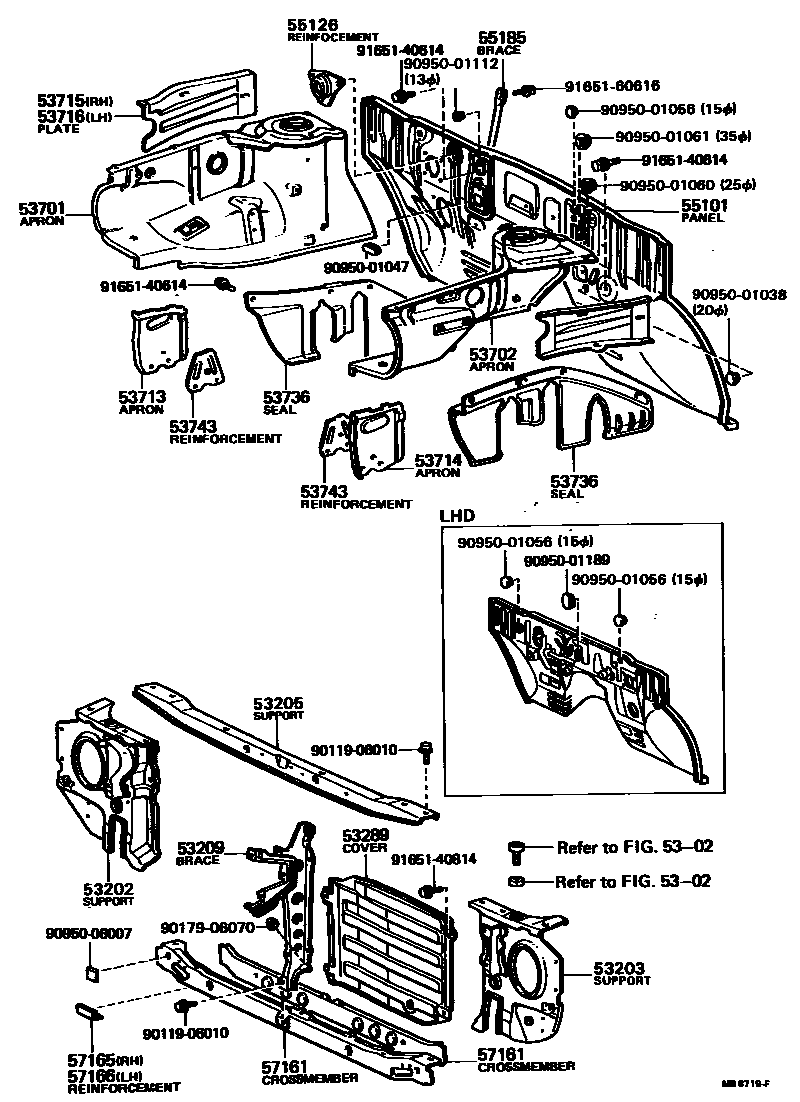

FRONT FENDER APRON & DASH PANEL

5302

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-16010iAL11¥9,700197901-198008

sub53202-16020

main53202-16012iAL11¥9,700198008-198204

sub53202-16021

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-16010iAL11¥8,300197901-198008

sub53203-16020¥8,300

main53203-16011iAL11¥9,700198008-198204

sub53203-16021¥8,300

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-16010iAL11197901-198008

main53216-16011iAL11¥6,500198008-198204

sub53216-16021

53209BRACE SUB-ASSY, HOOD LOCK

main53209-16020iAL11¥2,800197901-198008

sub53209-16010

main53209-16021iAL11198008-198204

53289COVER, RADIATOR SIDE BAFFLE

main53289-16010iAL11197901-198008

main53289-16011iAL11198008-198204

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-16020iAL11¥35,100197901-198105

sub53701-16030

main53701-16030iAL11198105-198204

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-16010iAL11..RHD¥35,000197901-198008

sub53702-16031

main53702-16020iAL11..LHD¥35,000197901-198008

sub53702-16031

main53702-16031iAL11198008-198204

53713APRON, FENDER SIDE, RH

main53713-16010iAL11¥670197901-197908

sub53713-16020

main53713-16020iAL11197908-198008

main53713-16021iAL11198008-198204

53714APRON, FENDER SIDE, LH

main53714-16010iAL11¥670197901-197908

sub53714-16020

main53714-16020iAL11197908-198008

main53714-16021iAL11198008-198204

53715PLATE, FRONT FENDER APRON, REAR RH

main53715-16020iAL11197901-198204

53716PLATE, FRONT FENDER APRON, REAR LH

main53716-16020iAL11197901-198204

53736SEAL, FRONT FENDER APRON, RH

main53736-16010iAL11197901-198204

RH

main53737-16010iAL11197901-198204

LH

53743REINFORCEMENT, FRONT FENDER APRON EXTENSION

main53743-16010iAL11¥980197901-197908

RH

sub53743-16020¥1,120

main53743-16020iAL11¥1,120197908-198008

RH

sub53743-16021

main53743-16021iAL11198008-198204

RH

main53744-16010iAL11¥980197901-197908

LH

sub53744-16020¥1,120

main53744-16020iAL11¥1,120197908-198008

LH

sub53744-16021

main53744-16021iAL11198008-198204

LH

55101PANEL SUB-ASSY, DASH

main55101-16010iAL11..RHD¥19,800197901-197903

sub55101-16011

sub90950-01038¥220

sub90950-01060¥200

sub90950-01061¥240

main55101-16011iAL11..RHD..4F197903-198204

main55101-16050iAL11..LHD..MTM197901-198005

sub55101-16051

sub55106-16021

main55101-16051iAL11..LHD..MTM198005-198204

sub55101-16091

sub90950-01038¥220

sub90950-01060¥200

sub90950-01061¥240

main55101-16060iAL11..RHD..3FC197908-198204

main55101-16080iAL11..LHD..3FC197908-198204

sub55101-16100

sub90950-01038¥220

sub90950-01060¥200

sub90950-01061¥240

sub91111-50608¥170

55126REINFORCEMENT, CLUTCH WIRE SUPPORT

main55126-16030iAL11..RHD..4F198003-198204

55185BRACE, DASH PANEL TO COWL

main55185-16010iAL11..RHD197901-198204

main55185-16020iAL11..LHD197901-198204

57161CROSSMEMBER, FRONT

main57161-16010iAL11¥4,520197901-197912

FR

sub57161-16011

main57161-16011iAL11197912-198008

FR

sub57161-16021

main57161-16012iAL11¥6,000198008-198204

FR

sub57161-16022

main57162-16010iAL11197901-198008

RR

sub57162-16020

main57162-16011iAL11¥4,720198008-198204

RR

sub57162-16021

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57163-16010iAL11¥320197901-197908

sub57163-16020

main57163-16020iAL11197908-198204

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57163-16010iAL11¥320197901-197908

sub57163-16020

main57163-16020iAL11197908-198204

9011906010

main90119-06010¥90

9017906070

main90179-06070¥180

9095001038

main90950-01038¥220

9095001047

main90950-01047¥260

9095001056

main90950-01056¥230

9095001060

main90950-01060¥200

9095001061

main90950-01061¥240

9095001112

main90950-01112¥190

9095001189

main90950-01189¥240

9095006007

main90950-06007¥260

9165140614

main91651-40614¥160

9165140814

main91651-40814¥180

9165160616

main91651-60616¥100

33 parts on this diagram · 1 diagram in section
