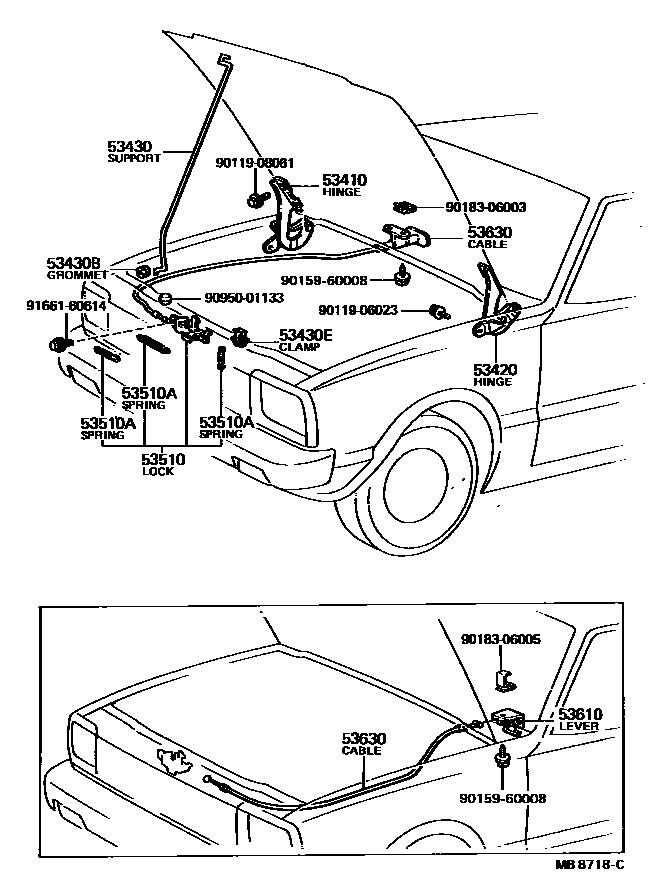

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16010iAL11197901-198008

sub53410-16011

main53410-16011iAL11198008-198204

53420HINGE ASSY, HOOD, LH

main53420-16010iAL11197901-198008

sub53420-16011

main53420-16011iAL11198008-198204

53430SUPPORT ASSY, HOOD

main53451-16010iAL11197901-198008

main53451-16011iAL11198008-198204

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15002iAL11197901-198204

53430ECLAMP, HOOD SUPPORT

main53452-90351iAL11197901-198204

53510LOCK ASSY, HOOD

main53510-16010iAL11..RHD197901-198008

main53510-16020iAL11..LHD197901-198008

main53510-16030iAL11..RHD198008-198204

main53510-20100iAL11..LHD198008-198204

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iAL11..RHD197901-198204

WD=0.9,CW=21.25,L=34.4

main90506-09009iAL11..LHD197901-198008

L=47.95

main90506-09012iAL11197901-198008

L=58.35

main90506-20022iAL11..LHD197901-198008

L=67

main90506-20023iAL11..RHD197901-198008

L=61.5

main90506-23004iAL11198008-198204

L=60

sub90506-20009

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-16010-01iAL11..LHD197901-198204

BLACK,BLACK,TRIM2#

sub53601-16010

main53601-16010-04iAL11..LHD197901-198204

BLUE,BLUE,TRIM8#

sub53601-16010

main53601-16010-06iAL11..LHD197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub53601-16010

main53601-16010-16iAL11..LHD198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub53601-16010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16010iAL11..RHD197901-198008

main53630-16030iAL11..LHD197901-198008

main53630-16050iAL11..RHD198008-198204

main53630-16070iAL11..LHD198008-198204

sub53630-20120

9011906023

main90119-06023

9011908061

main90119-08061

9015960008

main90159-60008

9018306003

main90183-06003

9018306005

main90183-06005

9095001133

main90950-01133

9166160614

main91661-60614

16 parts on this diagram · 1 diagram in section
