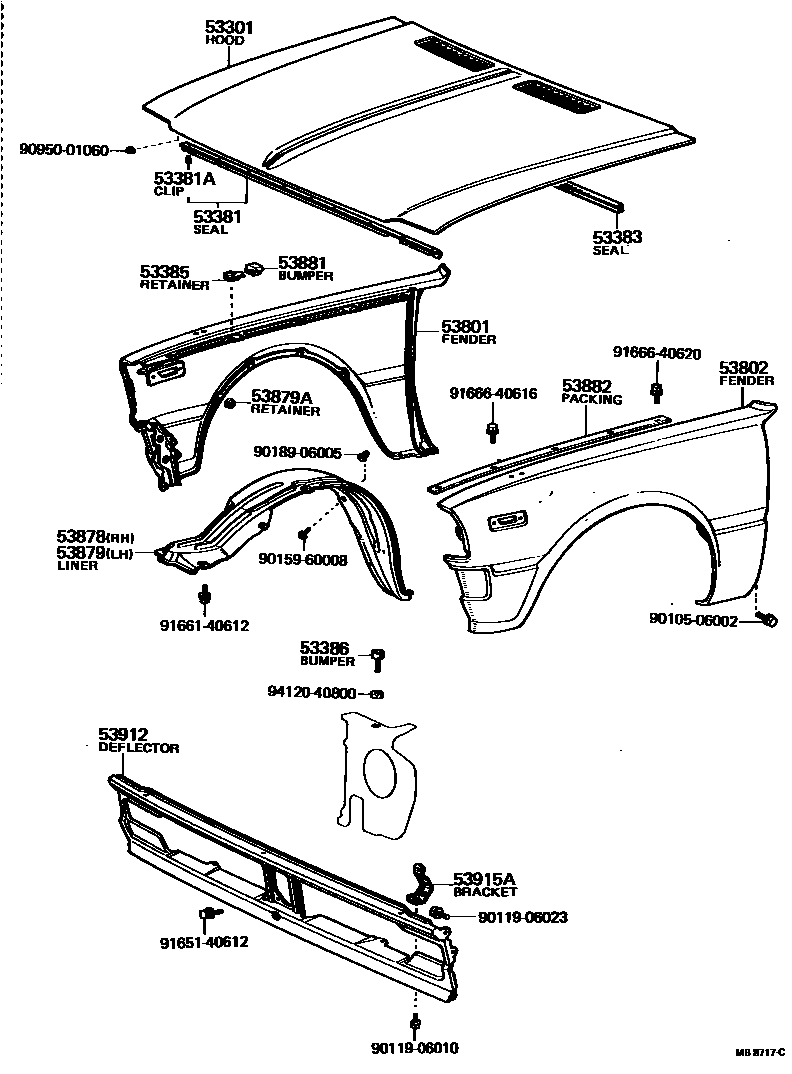

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-16010iAL11197901-198008

sub53301-16020

main53301-16011iAL11198008-198204

sub53301-16021

main53301-16021iAL11..EUR198010-198204

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-16010iAL11197901-198008

main53381-16011iAL11198008-198204

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008iAL11197901-198204

53383SEAL, HOOD TO COWL TOP

main53383-16010iAL11197901-198204

53385RETAINER, HOOD, BUMPER

main53385-14010iAL11197901-198204

RH

main53386-14010iAL11197901-198204

LH

53386BUMPER, HOOD, REAR

main53382-12040iAL11197911-198204

main53382-20011iAL11197901-197911

sub53382-90A00

53801FENDER SUB-ASSY, FRONT RH

main53801-16020iAL11..EUR197901-198008

main53801-16030iAL11..GEN197901-198008

sub53801-16020

main53801-16031iAL11..GEN198008-198204

sub53801-16040

main53801-16040iAL11..EUR198008-198204

main53801-16050iAL11..GEN198008-198204

W/MIRROR

53802FENDER SUB-ASSY, FRONT LH

main53802-16020iAL11..EUR197901-198008

main53802-16030iAL11..GEN197901-198008

sub53802-16020

main53802-16031iAL11..GEN198008-198204

sub53802-16040

main53802-16040iAL11..EUR198008-198204

main53802-16050iAL11..GEN198008-198204

W/MIRROR

53878LINER, FRONT FENDER, RH

main53875-16010iAL11197901-198008

main53875-16011iAL11198008-198204

53879LINER, FRONT FENDER, LH

main53876-16010iAL11197901-198008

main53876-16011iAL11198008-198204

53879ARETAINER, FRONT FENDER LINER

main53879-22010iAL11197901-198204

53881BUMPER, FENDER TO HOOD

main53384-16010iAL11197901-198204

53882PACKING, FRONT FENDER MAIN

main53882-16010iAL11197901-198204

53912DEFLECTOR, FRONT BUMPER STONE

main53901-16010iAL11..GEN198008-198204

sub53901-16020

main53901-16020iAL11..EUR198008-198204

main53911-16010iAL11..GEN197901-197912

sub53911-16011

main53911-16011iAL11..GEN197912-198008

main53911-16020iAL11..EUR197909-197912

sub53911-16021

main53911-16021iAL11..EUR197912-198008

sub53911-16011

53915ABRACKET, FRONT VALANCE PANEL MOUNTING

main53231-16010iAL11197901-197908

sub53231-16020

main53231-16020iAL11197908-198008

9010506002

main90105-06002

9011906010

main90119-06010

9011906023

main90119-06023

9015960008

main90159-60008

9018906005

main90189-06005

9095001060

main90950-01060

9165140612

main91651-40612

9166140612

main91661-40612

9166640616

main91666-40616

9166640620

main91666-40620

9412040800

main94120-40800

26 parts on this diagram · 2 diagrams in section
