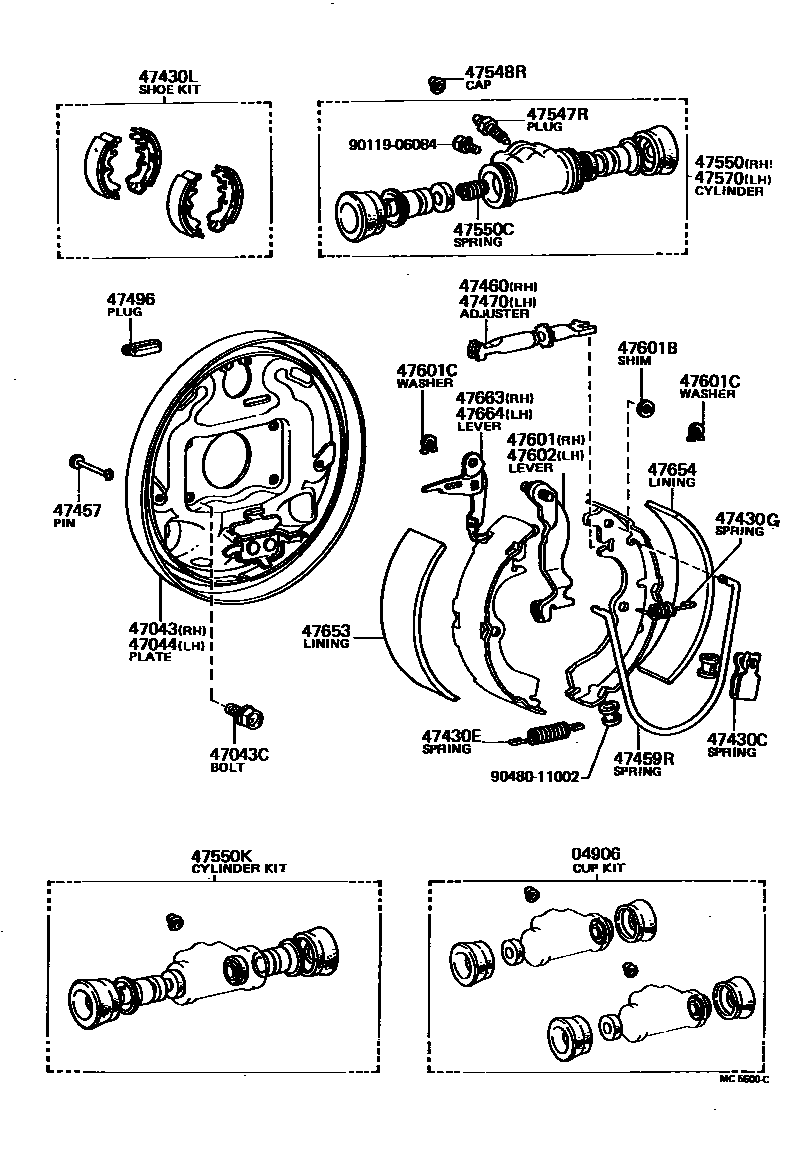

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-16010iAL11197901-198204

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-16010iAL11197901-198204

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90119-10157iAL11197901-198204

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-16010iAL11197901-198204

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10020iAL11197901-198204

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014iAL11197901-198204

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12014iAL11197901-198204

47430LSHOE KIT, REAR BRAKE

main04495-16010iAL11197901-198204

sub04495-16011

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010iAL11197901-198204

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16010iAL11197901-198204

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-16010iAL11197901-198204

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-16010iAL11197901-198204

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAL11197901-198204

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAL11197901-198204

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAL11197901-198204

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19105iAL11197901-197910

sub47550-19106

main47550-19106iAL11197910-198204

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAL11197901-198204

sub90029-60014

47550KCYLINDER KIT, REAR WHEEL

main04474-16010iAL11197901-197910

sub04474-16011

main04474-16011iAL11197910-198204

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19105iAL11197901-197910

sub47550-19106

main47550-19106iAL11197910-198204

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-10010iAL11197901-198012

sub47611-10H00

main47611-10011iAL11198012-198204

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAL11197901-198204

T=0.3,T=0.3

main90564-08151iAL11197901-198204

T=0.6,T=0.6

main90564-08152iAL11197901-198204

T=0.9,T=0.9

main90564-08172iAL11197901-198204

T=0.2,T=0.2

main90564-08173iAL11197901-198204

T=0.4,T=0.4

main90564-08174iAL11197901-198204

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAL11197901-198204

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-10010iAL11197901-198012

sub47612-10H00

main47612-10011iAL11198012-198204

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-16010iAL11197901-198204

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-16010iAL11197901-198204

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-10010iAL11197901-198012

sub47643-10H00

main47643-10011iAL11198012-198204

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-10010iAL11197901-198012

sub47644-10H00

main47644-10011iAL11198012-198204

9011906084

main90119-06084

9048011002

main90480-11002
