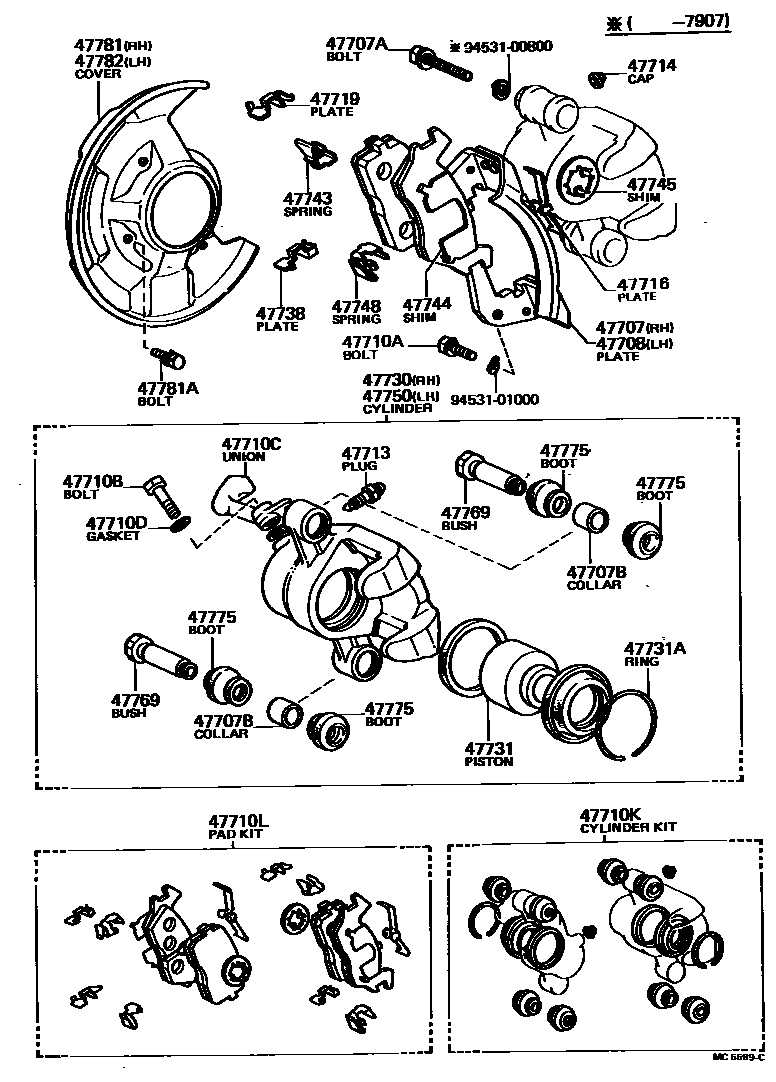

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-10010iAL11197901-198204

AISIN

main47707-10030iAL11197903-198204

TOYOTA

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90101-08031iAL11197901-197907

sub90119-08217

main90119-08217iAL11197907-198204

47707BCOLLAR(FOR FRONT DISC BRAKE TORQUE PLATE)

main90387-13002iAL11197901-198204

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47707-10010iAL11197901-198204

AISIN

main47707-10030iAL11197903-198204

TOYOTA

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-10443iAL11197901-198204

sub90119-10339

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10098iAL11197901-198204

47710CUNION(FOR FRONT DISC BRAKE CALIPER)

main90404-10010iAL11197901-198204

RH

main90404-10011iAL11197901-198204

LH

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10074iAL11197901-198204

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-16010iAL11197901-198204

47710LPAD KIT, DISC BRAKE, FRONT

main04491-10030iAL11197901-198008

sub04491-10040

main04491-10040iAL11198008-198204

sub04491-10041

main04491-16010iAL11197901-198008

HEAVY DUTY

sub04491-10042

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAL11197901-198204

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAL11197901-198204

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-10010iAL11197901-198204

sub47716-10020

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47719-10030iAL11197901-198204

sub47736-10010

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-16010iAL11197901-197903

main47730-16011iAL11197903-198204

AISIN

main47730-16030iAL11197903-198204

TOYOTA

47731PISTON, FRONT DISC BRAKE

main47731-12040iAL11197901-197910

main47731-12040iAL11197910-198204

TOYOTA

main47731-16010iAL11197910-198204

AISIN

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-56001iAL11197901-198204

47738PLATE, DISC BRAKE PAD GUIDE, NO.2

main47738-10010iAL11197901-198204

sub47738-10020

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-10010iAL11197901-198204

sub47743-10020

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-10010iAL11197901-198204

sub47744-10020

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-10010iAL11197901-198204

sub47745-10020

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-10030iAL11197901-198204

sub47748-10040

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-16010iAL11197901-197903

main47750-16011iAL11197903-198204

AISIN

main47750-16030iAL11197903-198204

TOYOTA

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-10020iAL11197901-198204

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16010iAL11197901-198204

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-16020iAL11197901-198204

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main91611-40610iAL11197901-198204

sub91611-60610

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-16020iAL11197901-198204

9453100800

main94531-00800

9453101000

main94531-01000

30 parts on this diagram · 2 diagrams in section
