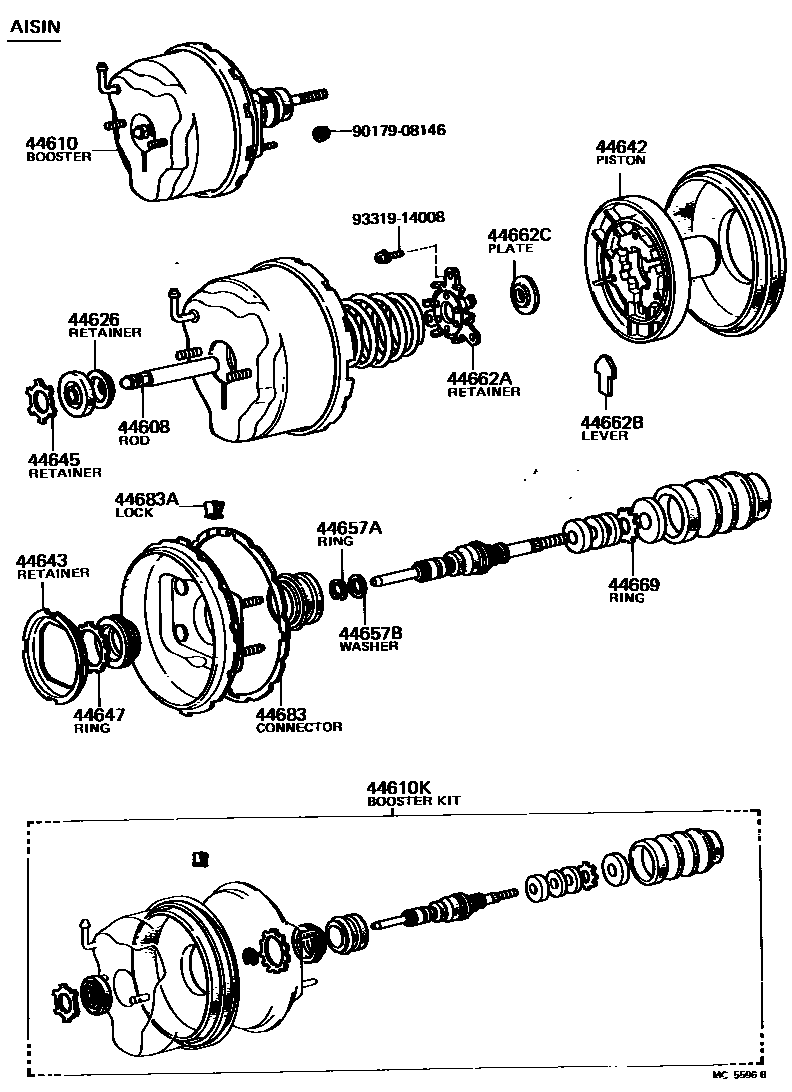

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12070iAL11197901-198204

AISIN

main44608-14040iAL11¥1,630197901-198204

JKC

44610BOOSTER ASSY, BRAKE

main44610-16010iAL11¥35,000197901-198008

AISIN

sub44610-16011¥35,000

main44610-16011iAL11..LHD..GEN¥35,000198008-198204

AISIN

main44610-16021iAL11..RHD198008-198204

JKC

44610KBOOSTER KIT, BRAKE

main04443-16010iAL11197901-198204

AISIN

main04443-16020iAL11197901-198204

JKC

44626RETAINER, BOOSTER ROD CUP

main44626-60010iAL11..LHD..GEN¥160197901-198204

44642PISTON, BRAKE BOOSTER

main44642-14190iAL11¥7,400197901-198204

AISIN

main44642-20080iAL11¥11,400197901-198204

JKC

44643RETAINER, DIAPHRAGM

main44643-60010iAL11..LHD..GEN¥620197901-198204

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iAL11¥440197901-198204

AISIN

main44645-22020iAL11¥220197901-198204

JKC

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iAL11¥300197901-198204

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iAL11..LHD..GEN¥260197901-198204

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iAL11¥250197901-198204

44662ARETAINER, REACTION, NO.2

main44662-20100iAL11¥610197901-198204

44662BLEVER, REACTION

main44661-60010iAL11¥440197901-198204

sub44661-35100¥470

44662CPLATE, REACTION, NO.1

main44653-20100iAL11197901-198204

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iAL11¥270197901-198204

44683CONNECTOR, BOOSTER BODY

main44682-20100iAL11¥1,450197901-198204

44683ALOCK, CONNECTOR

main44683-20100iAL11¥450197901-198204

9017908146

main90179-08146¥180

9331914008

main93319-14008¥80

18 parts on this diagram · 3 diagrams in section
