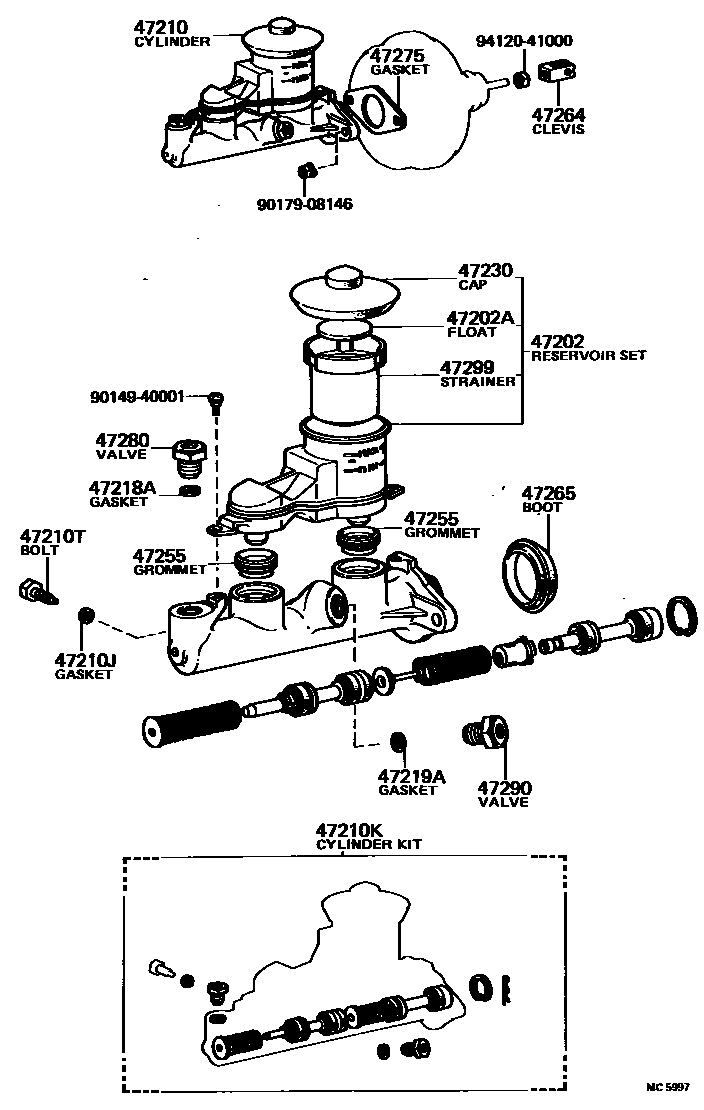

BRAKE MASTER CYLINDER

0001 1 0002 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-10010iAL11..EUR197901-198204

main47202-10020iAL11..GEN197901-198204

47202AFLOAT, MASTER CYLINDER RESERVOIR

main31426-20010iAL11..GEN197901-198204

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-16020iAL11..EUR197901-198204

sub47207-16010

sub84460-12021

main47201-16030iAL11..LHD..GEN197901-198204

sub47207-16010

sub31426-20010

sub47230-20040

main47201-16040iAL11..RHD197901-198204

sub47207-16030

sub31426-20010

sub47230-20040

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAL11197901-198204

47210KCYLINDER KIT, BRAKE MASTER

main04493-16010iAL11197901-198003

sub04493-16011

main04493-16011iAL11198003-198204

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAL11197901-198204

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iAL11197901-198204

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iAL11197901-198204

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAL11..GEN197901-198204

main84460-12021iAL11..EUR197901-198204

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iAL11197901-198204

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAL11197901-198204

47265BOOT, MASTER CYLINDER

main47265-20050iAL11197901-198204

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iAL11197901-198204

sub47275-26010

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iAL11197901-198204

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iAL11197901-198204

sub47280-14010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-10010iAL11197901-198204

9014940001

main90149-40001

9017908146

main90179-08146

9412041000

main94120-41000

19 parts on this diagram · 2 diagrams in section
