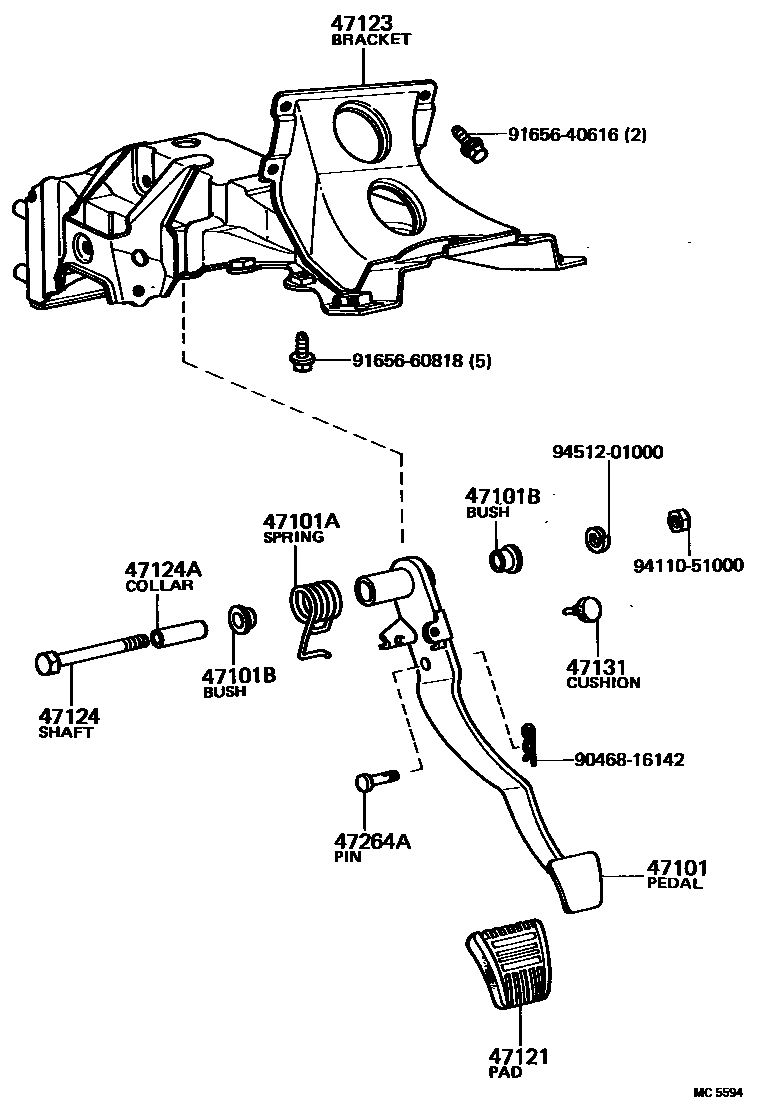

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-16010iAL11..RHD..4F197901-198204

main47101-16020iAL11..LHD..MTM197901-198204

main47101-16030iAL11..RHD..3FC197908-198204

main47101-16040iAL11..LHD..3FC197908-198204

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-40003iAL11197901-198204

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iAL11197901-198107

main90386-13192iAL11198107-198204

47121PAD, BRAKE PEDAL

main31321-12030iAL11197901-198204

main47121-12020iAL11..3FC198008-198204

47123BRACKET, BRAKE PEDAL

main55106-16010iAL11..RHD..4F197901-198204

main55106-16020iAL11..LHD..MTM197901-198005

main55106-16021iAL11..LHD..MTM198005-198008

main55106-16030iAL11..RHD..3FC197908-198204

main55106-16040iAL11..LHD..3FC197908-198204

main55106-16060iAL11..LHD..MTM198008-198204

47124SHAFT, BRAKE PEDAL

main90101-10048iAL11197901-198204

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10021iAL11197901-198204

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iAL11197901-198204

47264APIN(FOR PUSH ROD)

main90249-08051iAL11197901-198204

9046816142

main90468-16142

9165640616

main91656-40616

9165660818

main91656-60818

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
