FRONT DRIVE SHAFT

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-16010iAL11197901-198204

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-16010iAL11197901-198204

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19015iAL11197901-198204

43403ARING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING)

main90521-23001iAL11197901-198204

43403KBOOT KIT, FRONT AXLE INBOARD JOINT SET

main04438-16011iAL11197901-198204

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-19015iAL11197901-198204

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16011iAL11197901-198204

43410KBOOT KIT, FRONT DRIVE SHAFT

main04438-16021iAL11197901-198204

sub04438-16022

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-16011iAL11197901-198204

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04020iAL11197901-198204

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04022iAL11197901-198204

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04020iAL11197901-198204

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04021iAL11197901-198204

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19016iAL11197901-198204

43460ARING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT)

main90520-22001iAL11197901-198204

sub90520-22029

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19016iAL11197901-198204

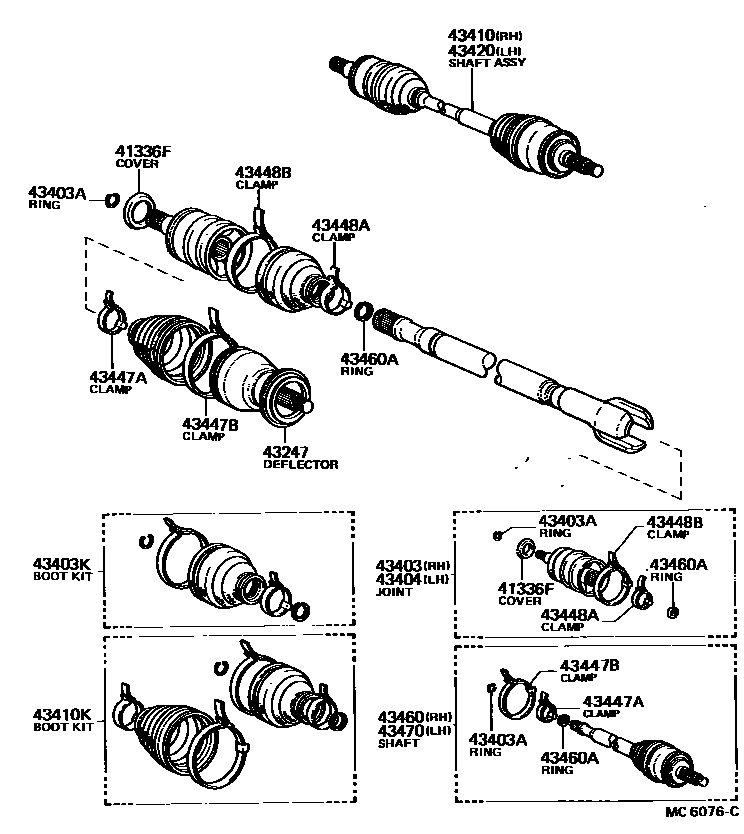

16 parts on this diagram · 1 diagram in section
