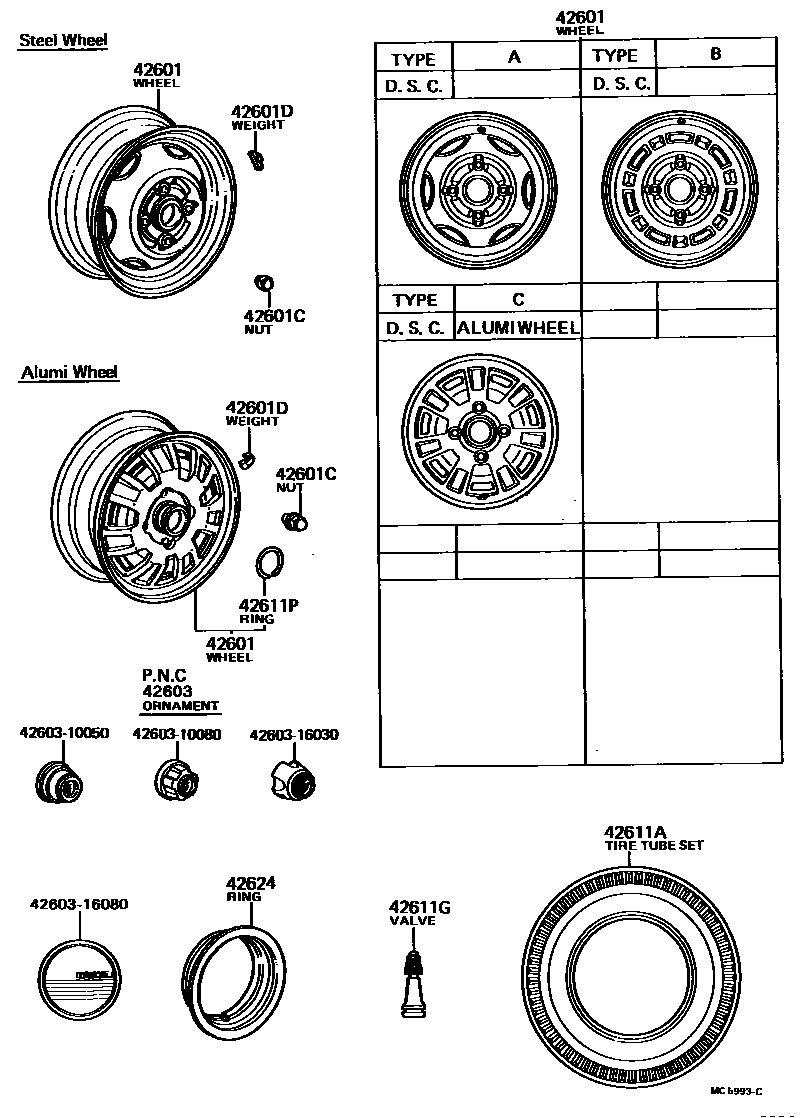

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42601-16010×4iAL11..(3DS,4DS)..(3FC,5F)..DLX..EUR198001-198003

5J-13,ALUMI WHEEL

main42611-16050×4iAL11197901-197907

4.5J-13,TYPE B

main42611-16051×4iAL11197907-198204

4.5J-13,TYPE B

main42611-16100×4iAL11..DLX197901-197907

5J-13,TYPE A

main42611-16101×4iAL11..2DS..STD..EUR198004-198005

5J-13,TYPE B

42601CNUT, HUB (FOR AXLE)

main90942-01026×16iAL11198008-198204

W/ALUMI WHEEL

main90942-01027×16iAL11..STD197901-198204

BLACK

main90942-01028×16iAL11197901-198204

CHROM

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iAL11197901-198204

20G,T=8,20G

main90942-03020iAL11197901-198204

30G,T=10,30G

main90942-03022iAL11197901-198204

40G,T=9.5,40G

main90942-03025iAL11197901-198204

50G,T=9.5,50G

main90942-03027iAL11197901-198204

60G,T=9.5,60G

main90942-03029iAL11197901-198204

70G,T=9.5,70G

main90942-03031iAL11197901-198204

80G,T=9.5,80G

main90942-03041iAL11197901-198204

10G,T=7.5,10G

main90942-03092iAL11198008-198204

10G,10G,W/ALUMI WHEEL

main90942-03093iAL11..(3DS,4DS)..(3FC,5F)..DLX..EUR198001-198003

20G,20G,W/ALUMI WHEEL

main90942-03094iAL11198008-198204

30G,30G,W/ALUMI WHEEL

main90942-03095iAL11198008-198204

40G,40G,W/ALUMI WHEEL

main90942-03096iAL11..(3DS,4DS)..(3FC,5F)..DLX..EUR198001-198003

50G,50G,W/ALUMI WHEEL

main90942-03097iAL11198008-198204

60G,60G,W/ALUMI WHEEL

main90942-03098iAL11197910-198204

15G,15G

main90942-03099iAL11197910-198204

25G,25G

main90942-03100iAL11197910-198204

35G,35G

main90942-03101iAL11197910-198204

45G,45G

main90942-03102iAL11197910-198204

55G,55G

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-10050×4iAL11197901-198204

main42603-10080×4iAL11..STD197901-198204

main42603-16030×4iAL11198001-198003

W/ALUMI WHEEL

main42603-16080×4iAL11198008-198204

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-16010×4iAL11197901-198204

165/70SR13,W/T

main42605-16020×4iAL11197901-198204

145SR13,W/T

main42605-16030×4iAL11197901-198008

6.15-13-4,W/T

main42652-16010×4iAL11197901-198204

165/70SR13 STEEL,T/L

sub42652-10390

main42652-16020×4iAL11197901-198204

145SR13 STEEL,T/L

main42652-16030×4iAL11197901-198008

6.15-13-4,T/L

main42652-16110×4iAL11198008-198204

145SR13

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAL11197901-198204

42611PRING, SET

main90522-59001×4iAL11..(3DS,4DS)..(3FC,5F)..DLX..EUR198001-198003

42624RING, WHEEL CAP

main42624-14023×4iAL11..2DS..STD..EUR198004-198005

DENMARK SPEC

main42624-14024×4iAL11..DLX198105-198112

main42624-14025×4iAL11..DLX198112-198204

4260310050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-10050

4260310080ORNAMENT SUB-ASSY, WHEEL HUB

main42603-10080

4260316030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16030

4260316080ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16080

12 parts on this diagram · 1 diagram in section
