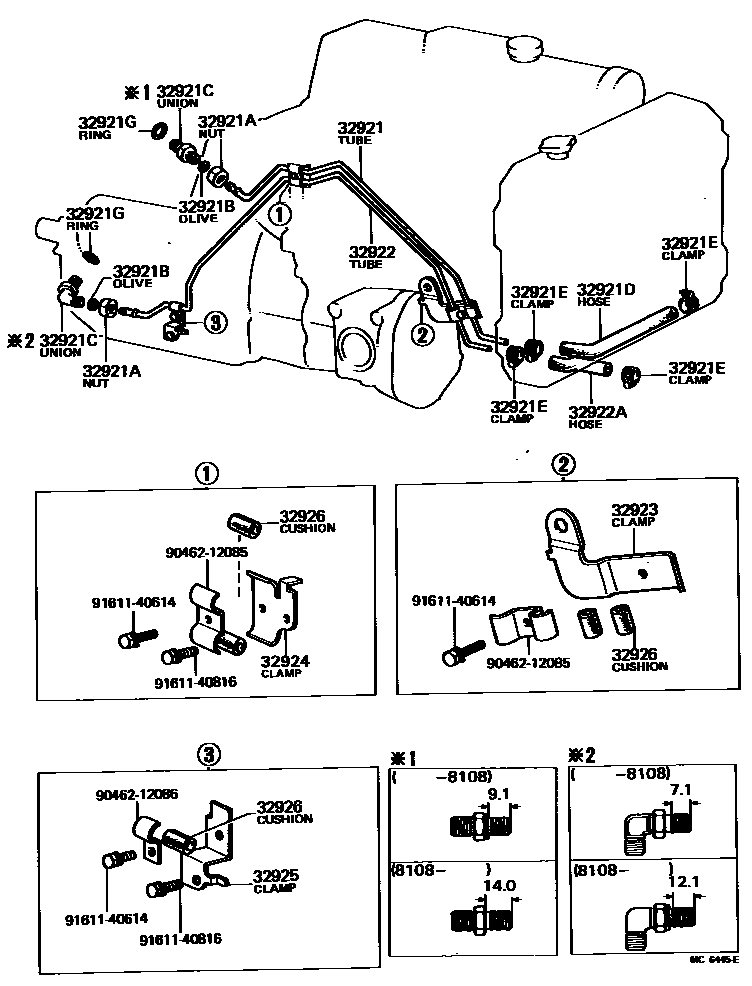

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-16010iAL11..3FC197908-198204

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041×2iAL11..3FC197908-198204

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400×2iAL11..3FC197908-198204

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iAL11..3FC198108-198204

INLET

main90404-13265iAL11..3FC197908-198108

INLET

main90407-13002iAL11..3FC197910-198108

OUTLET

main90407-13005iAL11..3FC198108-198204

OUTLET

main90407-13060iAL11..3FC197908-197910

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14052iAL11..3FC197908-198204

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iAL11..3FC197908-198204

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAL11..3FC197908-198204

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-16010iAL11..3FC197908-198008

main32922-16011iAL11..3FC198008-198110

main32922-16012iAL11..3FC198110-198204

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14053iAL11..3FC197908-198204

sub90445-14092

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-16010iAL11..3FC197908-198204

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-16010iAL11..3FC198008-198204

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-16010iAL11..3FC198110-198204

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×4iAL11..3FC197908-198110

L=25,ID=8

9046212085

main90462-12085

9046212086

main90462-12086

9161140614

main91611-40614

9161140816

main91611-40816

17 parts on this diagram · 1 diagram in section
