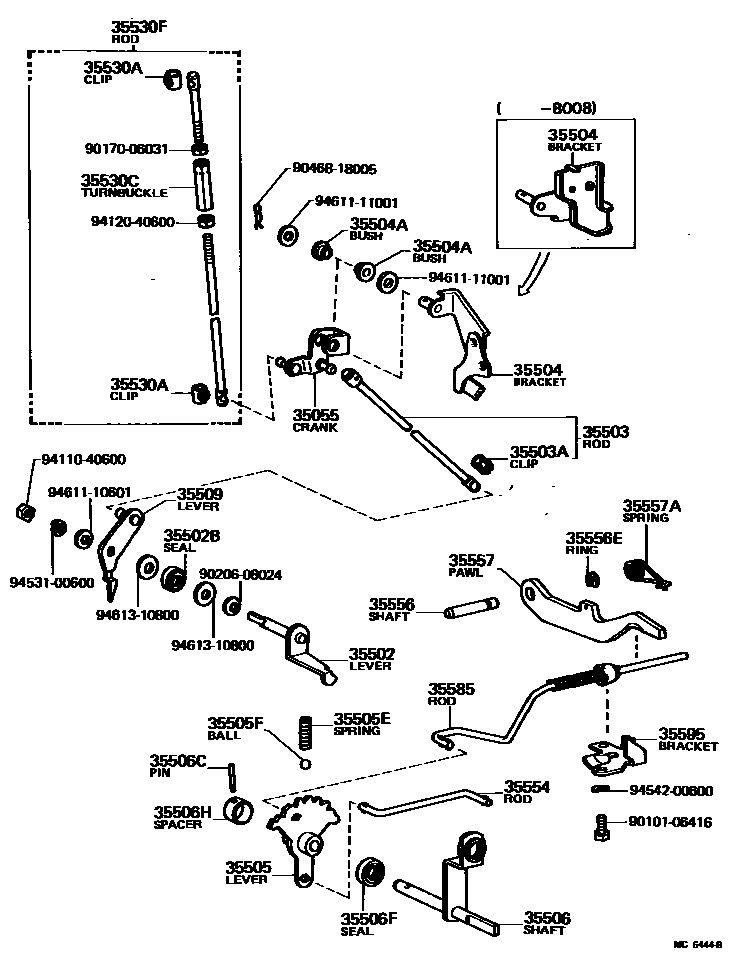

THROTTLE LINK & VALVE LEVER (ATM)
35055CRANK SUB-ASSY, THROTTLE LINK BELL
35502LEVER SUB-ASSY, THROTTLE VALVE
sub35502-16011
35502BSEAL, TYPE K OIL (FOR THROTTLE VALVE LEVER)
sub90311-08002
35503ROD SUB-ASSY, THROTTLE LINK CONNECTING, 1ST
35503ACLIP(FOR THROTTLE LINK CONNECTING ROD)
35504BRACKET SUB-ASSY, THROTTLE BELLCRANK, NO.1
35504ABUSH (FOR THROT BELLCRANK BRACKET)
35505LEVER SUB-ASSY, MANUAL VALVE
35505ESPRING, COMPRESSION (FOR MANUAL VALVE LEVER)
35505FBALL (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
sub90560-20006
35509LEVER SUB-ASSY, THROTTLE VALVE, OUTER
35530ACLIP, ACCELERATOR JOINT BALL
35530CTURNBUCKLE, THROTTLE LINK CONNECTING ROD, NO.2
35530FROD ASSY, THROTTLE LINK CONNECTING
sub35530-16011
35554ROD, MANUAL VALVE CONNECTING
35556SHAFT, PARKING LOCK PAWL
sub35556-26010
35556ERING, E (FOR PARKING LOCK PAWL SHAFT)
35557PAWL, PARKING LOCK
sub35557-35010
35595BRACKET, PARKING LOCK PAWL
sub35595-22020
9010106416
main90101-06416
9017006031
main90170-06031
9020608024
main90206-08024
9046818005
main90468-18005
9411040600
main94110-40600
9412040600
main94120-40600
9453100600
main94531-00600
9454200600
main94542-00600
9461110601
main94611-10601
9461111001
main94611-11001
9461310800
main94613-10800
36 parts on this diagram · 1 diagram in section
