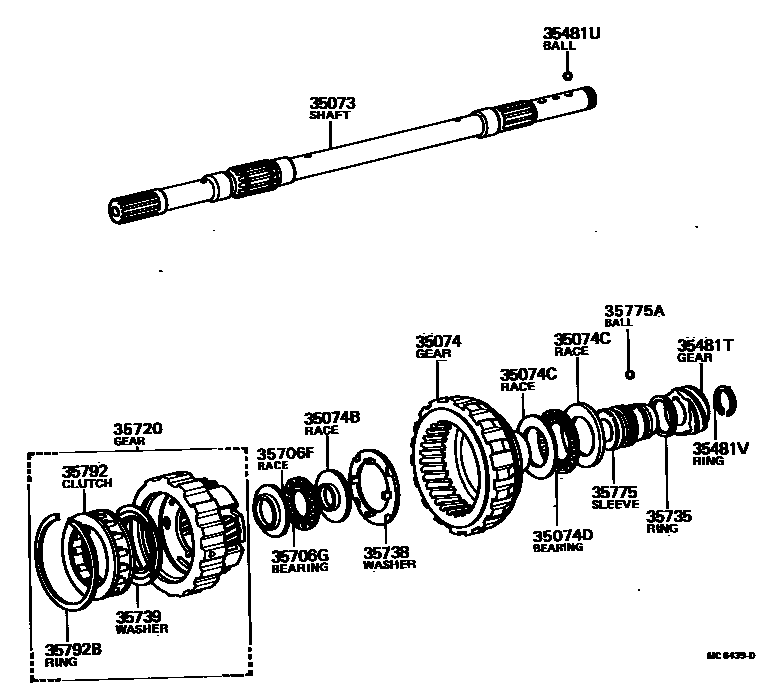

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35073SHAFT SUB-ASSY, OUTPUT

main35073-16011iAL11..3FC197908-198204

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-16010iAL11..3FC197908-198204

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iAL11..3FC197908-198204

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-16040iAL11..3FC197908-198204

FLANGE SIDE

main35789-16200iAL11..3FC197908-198204

CASE SIDE

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-32002iAL11..3FC197908-198204

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-16010iAL11..3FC197908-198204

N=6

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-05006iAL11..3FC197908-198204

sub90360-05012

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-18266iAL11..3FC197908-198204

T=1.60-1.65

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-22010iAL11..3FC197908-198204

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-23012iAL11..3FC197908-198204

35720GEAR ASSY, FRONT PLANETARY

main35720-22011iAL11..3FC197908-198010

sub35720-22012

main35720-22012iAL11..3FC198010-198204

35735RING, PLANETARY OUTPUT SNAP

main35735-30010iAL11..3FC197908-198204

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-16010iAL11..3FC197908-198203

sub35738-16011

main35738-16011iAL11..3FC198203-198204

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-22011iAL11..3FC197908-198204

35775SLEEVE, OUTPUT SHAFT

main35775-16011iAL11..3FC197908-198204

35775ABALL, OUTPUT SHAFT SLEEVE

main90360-05006iAL11..3FC197908-198204

sub90360-05012

35792CLUTCH, 1 WAY, NO.2

main35792-22020iAL11..3FC197908-198204

sub35792-20010

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iAL11..3FC197908-198204

18 parts on this diagram · 1 diagram in section
