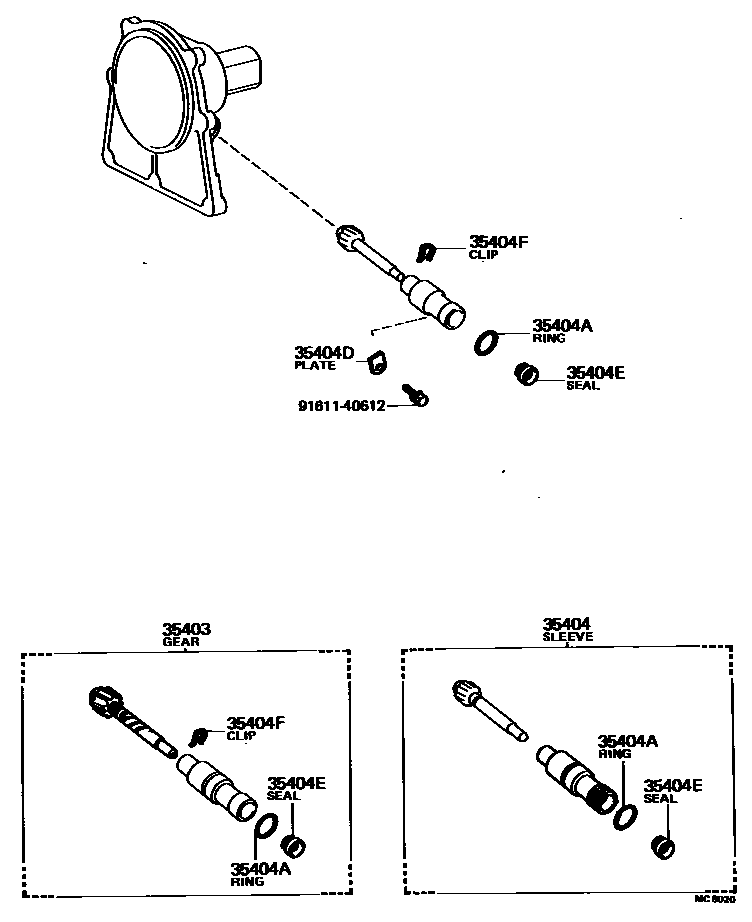

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19105iAL11..3FC198008-198204

N=19

main33403-19115iAL11..3FC197908-198204

N=20

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-16010iAL11..3FC197908-198204

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96710-02018iAL11..3FC197908-198204

sub96711-19018

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iAL11..3FC198008-198204

main33485-16010iAL11..3FC197908-198008

sub33485-14010

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAL11..3FC197908-198204

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAL11..3FC197908-198204

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section
