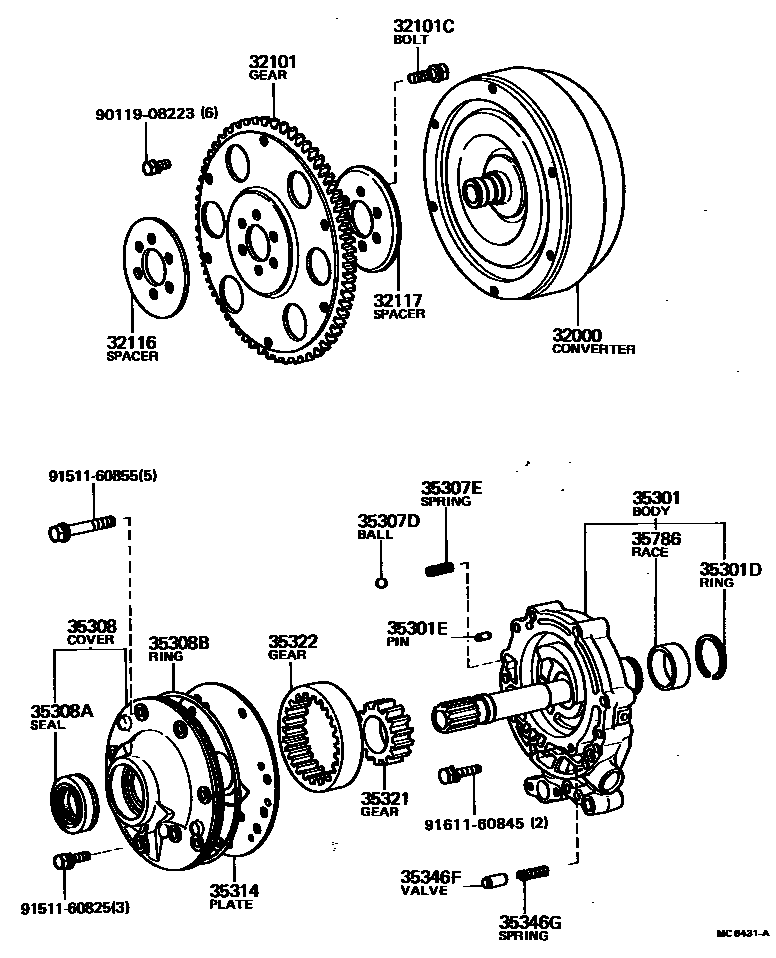

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301DRING, SHAFT SNAP (FOR FRONT OIL PUMP)
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
35307DBALL, REVERSE SHIFT RESTRICT
35307ESPRING, COMPRESSION (FOR REVERSE SHIFT RESTRICT)
35308COVER SUB-ASSY, FRONT OIL PUMP
35308ASEAL, OIL (FOR FRONT OIL PUMP COVER)
35308BRING, TRANSMISSION CASE SEAL
35314PLATE, FRONT OIL PUMP
35321GEAR, FRONT OIL PUMP DRIVE
T=15.235-15.249
T=15.250-15.271
T=15.272-15.286
35322GEAR, FRONT OIL PUMP DRIVEN
T=15.235-15.249
T=15.250-15.271
T=15.272-15.286
35346FVALVE, PRIMING(FOR FRONT OIL PUMP)
35346GSPRING, COMPRESSION(FOR PRIMING VALVE)
35786RACE, DRIVE SPROCKET
9011908223
9151160825
9151160855
9161160845
23 parts on this diagram · 2 diagrams in section
