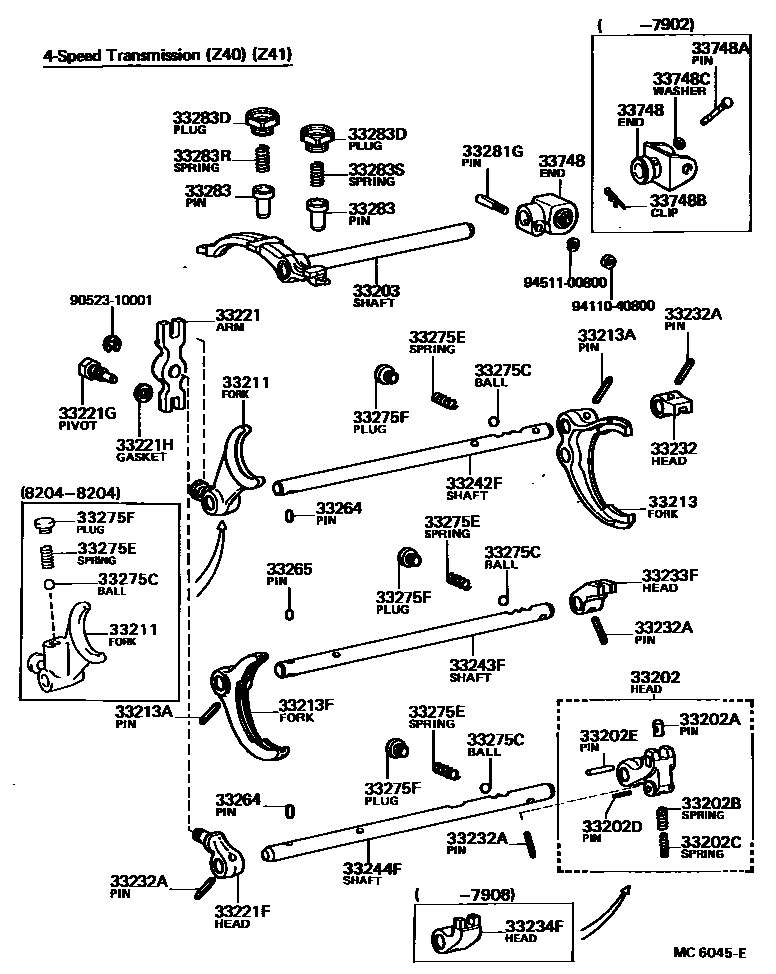

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33202APIN, REVERSE RESTRICT, NO.2
33202BSPRING, COMPRESSION, NO.1(FOR REVERSE RESTRICT PIN)
33202CSPRING, COMPRESSION, NO.2(FOR REVERSE RESTRICT PIN)
33202DPIN, SLOTTED SPRING(FOR REVERSE RESTRICT)
33202EPIN, STRAIGHT(FOR REVERSE RESTRICT)
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221FHEAD, REVERSE SHIFT ARM
33221GPIVOT, REVERSE SHIFT ARM
33221HGASKET(FOR PIVOT REVERSE SHIFT ARM)
33232HEAD, 1ST & 2ND SHIFT
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33233FHEAD, 3RD & 4TH SHIFT
33234FHEAD, REVERSE & 5TH SHIFT
33243FSHAFT , 3RD & 4TH SHIFT FORK
33244FSHAFT,5TH & REVERSE SHIFT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
L=9.9,OD=5
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=14.64
L=21.2
33275FPLUG (FOR SHIFT DETENT BALL)
33281GPIN, LEVER LOCK
33283PIN, REVERSE RESTRICT, NO.1
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283RSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH)
33283SSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH)
33748APIN, SLOTTED SPRING (FOR GEAR SHIFTING ROD END)
33748BCLIP (FOR GEAR SHIFTING ROD END)
sub21576-27010
33748CWASHER, PLATE (FOR GEAR SHIFTING ROD END)
9052310001
main90523-10001
9411040800
main94110-40800
9451100800
main94511-00800
39 parts on this diagram · 2 diagrams in section
