TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

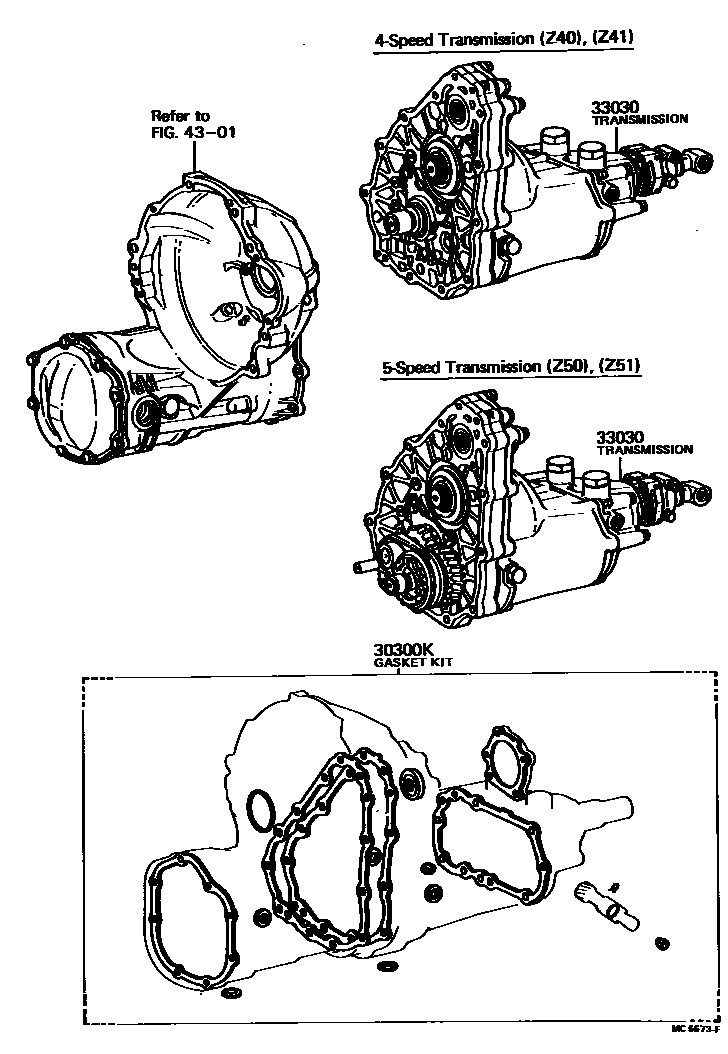

Parts diagram
30300KGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-16010i197901-198204
33030TRANSMISSION UNIT ASSY, MANUAL
main33030-16900i197901-197906
SMG=6
sub33030-16902
sub33311-16011
sub90363-25016
main33030-16901i197901-197906
SMG=6
sub33030-16903
sub33311-16011
sub90363-25016
main33030-16902i197906-198004
SMG=6
main33030-16903i197906-198004
SMG=6
main33030-16904i198008-198204
SMG=6
main33030-16905i198004-198008
SMG=6
sub33030-16902
main33030-16906i198004-198204
SMG=6
sub33030-16903
4301

3 parts on this diagram · 1 diagram in section
