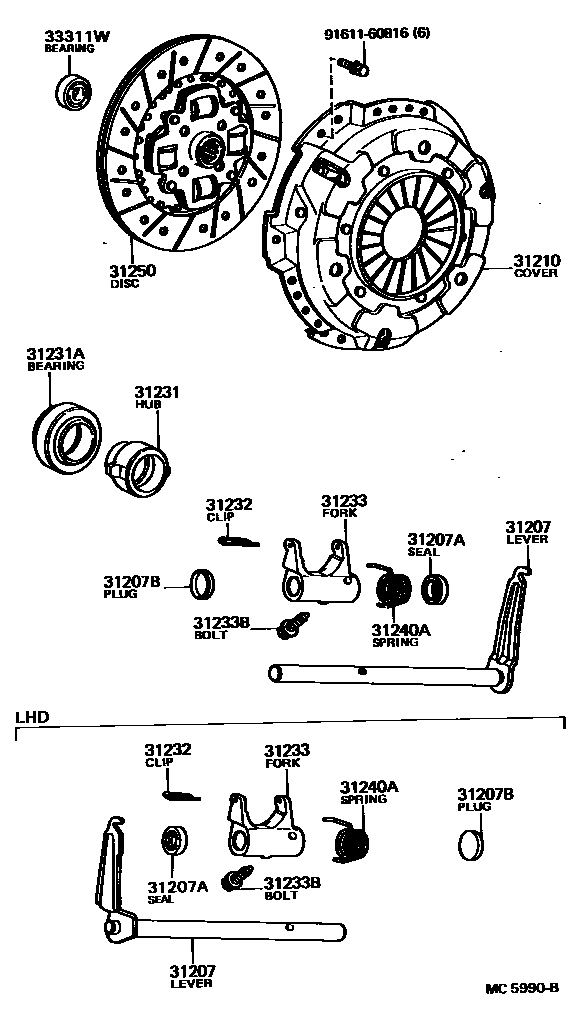

CLUTCH & RELEASE FORK

31207LEVER SUB-ASSY, CLUTCH RELEASE FORK

main31207-16010iAL11..RHD..4F197901-198204

sub31207-16030

sub31249-16010

main31207-16020iAL11..LHD..MTM197901-198204

sub31207-16040

sub31249-16010

main31207-16030iAL11..RHD..4F198204-198204

main31207-16040iAL11..LHD..MTM198204-198204

31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)

main90313-18001iAL11..MTM197901-198204

31207BPLUG(FOR CLUTCH RELEASE FORK LEVER)

main96411-12500iAL11..MTM197901-198204

sub96411-42500

31210COVER ASSY, CLUTCH

main31210-12060iAL11197906-197908

sub31210-12061

main31210-12061iAL11..MTM197908-197910

sub31210-12062

main31210-12062iAL11..MTM197910-198108

sub31210-12063

main31210-12063iAL11..MTM198108-198204

sub31210-12064

main31210-16010iAL11197901-197906

sub31210-12060

31231HUB, CLUTCH RELEASE BEARING

main31231-16010iAL11..MTM197901-198108

sub31231-16020

main31231-16020iAL11..MTM198108-198204

main31231-16030iAL11..MTM198204-198204

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40005iAL11..MTM197901-198002

sub90363-40013

main90363-40013iAL11..MTM198002-198009

sub90363-40019

main90363-40019iAL11..MTM198009-198101

sub90363-40022

main90363-40022iAL11..MTM198101-198204

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-16010iAL11..MTM197901-198204

main31232-16020iAL11..MTM198204-198204

31233FORK, CLUTCH RELEASE

main31233-16010iAL11..MTM197901-198203

main31233-16011iAL11..MTM198203-198204

31233BBOLT(FOR RELEASE FORK & RELEASE LEVER SETTING)

main90109-10026iAL11..MTM197901-198204

sub90109-10079

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90508-32004iAL11..MTM197901-198204

31250DISC ASSY, CLUTCH

main31250-16011iAL11..MTM197901-198108

sub31250-16012

main31250-16012iAL11..MTM198108-198204

sub31250-16013

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAL11..MTM198010-198204

6001 VV C4

main97123-06001iAL11..MTM197901-198010

6001 ZZ C3

9161160816

main91611-60816

13 parts on this diagram · 1 diagram in section
