FUEL PUMP & PIPE

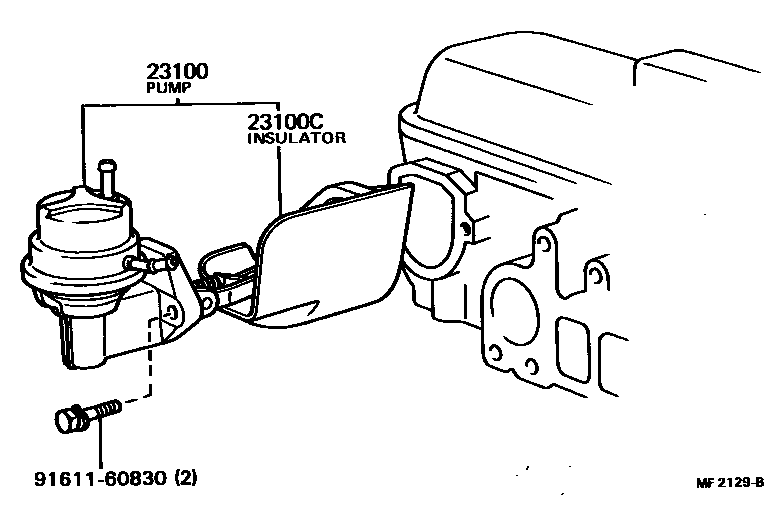

Parts diagram

23100PUMP ASSY, FUEL

main23100-19065i197901-198204

23100CINSULATOR, FUEL PUMP

main23915-15010i197901-198204

9161160830

main91611-60830

3 parts on this diagram · 1 diagram in section
