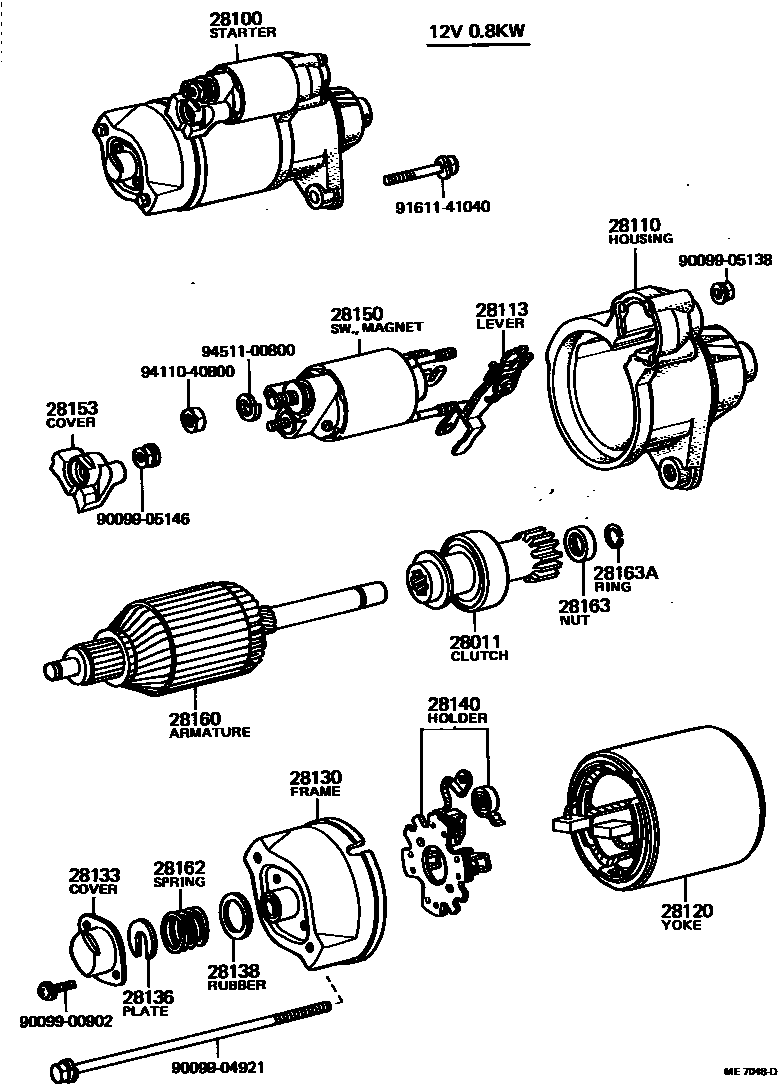

STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 0.8KW
12V 0.9KW
28100STARTER ASSY
12V 0.8KW,12V 0.8KW
12V 1.0KW,12V 0.9KW
28110HOUSING ASSY, STARTER DRIVE
12V 0.8KW
12V 0.8KW
12V 0.9KW
28113LEVER, STARTER PINION DRIVE
12V 0.8KW
28120YOKE ASSY, STARTER
12V 0.8KW
28130FRAME ASSY, STARTER COMMUTATOR END
12V 0.8KW
12V 0.9KW
28133COVER, BEARING(FOR END FRAME)
28136PLATE, STARTER LOCK
12V 0.8KW
28138RUBBER(FOR STARTER BEARING COVER)
12V 0.8KW
28140HOLDER ASSY, STARTER BRUSH
12V 0.8KW
12V 0.9KW
28150SWITCH ASSY, MAGNET STARTER
12V 0.9KW
28153COVER, MAGNET SWITCH
12V 0.8KW
28160ARMATURE ASSY, STARTER
12V 0.8KW
28162SPRING, STARTER BRAKE
12V 0.8KW
28163NUT OR COLLAR, PINION STOP, STARTER
12V 0.8KW
28163ARING, SNAP(FOR STARTER PINION STOP NUT)
12V 0.8KW
9009900902
main90099-00902
9009904921
main90099-04921
9009905138
main90099-05138
9009905146
main90099-05146
9161141040
main91611-41040
9411040800
main94110-40800
9451100800
main94511-00800
23 parts on this diagram · 3 diagrams in section
