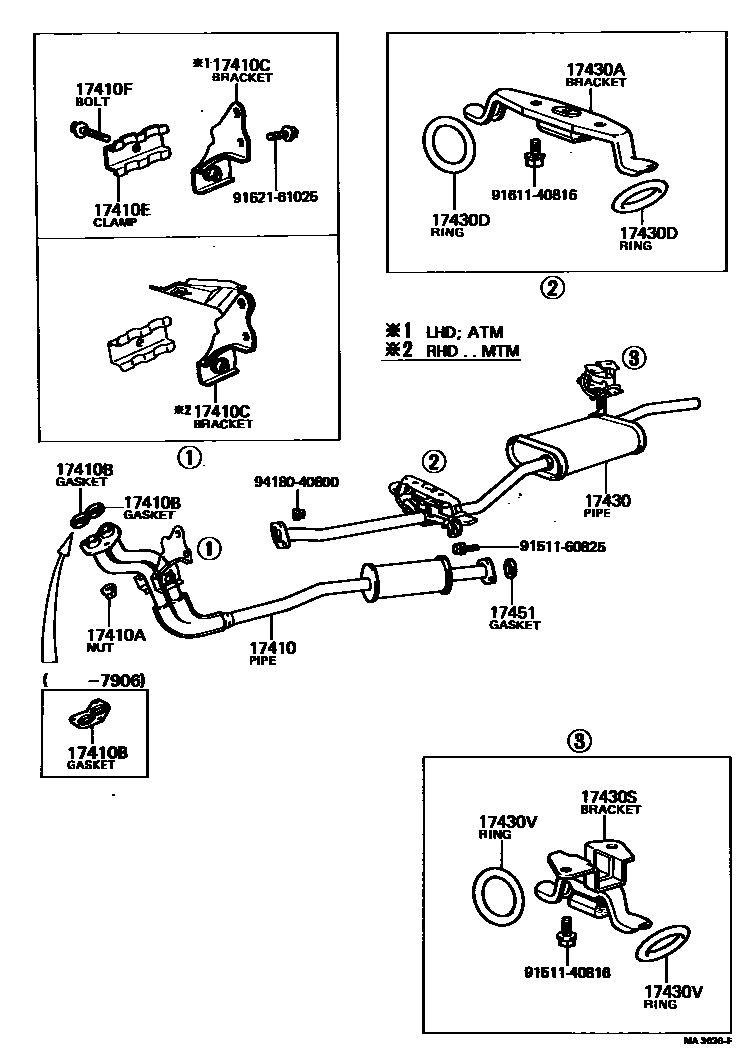

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
9151140816
main91511-40816
9151160825
main91511-60825
9161140816
main91611-40816
9162161025
main91621-61025
9418040800
main94180-40800
17 parts on this diagram · 1 diagram in section
