16268PIPE, WATER BY-PASS, NO.1

main16268-15010i¥1,040197901-198204

sub16268-15011¥1,060

16268FRING, O(FOR WATER BY-PASS PIPE)

main96710-02013i¥240197901-198112

sub96711-24013¥160

main96711-24013i¥160198112-198204

16323HOUSING, WATER INLET

main16323-15010i¥2,820197901-198204

16325GASKET, WATER INLET HOUSING, NO.1

main16325-15010i¥500197901-198107

sub16325-70020¥500

main16325-70020i¥500198107-198112

sub16325-70021¥500

main16325-70021i¥500198112-198204

16331OUTLET, WATER

main16331-14010i¥2,610197906-198204

main16331-15010i¥2,610197901-197906

16331ATHERMOSTAT

main90916-03046i¥1,740197901-198204

*WAX 82-95,*WAX 82-95,FUJI-THOMSON

16331BPLUG(FOR WATER OUTLET)

main90344-53015i¥300197901-197906

16341GASKET, WATER OUTLET

main16341-15010i¥320197901-198112

sub16341-15011¥340

main16341-15011i¥340198204-198204

sub16341-15012¥320

16361FAN

main16361-13010i¥4,000197906-198204

4 BLADES

main16361-14010i197901-197906

4 BLADES

16361ABELT, V(FOR FAN & ALTERNATOR)

main99321-50985i¥760197901-198204

L=985

16363MOTOR, COOLING FAN

main16363-15010i197901-197906

main16363-15020i¥22,000197906-198008

main16363-15050i¥25,400198008-198109

sub16363-15051¥22,100

main16363-15051i¥22,100198109-198204

16381BAR, FAN BELT ADJUSTING

main16381-14010i197901-198108

12V 30A ALTERNATOR

main16381-15011i¥1,340197901-198108

12V 40A & 50A ALTERNATOR

sub16381-15030¥1,350

main16381-15011i¥1,340198108-198203

sub16381-15030¥1,350

main16381-15030i¥1,350198203-198204

16400RADIATOR ASSY

main16400-14010i¥54,100197906-198204

main16400-14020i¥66,800197908-198204

main16400-15010i197901-197906

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i¥500197901-198204

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i¥240197901-198110

sub96711-19007¥180

main96711-19007i¥180198110-198204

16401CAP SUB-ASSY, RADIATOR

main16401-36011i¥1,170197901-198204

16470TANK ASSY, RADIATOR RESERVE

main16470-15010i¥2,530197901-197902

sub16470-15011¥2,910

main16470-15011i¥2,910197902-197906

sub16470-15012¥2,920

main16470-15012i¥2,920197906-198204

sub16470-26090¥2,290

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12002i197901-198008

L=600(*H,L=260)

sub90445-12043¥480

main90445-12065i¥800197901-197906

L=600(*H,L=580)

sub90445-12078¥580

main90445-12078i¥580197906-198204

L=600

main90445-12100i¥500198008-198204

L=600(*H,L=270)

sub90445-12043¥480

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i¥100197901-198204

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main85361-16010i197901-198204

16471CAP SUB-ASSY, RESERVE TANK

main16471-15010i197901-197902

sub16471-15011

main16471-15011i197902-197906

sub16471-15012

main16471-15012i197906-198204

main85037-16010i197901-197902

main85339-16010i197902-198204

16472HOSE, BREATHER

main85338-16010i197902-198204

sub85338-12010

16571HOSE, RADIATOR, INLET

main16571-15010i¥1,880197901-197906

main16571-15030i¥1,890197906-198008

main16571-15050i¥1,900198008-198204

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001i¥330197901-198008

WATER OUTLET SIDE

sub90467-33003¥350

main90467-34001i¥330198008-198204

sub90467-33003¥350

main96111-10420i¥150197901-198008

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16572-15010i¥1,630197901-198008

main16572-15040i¥1,900198008-198204

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10400i¥140197901-198204

WATER INLET SIDE

main96111-10420i¥150197901-198204

RADIATOR SIDE

16701SHROUD SUB-ASSY, FAN

main16711-14010i197901-197906

main16711-15030i¥7,700197906-198008

main16711-15050i198008-198204

9009900905

main90099-00905

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009919228

main90099-19228

9009919244

main90099-19244

9011906126

main90119-06126¥70

9011908028

main90119-08028¥170

9017906070

main90179-06070¥180

9151160820

main91511-60820¥130

9165640616

main91656-40616¥100

9165640818

main91656-40818¥140

9411540500

main94115-40500¥110

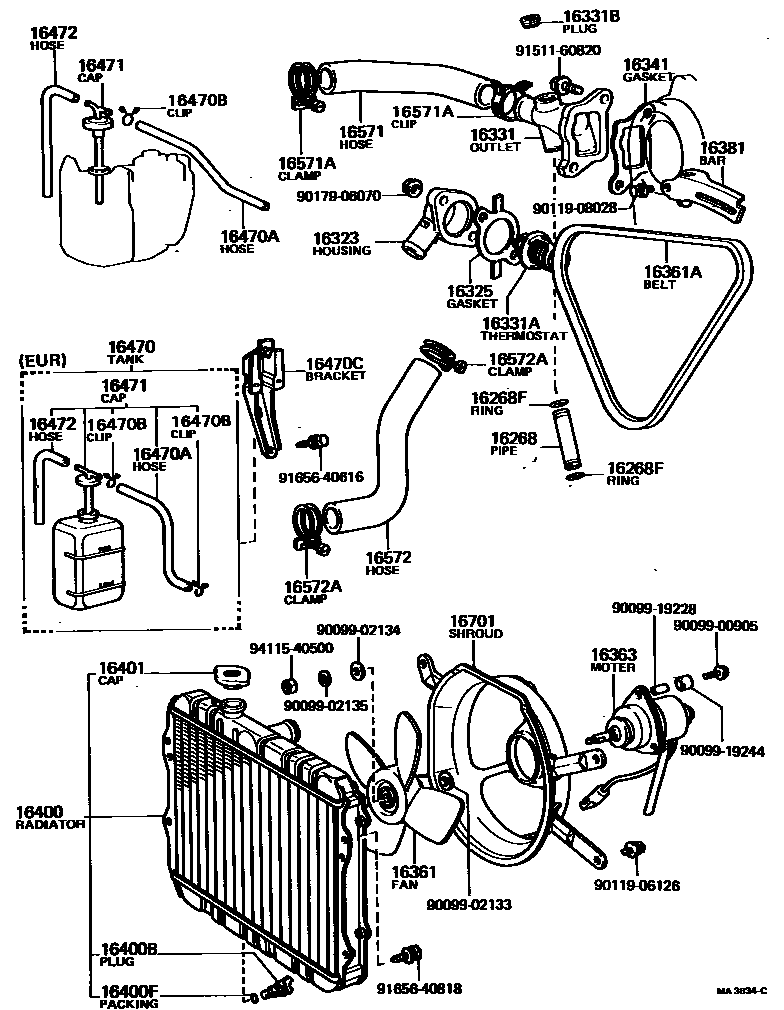

RADIATOR & WATER OUTLET
