TIMING BELT

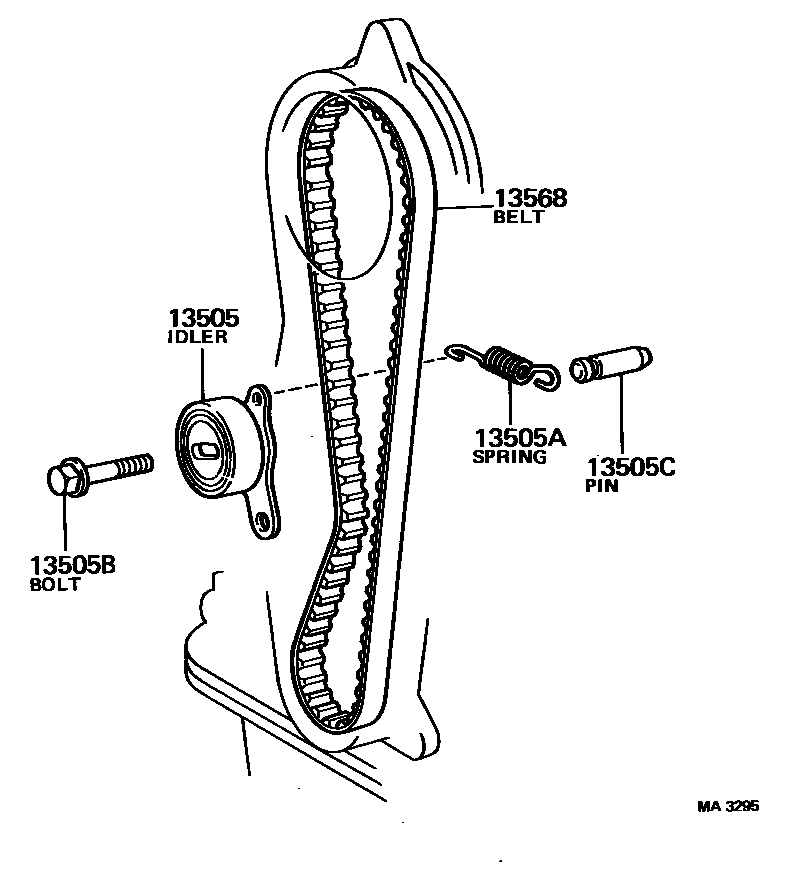

Parts diagram
13505IDLER SUB-ASSY, TIMING BELT, NO.1
main13505-15020i197901-198007
sub13505-15040
main13505-15040i198007-198204
sub13505-15041
13505ASPRING, TENSION(FOR IDLER)
main90506-14016i197901-198204
sub90507-18017
13505BBOLT, FLANGE (FOR IDLER)
main91511-61040i198104-198204
main91511-61045i197905-198104
sub91512-61045
main91511-61050i197901-197905
13505CPIN(FOR IDLER SPRING TENSION)
main90249-06006i197901-198204
13568BELT, TIMING
main13568-15010i197901-198204
sub13568-19125

5 parts on this diagram · 1 diagram in section
