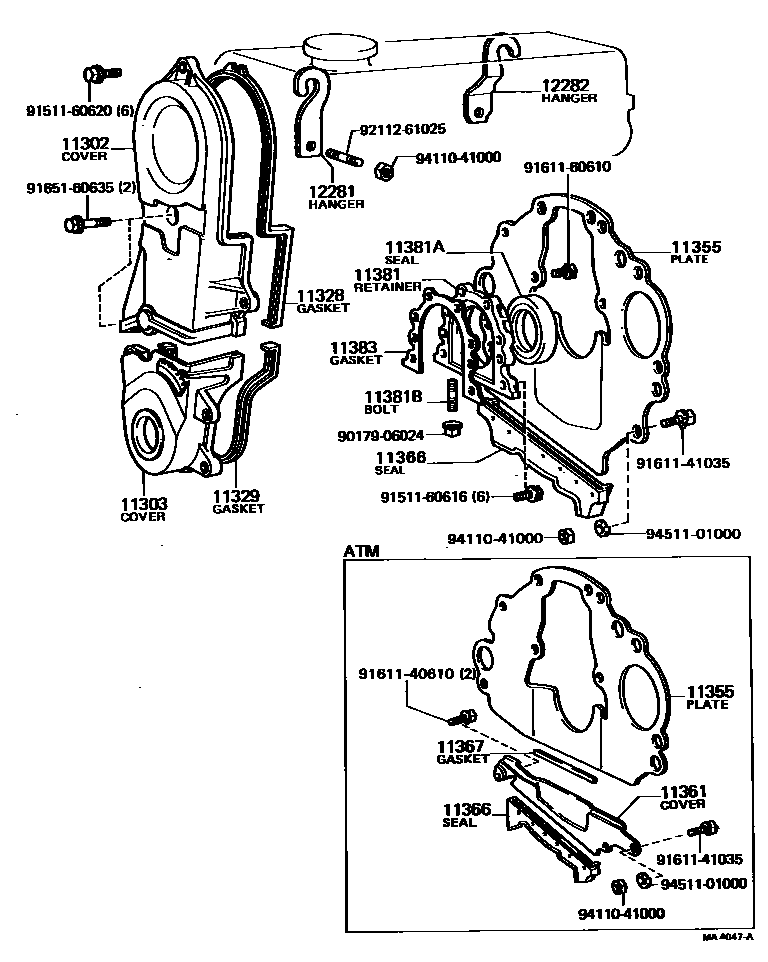

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15010i2A..AL11197901-198204

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15010i2A..AL11197901-198204

sub11303-15020

main11303-15020i2A..AL11198204-198204

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-15010i2A..AL11197901-198204

11329GASKET, TIMING GEAR REAR COVER

main11329-15010i2A..AL11197901-198204

11355PLATE, REAR END

main11355-15010i2A..AL11..MTM197901-198204

main11355-15040i2A..AL11..3FC197908-198204

11361COVER, FLYWHEEL HOUSING UNDER

main11361-15010i2A..AL11..3FC197908-198204

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-15010i2A..AL11..MTM197901-198204

main11366-15020i2A..AL11..3FC197908-198204

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15010i2A..AL11..3FC197908-198204

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i2A..AL11197901-198204

11381ASEAL, ENGINE REAR OIL

main90311-70001i2A..AL11197901-198201

HTC 70 92 12

sub90311-70004

main90311-70004i2A..AL11198201-198204

sub90311-70007

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main92122-60612i2A..AL11197901-198204

L=21,S=9&9

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i2A..AL11197901-198204

sub11383-15011

12281HANGER, ENGINE, NO.1

main12281-15010i2A..AL11197901-198204

12282HANGER, ENGINE, NO.2

main12282-15010i2A..AL11197901-198204

sub12282-15020

9017906024

main90179-06024

9151160616

main91511-60616

9151160620

main91511-60620

9161140610

main91611-40610

9161141035

main91611-41035

9161160610

main91611-60610

9165160635

main91651-60635

9211261025

main92112-61025

9411041000

main94110-41000

9451101000

main94511-01000

24 parts on this diagram · 1 diagram in section
