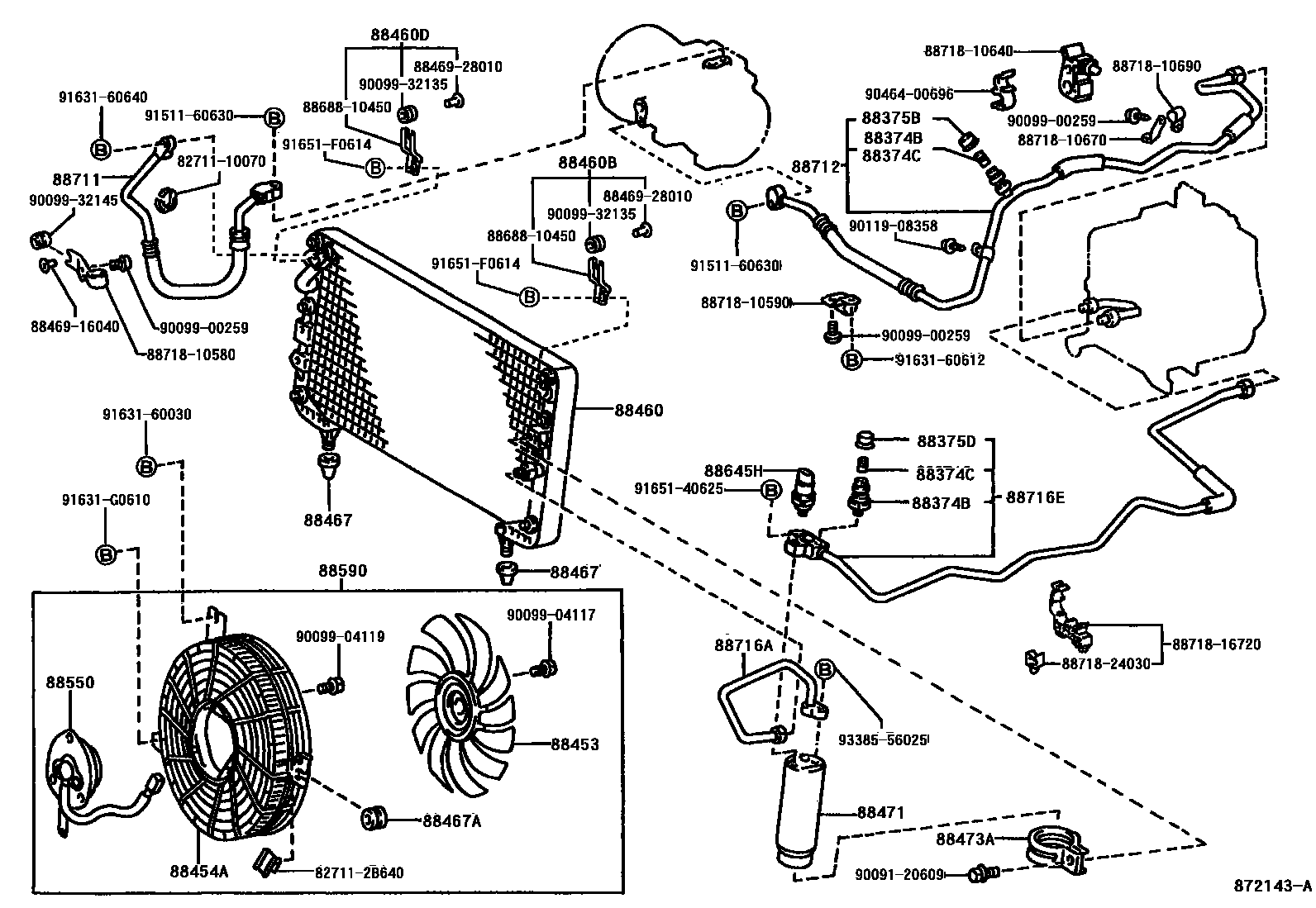

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPT 0002 1MAKER OPT 0003 1DEALER OPT 0004 1DEALER OPT 0005 1

88374BVALVE, SERVICE, NO.1

main88374-30010iEP91199601

88374CVALVE, SERVICE, NO.2

main88374-30010iEP91199601

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iEP91199601

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iEP91199601

88453FAN, COOLING (FOR CONDENSER)

main88453-10022iEP91199601

MANUAL AIR CONDITIONER

main88454-10100iEP91..LHD199712

88454ASHROUD, FAN

main88454-10100iEP91199601

88460CONDENSER ASSY, COOLER

main88460-10240iEP91..RHD199601

main88460-10250iEP91..LHD199601

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-10420iEP91..RHD199712

MAKER OPTION

sub88688-10450

sub88469-28010

sub90099-32135

main88688-10420iEP91199601-199703

MANUAL AIR CONDITIONER

sub88688-10450

sub88469-28010

sub90099-32135

main88688-10450iEP91199601-199710

DEALER KIT MANUAL AIR CONDITIONER

main88688-10450iEP91..RHD199710

DEALER OPTION

main88688-10500iEP91..RHD199703-199712

MANUAL AIR CONDITIONER

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-10420iEP91..RHD199712

MAKER OPTION

sub88688-10450

sub88469-28010

sub90099-32135

main88688-10420iEP91199601-199703

MANUAL AIR CONDITIONER

sub88688-10450

sub88469-28010

sub90099-32135

main88688-10450iEP91..LHD199601-199710

DEALER KIT MANUAL AIR CONDITIONER

main88688-10450iEP91..RHD199710

DEALER OPTION

main88688-10500iEP91..RHD199703-199712

MANUAL AIR CONDITIONER

88467CUSHION, COOLER CONDENSER, NO.1

main88467-24050iEP91199601

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-10040iEP91199601

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iEP91199601

88473AHOLDER, RECEIVER

main88472-10200iEP91..LHD199601

main88473-20070iEP91..RHD199601

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12150iEP91199601

88590BLOWER ASSY, W/SHROUD

main88590-10040iEP91199601

88645HSWITCH, PRESSURE NO.1

main88645-60030iEP91199601

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-10260iEP91..RHD199601

main88711-10270iEP91..LHD199601

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-10430iEP91..RHD199601

main88712-10440iEP91..LHD199601

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-10860iEP91..RHD199601

main88716-10870iEP91..LHD199601

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-10890iEP91..RHD199601

DEALER KIT MANUAL AIR CONDITIONER

main88716-1C010iEP91..RHD199601

MANUAL AIR CONDITIONER

main88716-1C020iEP91..LHD199601

MANUAL AIR CONDITIONER

main88716-1C040iEP91..LHD199601

DEALER KIT MANUAL AIR CONDITIONER

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846916040SWITCH, PRESSURE CONTROL

main88469-16040

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8868810450BRACKET, COOLER DIAPHRAGM

main88688-10450

8871810580PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10580

8871810590PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10590

8871810640PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10640

8871810670PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10670

8871810690PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10690

8871816720PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16720

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

9009120609

main90091-20609

9009900259

main90099-00259

9009904117

main90099-04117

9009904119

main90099-04119

9009932135

main90099-32135

9009932145

main90099-32145

9011908358

main90119-08358

9046400696

main90464-00696

9151160630

main91511-60630

9163160030

main91631-60030

9163160612

main91631-60612

9163160640

main91631-60640

91631G0610

main91631-G0610

9165140625

main91651-40625

91651F0614

main91651-F0614

9338556025

main93385-56025

48 parts on this diagram · 5 diagrams in section
