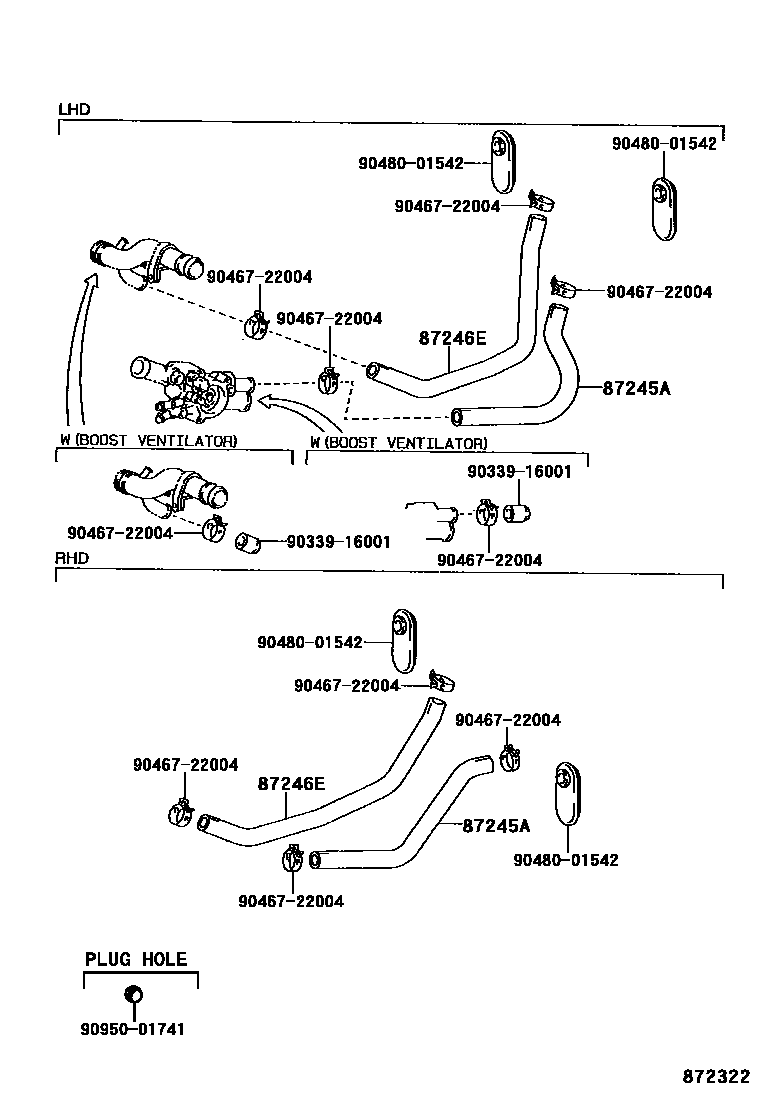

HEATING & AIR CONDITIONING - WATER PIPING

87245AHOSE, HEATER WATER, INLET A

main87245-10410iEP91..RHD199601

main87245-10440iEP91..LHD199601

87246EHOSE, HEATER WATER, OUTLET E

main87245-16411iEP91..LHD199601

main87245-16470iEP91..RHD199601

9033916001

main90339-16001

9046722004

main90467-22004

9048001542

main90480-01542

9095001741

main90950-01741

6 parts on this diagram · 1 diagram in section
