HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

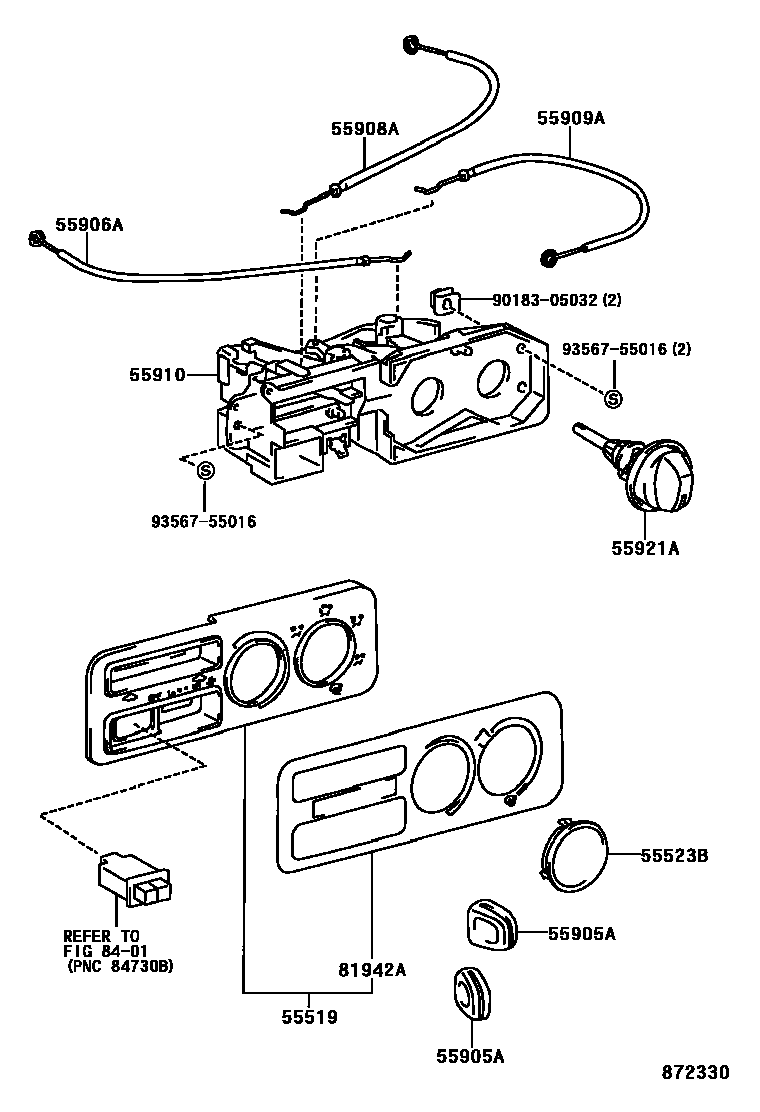

Parts diagram

55519PLATE, HEATER CONTROL NAME

main55519-10190i¥3,950199601-199712

sub55519-10250¥3,950

main55519-10240i¥3,950199601-199712

BOOST VENTILATOR

main55519-10250i¥3,950199712

main55519-10270i¥3,950199712

BOOST VENTILATOR

sub55519-16270¥3,950

main55519-16090i¥3,950199601-199712

main55519-16220i¥3,950199712

main55519-16230i¥3,950199712

MANUALE AIR CONDITIONER

sub55519-16220¥3,950

55523BCOVER, HEATER CONTROL OPENING

main55523-10050i¥620199601

55905AKNOB, HEATER CONTROL

main55905-89115i¥260199601

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-16120i¥720199601

main55906-16130i¥720199601

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-10110i¥850199712

main55908-16120i¥850199601-199712

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-16130i¥850199601

main55909-16140i¥850199601

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-10450i¥5,200199601-199712

main55910-10460i¥6,000199601-199712

BOOST VENTILATOR

main55910-10480i¥5,200199712

main55910-10490i¥6,000199712

COOLER BOOST VENTILATOR

main55910-16270i¥5,200199601-199712

main55910-16310i¥5,200199712

sub55910-16270¥5,200

55921ARETAINER, HEATER CONTROL

main55921-10040i¥1,130199601-199712

main55921-10050i¥1,130199601-199712

BOOST VENTILATOR

main55921-16010i¥1,120199712

main55921-16020i¥1,120199712

BOOST VENTILATOR

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-10090i¥1,390199601-199708

main81942-10091i¥1,360199708-199712

main81942-10100i¥1,390199601-199712

BOOST VENTILATOR

main81942-16260i¥1,360199601-199708

sub81942-16261¥1,360

main81942-16261i¥1,360199708-199712

8401

9018305032

main90183-05032¥130

9356755016

main93567-55016¥110

12 parts on this diagram · 2 diagrams in section
