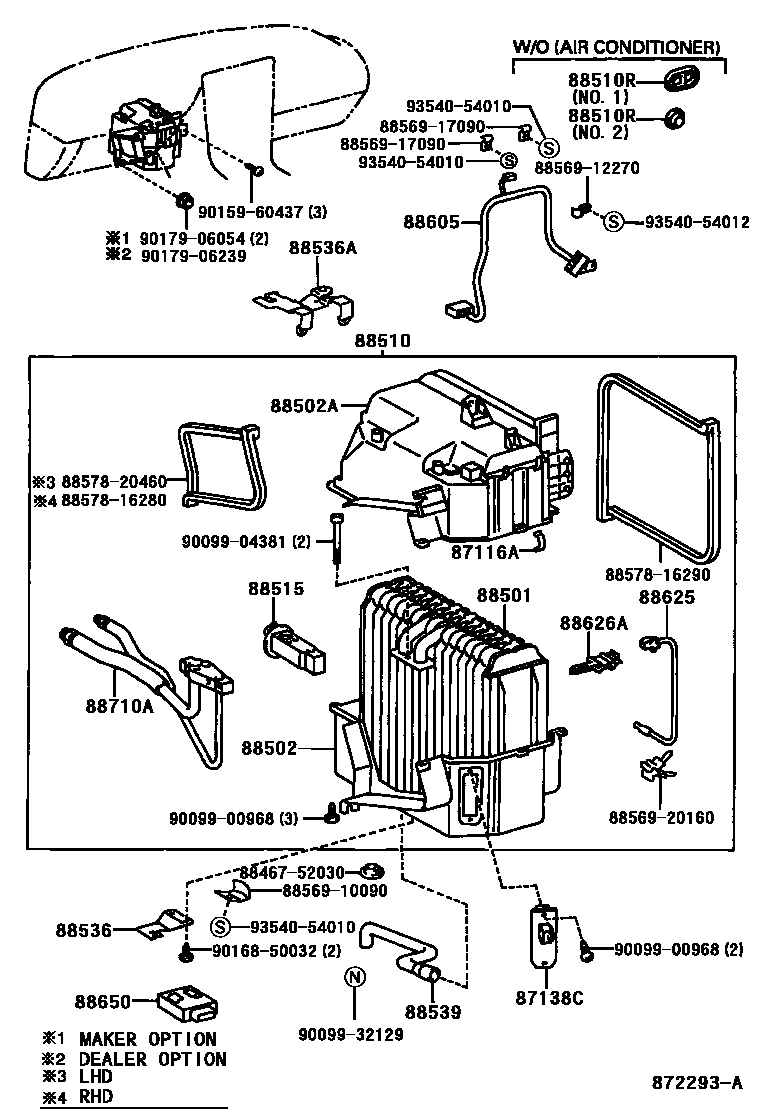

HEATING & AIR CONDITIONING - COOLER UNIT

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010i199601

87138CRESISTOR, BLOWER

main87138-10130i199601

main87138-10141i199601

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10140i199601

DEALER OPTION

main88501-10150i199601

DEALER OPTION

main88501-16160i199712

MAKER OPTION

main88501-16170i199712

MAKER OPTION

88502CASE SUB-ASSY, COOLING UNIT

main88502-10040i199601-199712

DEALER KIT MANUAL AIR CONDITIONER

main88502-10060i199601

main88502-10070i199601

MANUAL AIR CONDITIONER

main88502-10080i199712

MAKER OPTION

main88502-10090i199712

MAKER OPTION

88502ACASE SUB-ASSY, COOLING UNIT

main88502-10040i199601

MANUAL AIR CONDITIONER

main88502-10050i199601

main88502-10070i199601-199712

DEALER KIT MANUAL AIR CONDITIONER

main88521-10050i199712

MAKER OPTION

main88521-10060i199712

MAKER OPTION

88510UNIT ASSY, COOLER

main88510-10510i199601

DEALER OPTION

main88510-10640i199601

DEALER OPTION

main88510-10720i199712

MAKER OPTION

main88510-10730i199712

MAKER OPTION

88510RGROMMET (FOR COOLER UNIT)

main90480-24008i199601-199901

NO.1

sub90099-32137

main90480-26022i¥0199601-199901

NO.2

88515VALVE, COOLER EXPANSION

main88515-16050i¥10,500199712-199811

MAKER OPTION

sub88515-48040¥10,200

main88515-16060i¥10,200199811

MAKER OPTION

sub88515-28160¥10,200

main88515-20100i¥10,300199601-199712

sub88515-22240¥10,200

main88515-20100i¥10,300199712

DEALER OPTION

sub88515-22240¥10,200

88536BRACKET, COOLING UNIT, NO.1

main88688-10380i199601

main88688-10390i199601

88536ABRACKET, COOLING UNIT, NO.2

main88688-10400i199601-199712

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10090i199601

main88539-10100i199601

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1M260i199601

W(POWER STEERING & MANUAL AIR CONDITIONER);W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

main88605-1M270i199601

MANUAL AIR CONDITIONER OR DEALER KIT MANUAL AIR CONDITIONER

main88605-1M320i199601

W(POWER STEERING & MANUAL AIR CONDITIONER);W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

main88605-1M330i199601

MANUAL AIR CONDITIONER OR DEALER KIT MANUAL AIR CONDITIONER

main88605-1M450i199712

W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

main88605-1M480i199712

MANUALE AIR CONDITIONER

main88605-1M490i199712

W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

main88605-1M500i199712

MANUALE AIR CONDITIONER

88625THERMISTOR, COOLER, NO.1

main88625-16210i199601-199712

main88625-16210i199712

MAKER OPTION

main88625-24050i199712

DEALER OPTION

main88625-24050i199601-199712

88626AHOLDER, THERMISTOR

main88626-28010i199601

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10470i199601

W(POWER STEERING & MANUAL AIR CONDITIONER);W(POWER STEERING & DEALER KIT MANUAL AIR CONDITIONER)

main88650-1A890i199601

MANUAL AIR CONDITIONER OR DEALER KIT MANUAL AIR CONDITIONER

88710ATUBE ASSY, AIR CONDITIONER

main88710-10130i¥7,900199803

MAKER OPTION

sub88710-16380¥7,900

main88710-10140i¥7,900199803

MAKER OPTION

sub88710-16390¥7,900

main88710-10150i¥10,200199803

main88710-10160i¥10,300199803

main88710-16250i¥10,300199601-199803

main88710-16260i¥10,300199601-199803

main88710-16380i¥7,900199712-199803

MAKER OPTION

main88710-16390i¥7,900199712-199803

MAKER OPTION

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8856910090CLAMP (FOR COOLER RELAY)

main88569-10090

8856912270CLAMP (FOR COOLER RELAY)

main88569-12270

8856917090CLAMP (FOR COOLER RELAY)

main88569-17090

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857816280PAKING, COOLER AIR DUCT

main88578-16280

8857816290PAKING, COOLER AIR DUCT

main88578-16290

8857820460PAKING, COOLER AIR DUCT

main88578-20460

9009900968

main90099-00968

9009904381

main90099-04381

9009932129

main90099-32129

9015960437

main90159-60437¥120

9016850032

main90168-50032¥120

9017906054

main90179-06054¥100

9017906239

main90179-06239¥140

9354054010

main93540-54010¥120

9354054012

main93540-54012¥90

33 parts on this diagram · 3 diagrams in section
