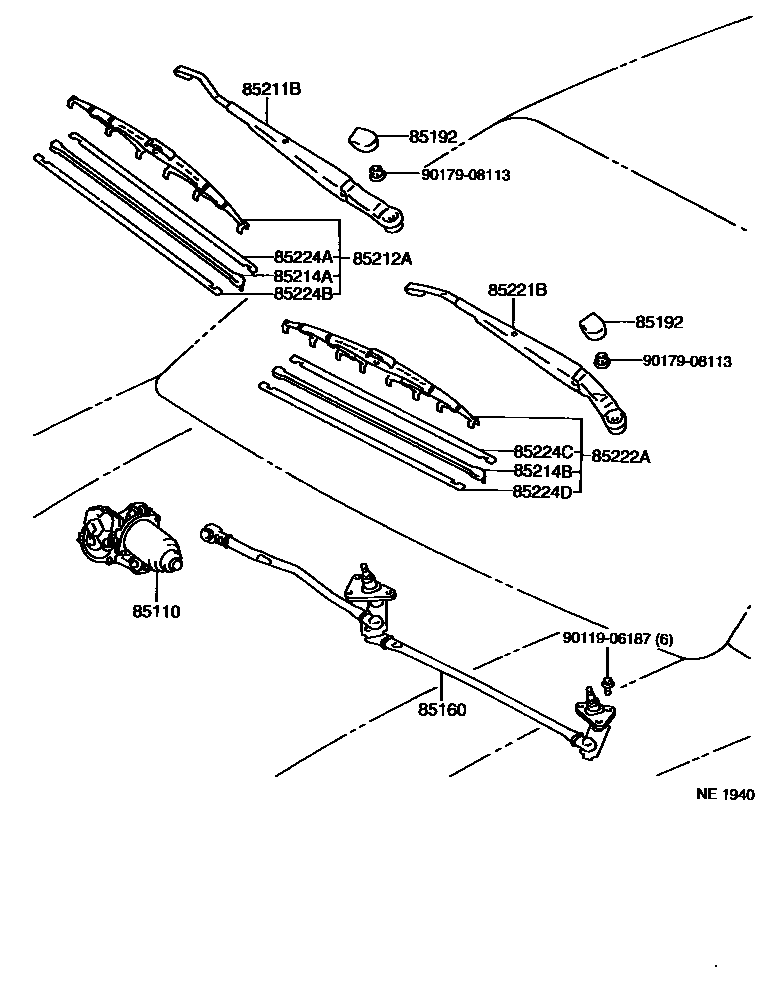

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-10400iEP91..RHD199601

main85110-10410iEP91..LHD199601

85160LINK ASSY, WINDSHIELD WIPER

main85150-10370iEP91..RHD199601

main85150-10380iEP91..LHD199601

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iEP91199601

85211BARM, FRONT WIPER, RH

main85211-10120iEP91..LHD199601

main85211-10130iEP91..RHD199601

85212ABLADE, FR WIPER, RH

main85212-10140iEP91..LHD199601

sub85212-10141

main85212-10150iEP91..RHD199601

sub85212-10151

85214ARUBBER, WIPER, RH

main85214-10080iEP91..RHD199601

sub85214-53050

main85214-10120iEP91..LHD199601

sub85214-51030

85214BRUBBER, WIPER, LH

main85214-10090iEP91..RHD199601

sub85214-51030

main85214-10110iEP91..LHD199601

sub85214-53050

85221BARM, FRONT WIPER, LH

main85221-10120iEP91..RHD199601

main85221-10140iEP91..LHD199601

85222ABLADE, FR WIPER, LH

main85222-10230iEP91..RHD199601

sub85222-10231

main85222-10250iEP91..LHD199601

sub85222-10251

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10180iEP91..RHD199601

main85224-35060iEP91..LHD199601

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-10180iEP91..RHD199601

main85224-35060iEP91..LHD199601

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10190iEP91..RHD199601

main85224-10210iEP91..LHD199601

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10190iEP91..RHD199601

main85224-10210iEP91..LHD199601

9011906187

main90119-06187

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section
