METER

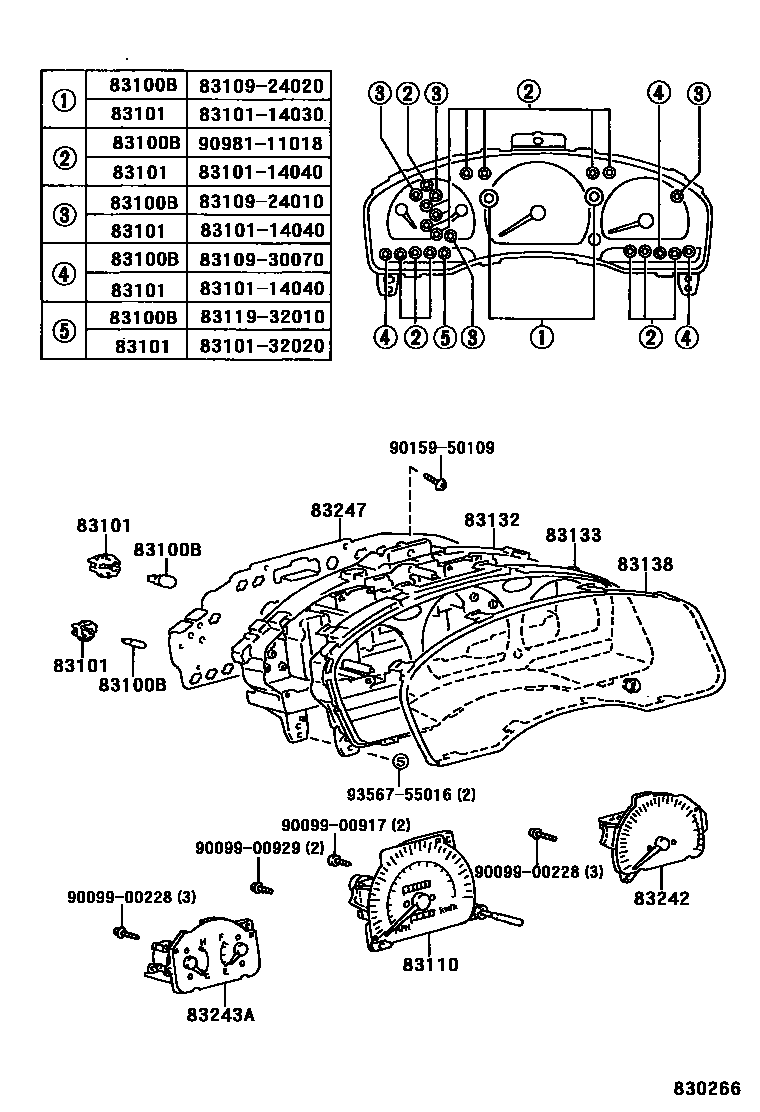

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-24010×3i199601-199712

12V 1.4W,GREEN CAP

main83109-24020×4i199712

12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION

main83109-30070i199601-199712

14V 2.0W,W/O SOCKET

main83119-32010i199601-199712

14V 3.0W

main90981-11018×9i199601-199712

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×2i199712

TYPE D OR TYPE G:REFER TO ILLUSTRATION

main83101-14040×13i199601-199712

BULB:12V 1.4W

main83101-32020×2i199712

TYPE E OR TYPE H:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-10020i199601-199707

W(TACHOMETER)

main83220-10021i199707

W(TACHOMETER)

main83220-10030i199601-199707

W(TACHOMETER)

main83220-10031i199707

W(TACHOMETER)

main83220-10060i199601-199707

main83220-10061i199707

main83220-10070i199601-199707

main83220-10071i199707

83132CASE, COMBINATION METER

main83841-10050i199601-199712

W(TACHOMETER)

main83841-10190i199601-199712

main83841-10470i199712

main83841-10550i199712

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83811-10010i199601

W(TACHOMETER)

main83811-10120i199601

main83811-10250i199712

W(PLATING MOULDING)

main83811-10600i199712

W(TACHOMETER & PLATING MOULDING)

83138GLASS, SPEEDOMETER

main83138-16630i199601

83242TACHOMETER ASSY, ENGINE

main83881-10050i199601

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-10050i199601

W(TACHOMETER)

main83882-10100i199601

83247PLATE, METER CIRCUIT

main83861-10050i199601-199712

W(TACHOMETER)

main83861-10190i199601-199712

main83861-10470i199712

main83861-10550i199712

W(TACHOMETER)

9009900228

main90099-00228

9009900917

main90099-00917

9009900929

main90099-00929

9015950109

main90159-50109

9356755016

main93567-55016

14 parts on this diagram · 5 diagrams in section
