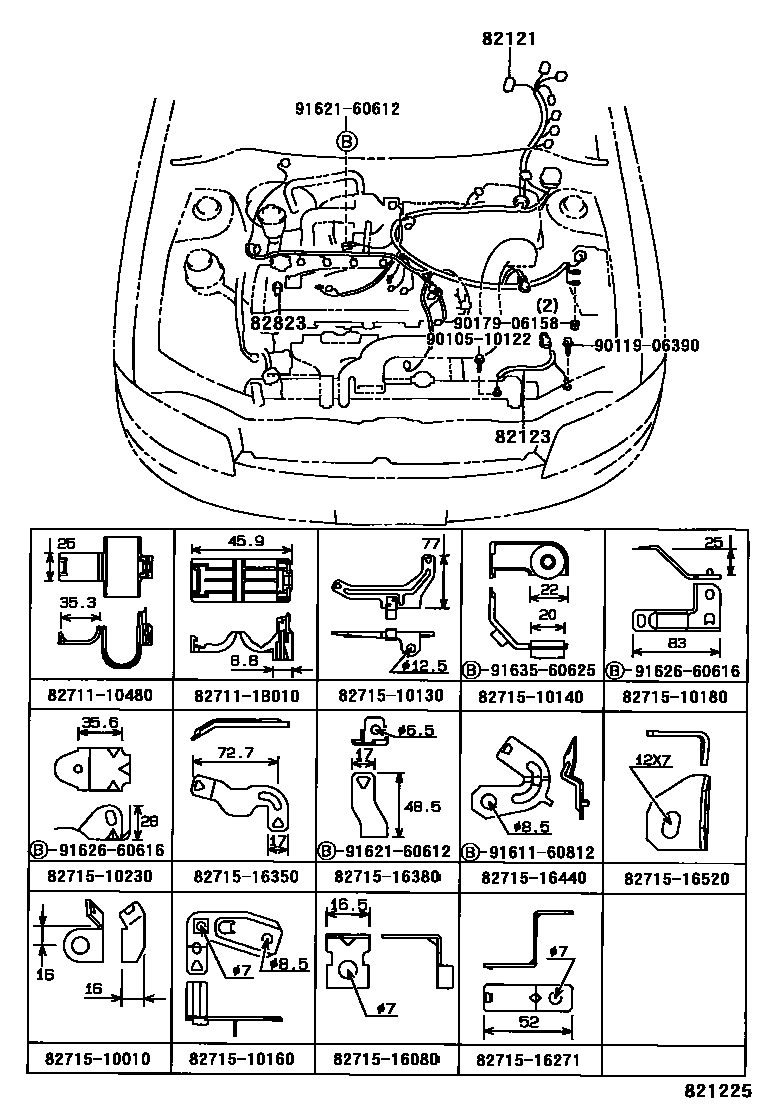

WIRING & CLAMP

0001 1ENGINE WIRE 0002 1E/G ROOM WIRE 0003 1INSTRUMENT PANEL WIRE 0004 1INSTRUMENT PANEL WIRE 0005 1ROOF WIRE 0006 1FLOOR WIRE 0007 1CABLE BOND

82121WIRE, ENGINE

main82121-1C190iEP91..RHD199601-199704

main82121-1C192iEP91..RHD199704-199712

main82121-1C200iEP91..LHD199601-199704

main82121-1C202iEP91..LHD199704-199712

main82121-1C310iEP91..RHD..5F199712

main82121-1C320iEP91..RHD..3FC199712

main82121-1C330iEP91..LHD..5F199712

main82121-1C340iEP91..LHD..3FC199712

82123WIRE, ENGINE, NO.3

main82123-10140iEP91..3FC199601

main82123-10150iEP91..5F199601

82823CAP, TERMINAL, NO.1

main82823-22050iEP91199601

8271110480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10480

827111B010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1B010

8271510010BRACKET,WIRING HARNESS CLAMP

main82715-10010

8271510130BRACKET,WIRING HARNESS CLAMP

main82715-10130

8271510140BRACKET,WIRING HARNESS CLAMP

main82715-10140

8271510160BRACKET,WIRING HARNESS CLAMP

main82715-10160

8271510180BRACKET,WIRING HARNESS CLAMP

main82715-10180

8271510230BRACKET,WIRING HARNESS CLAMP

main82715-10230

8271516080BRACKET,WIRING HARNESS CLAMP

main82715-16080

8271516271BRACKET,WIRING HARNESS CLAMP

main82715-16271

8271516350BRACKET,WIRING HARNESS CLAMP

main82715-16350

8271516380BRACKET,WIRING HARNESS CLAMP

main82715-16380

8271516440BRACKET,WIRING HARNESS CLAMP

main82715-16440

8271516520BRACKET,WIRING HARNESS CLAMP

main82715-16520

9010510122

main90105-10122

9011906390

main90119-06390

9017906158

main90179-06158

9161160812

main91611-60812

9162160612

main91621-60612

9162660616

main91626-60616

9163560625

main91635-60625

24 parts on this diagram · 7 diagrams in section
