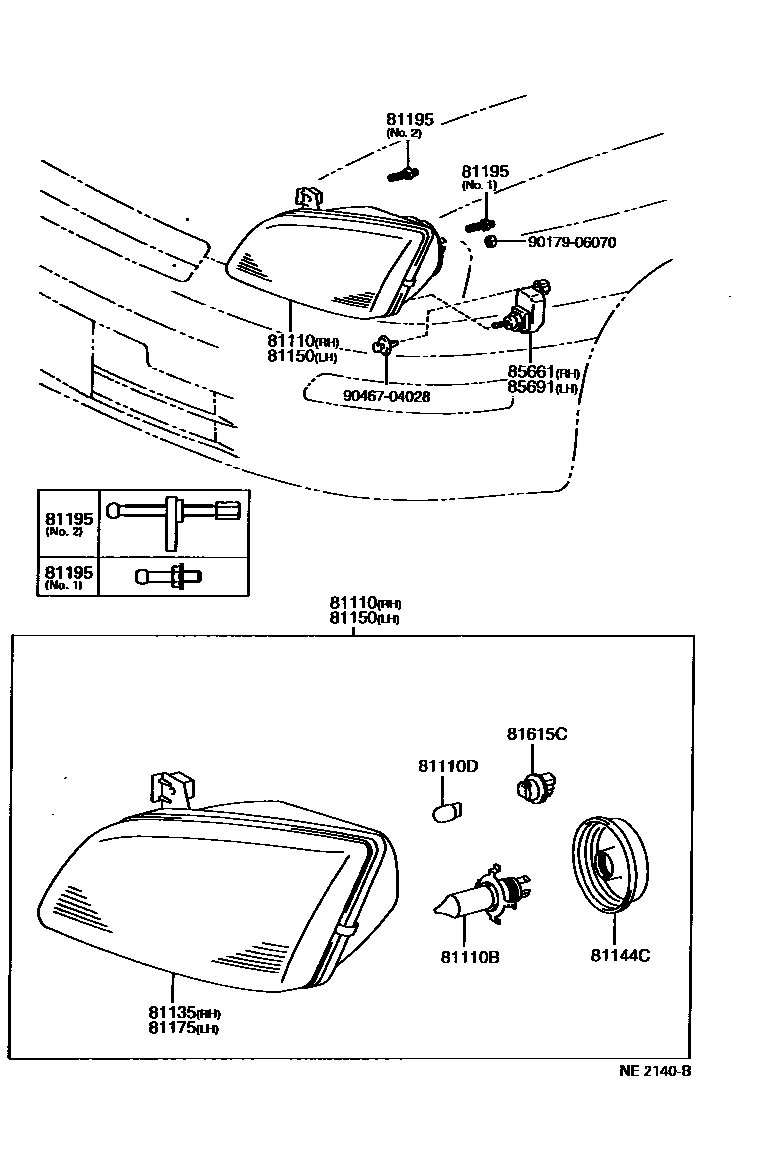

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-10810iEP91..RHD199601

main81110-10820iEP91..LHD199601

RH TRAFFIC

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004iEP91199601

12V 60/55W,*HAL *WH

sub90981-13055

81110DBULB(FOR HEADLAMP, NO.2)

main99132-12050iEP91199601

12V 5W

81135UNIT ASSY, HEADLAMP, RH

main81130-10810iEP91..RHD199601

main81130-10820iEP91..LHD199601

RH TRAFFIC

81144CCOVER, HEADLAMP SOCKET

main81139-10840iEP91199601-199712

sub90075-99034

main90075-65008iEP91..RHD199603-199712

main90075-99034iEP91199712

81150HEADLAMP ASSY, LH

main81150-10770iEP91..RHD199601

main81150-10780iEP91..LHD199601

RH TRAFFIC

81175UNIT ASSY, HEADLAMP, LH

main81170-10770iEP91..RHD199601

main81170-10780iEP91..LHD199601

RH TRAFFIC

81195SCREW, HEADLAMP

main81195-10040iEP91199601

NO.2

main81195-10060iEP91199601

NO.1

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60001iEP91199601

85661MOTOR, HEADLAMP LEVELING, RH

main85661-10020iEP91199601

85691MOTOR, HEADLAMP LEVELING, LH

main85691-10020iEP91199601

9017906070

main90179-06070

9046704028

main90467-04028

13 parts on this diagram · 1 diagram in section
