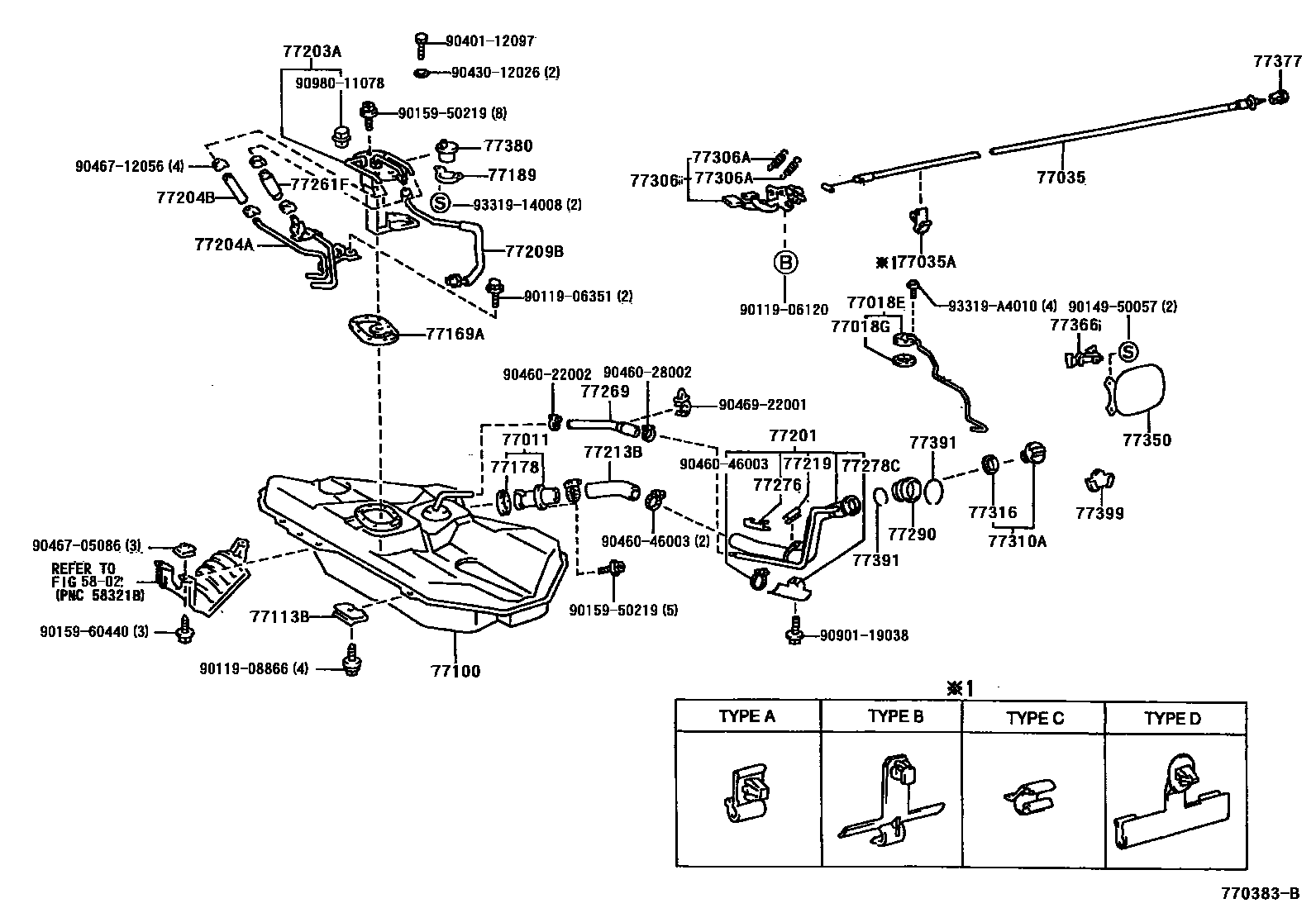

FUEL TANK & TUBE
5802
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018GGASKET, FUEL TANK EVAP/VENT TUBE
sub77179-26011
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
TYPE A
TYPE B
TYPE C
77113BPLATE, FUEL TANK SIDE
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77189RETAINER, FUEL CHECK VALVE
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
W(3POINT ELR SEAT BELT)
W(3POINT ELR/ALR SEAT BELT)
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
L=110
77269TUBE, FUEL CONNECTING
77276PROTECTOR, FUEL HOSE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77310ACAP ASSY, FUEL TANK
sub77310-12140
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77399HANGER, FUEL TANK CAP
9011906120
main90119-06120
9011906351
main90119-06351
9011908866
main90119-08866
9014950057
main90149-50057
9015950219
main90159-50219
9015960440
main90159-60440
9040112097
main90401-12097
9043012026
main90430-12026
9046022002
main90460-22002
9046028002
main90460-28002
9046046003
main90460-46003
9046705086
main90467-05086
9046712056
main90467-12056
9046922001
main90469-22001
9090119038
main90901-19038
9098011078
main90980-11078
9331914008
main93319-14008
93319A4010
main93319-A4010
51 parts on this diagram · 2 diagrams in section
