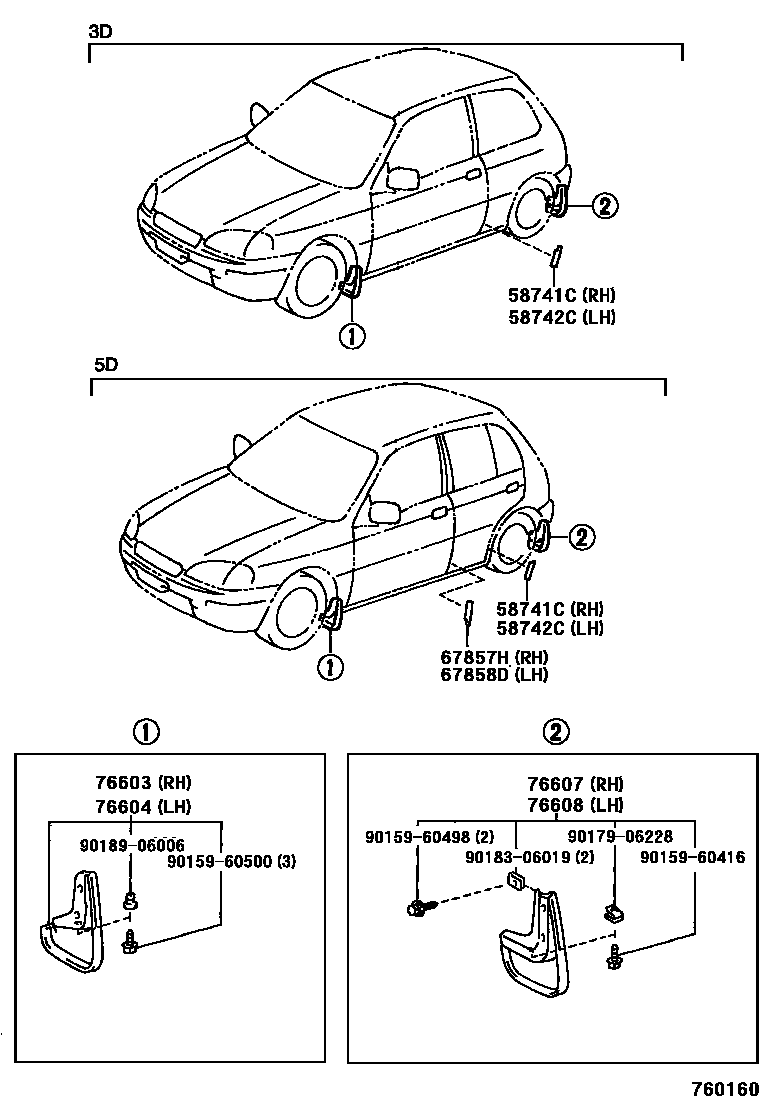

MUDGUARD & SPOILER

58741CPROTECTOR, QUARTER PANEL, RH

main58741-10050iEP91..3D¥810199601

main58741-10060iEP91..5D¥810199601

58742CPROTECTOR, QUARTER PANEL, LH

main58742-10050iEP91..3D¥810199601

main58742-10060iEP91..5D¥810199601

67857HPROTECTOR, REAR DOOR PANEL, RH

main67857-10030iEP91..5D¥270199601

67858DPROTECTOR, REAR DOOR PANEL, LH

main67858-10030iEP91..5D¥270199601

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19305iEP91¥4,740199601

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19305iEP91¥4,740199601

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19595iEP91¥4,740199601

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19595iEP91¥4,740199601

9015960416

main90159-60416¥120

9015960498

main90159-60498¥70

9015960500

main90159-60500¥70

9017906228

main90179-06228¥120

9018306019

main90183-06019¥80

9018906006

main90189-06006¥100

14 parts on this diagram · 1 diagram in section
