E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

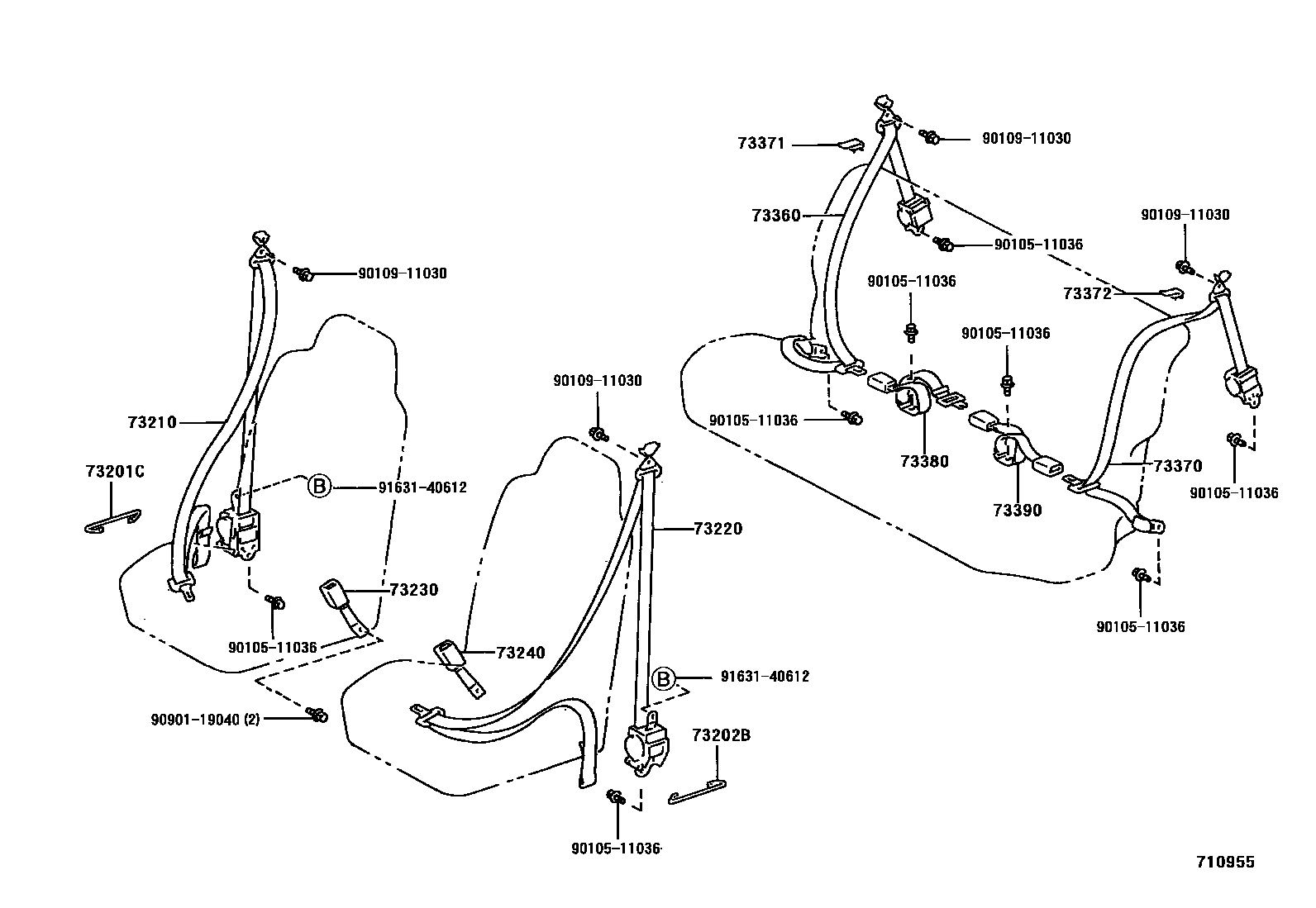

Parts diagram
73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH
main73201-10020i199601
73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH
main73202-10020i199601
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-10480-B1i199601-199712
BLUISH GRAY,TRIM1#
main73210-10680-B1i199601-199712
BLUISH GRAY,TRIM1#
main73210-10760-B1i199712-199906
BLUISH GRAY,TRIM1#
sub73210-10761
main73210-10761-B1i199906-199907
BLUISH GRAY,TRIM1#
main73210-10770-B1i199712-199907
W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73210-10770-B1i199712-199907
W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#
main73210-10780-B1i199712-199906
BLUISH GRAY,TRIM1#
sub73210-10781
main73210-10781-B1i199906-199907
BLUISH GRAY,TRIM1#
main73210-10790-B1i199712-199906
W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#
sub73210-10791
main73210-10790-B1i199712-199906
W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub73210-10791
main73210-10791-B1i199906-199907
W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#
main73210-10791-B1i199906-199907
W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-10480-B1i199601-199712
BLUISH GRAY,TRIM1#
main73220-10520-B1i199601-199712
BLUISH GRAY,TRIM1#
main73220-10620-B1i199712-199906
BLUISH GRAY,TRIM1#
sub73220-10621
main73220-10621-B1i199906-199907
BLUISH GRAY,TRIM1#
main73220-10630-B1i199712-199906
W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#
sub73220-10631
main73220-10630-B1i199712-199906
W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub73220-10631
main73220-10631-B1i199906-199907
W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#
main73220-10631-B1i199906-199907
W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#
main73220-10640-B1i199712-199906
BLUISH GRAY,TRIM1#
sub73220-10641
main73220-10641-B1i199906-199907
BLUISH GRAY,TRIM1#
main73220-10650-B1i199712-199906
W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#
sub73220-10651
main73220-10650-B1i199712-199906
W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#
sub73220-10651
main73220-10651-B1i199906-199907
W(*80,DRIVER SIDE),BLUISH GRAY,TRIM1#
main73220-10651-B1i199906-199907
W(*80,PASSENGER SIDE),BLUISH GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73240-16220-B0i199712-199907
SHADOW GRAY,TRIM10,12
sub73230-10400
sub73240-16220
main73240-16220-B1i199601-199712
BLUISH GRAY,TRIM1#
sub73230-10400
sub73240-16220
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-16220-B0i199712-199907
SHADOW GRAY,TRIM10,12
sub73230-10400
sub73240-16220
main73240-16220-B1i199601-199712
BLUISH GRAY,TRIM1#
sub73230-10400
sub73240-16220
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-10270-B1i199601-199712
BLUISH GRAY,TRIM1#
sub73360-10271
main73360-10271-B2i199712-199907
BLUISH GRAY,TRIM1#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-10200-B1i199601-199712
BLUISH GRAY,TRIM1#
sub73370-10201
main73370-10201-B2i199712-199907
BLUISH GRAY,TRIM1#
73371HANGER, REAR SEAT SHOULDER BELT, RH
main73371-16050-B1i199712-199907
SHADOW GRAY,TRIM1#
sub73371-16050
sub73371-52010
main73371-16050-B3i199601-199712
BLUISH GRAY,TRIM1#
sub73371-16050
sub73371-52010
73372HANGER, REAR SEAT SHOULDER BELT, LH
main73371-16050-B1i199712-199907
SHADOW GRAY,TRIM1#
sub73371-16050
sub73371-52010
main73371-16050-B3i199601-199712
BLUISH GRAY,TRIM1#
sub73371-16050
sub73371-52010
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73470-10060-B0i199601-199712
BLUISH GRAY,TRIM1#
sub73470-10060
main73470-10060-B1i199712-199907
BLUISH GRAY,TRIM1#
sub73470-10060
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-10100-B0i199601-199712
BLUISH GRAY,TRIM1#
sub73480-10100
main73480-10100-B1i199712-199907
BLUISH GRAY,TRIM1#
sub73480-10100
9010511036
main90105-11036
9010911030
main90109-11030
9090119040
main90901-19040
9163140612
main91631-40612

16 parts on this diagram · 2 diagrams in section
