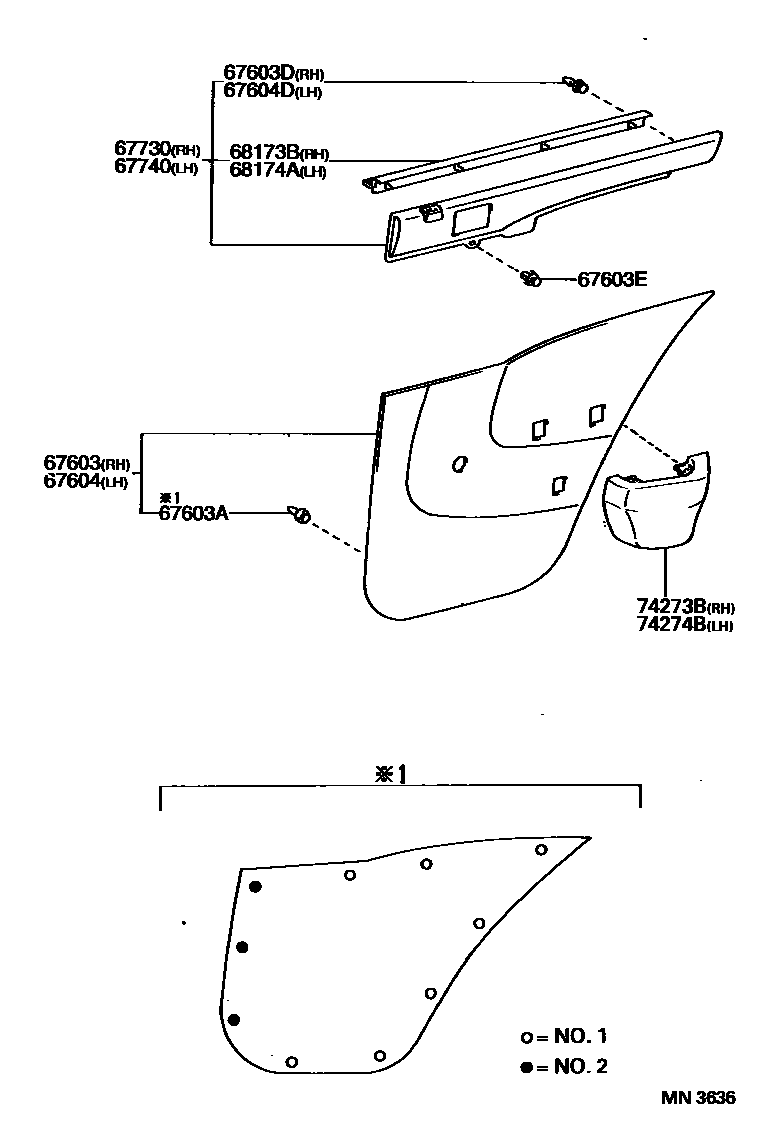

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-1C380-B0iEP91..5D199601-199712

LT.BLUISH GRAY,TRIM1#

main67630-1C390-B0iEP91..5D199601-199712

W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#

main67630-1C430-B0iEP91..5D199712-199907

FABRIC TYPE A-*104,LT.BLUISH GRAY,TRIM1#

main67630-1C430-B2iEP91..5D199804-199808

COOL WATER PACKAGE,GRAY/BLUE,TRIM10

main67630-1C430-B3iEP91..5D199804-199808

COOL WATER PACKAGE,GRAY/GREEN,TRIM10

main67630-1C440-B0iEP91..5D199712-199907

FABRIC TYPE B-*104,LT.BLUISH GRAY,TRIM1#

main67630-1C470-B0iEP91..5D199712-199907

FABRIC TYPE C-*104,BLUISH GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16080×14iEP91..5D199601

NO.1

main67771-89111×6iEP91..5D199601

NO.2

67603DRETAINER, REAR DOOR TRIM, RH

main67771-30070iEP91..5D199601

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07152-B1×2iEP91..5D199601-199712

BLUISH GRAY,TRIM1#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-1C380-B0iEP91..5D199601-199712

LT.BLUISH GRAY,TRIM1#

main67640-1C390-B0iEP91..5D199601-199712

W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#

main67640-1C430-B0iEP91..5D199712-199907

FABRIC TYPE A-*104,LT.BLUISH GRAY,TRIM1#

main67640-1C430-B2iEP91..5D199804-199808

COOL WATER PACKAGE,GRAY/BLUE,TRIM10

main67640-1C430-B3iEP91..5D199804-199808

COOL WATER PACKAGE,GRAY/GREEN,TRIM10

main67640-1C440-B0iEP91..5D199712-199907

FABRIC TYPE B-*104,LT.BLUISH GRAY,TRIM1#

main67640-1C470-B0iEP91..5D199712-199907

FABRIC TYPE C-*104,BLUISH GRAY,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-30070iEP91..5D199601

67730PANEL ASSY, REAR DOOR TRIM, UPPER RH

main67730-10020-B0iEP91..5D199601-199907

BLUISH GRAY,TRIM1#

67740PANEL ASSY, REAR DOOR TRIM, UPPER LH

main67740-10020-B0iEP91..5D199601-199907

BLUISH GRAY,TRIM1#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-10060iEP91..5D199601

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-10050iEP91..5D199601

74273BPANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-10010-B0iEP91..5D199601-199712

LT.BLUISH GRAY,TRIM10

main74273-10010-B1iEP91..5D199712-199907

BLUISH GRAY,TRIM1#

74274BPANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-10010-B0iEP91..5D199601-199712

LT.BLUISH GRAY,TRIM10

main74274-10010-B1iEP91..5D199712-199907

BLUISH GRAY,TRIM1#

12 parts on this diagram · 2 diagrams in section
