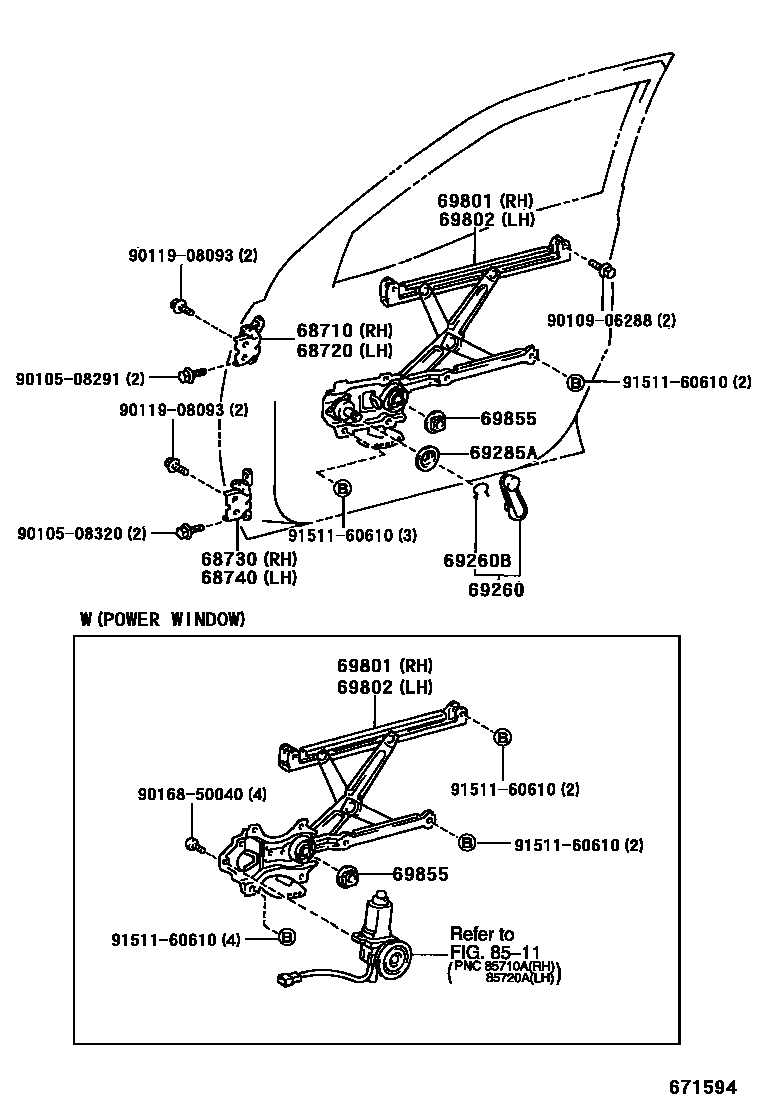

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12101iEP91199601

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12101iEP91199601

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12101iEP91199601

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12101iEP91199601

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-B2iEP91199601-199712

LT.BLUISH GRAY,TRIM1#

sub69260-14030

main69260-14030-B6iEP91199712-199907

BLUE GRAY,TRIM1#

sub69260-14030

main69260-14030-P0iEP91199712-199907

SHADOW GRAY,TRIM1#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iEP91199601

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08iEP91199601-199907

NATURAL WHITE,TRIM1#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-10090iEP91..3D199601

W(POWER WINDOW)

main69801-10100iEP91..5D199601

W(POWER WINDOW)

main69810-10140iEP91199601

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-10090iEP91..3D199601

W(POWER WINDOW)

main69802-10100iEP91..5D199601

W(POWER WINDOW)

main69820-10150iEP91199601

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010iEP91199601

9010508291

main90105-08291

9010508320

main90105-08320

9010906288

main90109-06288

9011908093

main90119-08093

9016850040

main90168-50040

9151160610

main91511-60610

16 parts on this diagram · 1 diagram in section
