DECK BOARD & DECK TRIM COVER
58731CCAP, REAR ABSORBER
63709BBAND SUB-ASSY, ROOM RACK
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64310BRACKET, PACKAGE TRAY TRIM, RH
BLUISH GRAY,TRIM1#
64320BRACKET, PACKAGE TRAY TRIM, LH
BLUISH GRAY,TRIM1#
64323ACLAMP, PACKAGE TRAY TRIM, RH
64324ACLAMP, PACKAGE TRAY TRIM, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLUISH GRAY,TRIM1#
W(REAR SPEAKER),BLUISH GRAY,TRIM1#
64342COVER, PACKAGE TRAY TRIM, UNDER
64706COVER SUB-ASSY, QUARTER TRIM, JACK
64714ECLIP(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM1#
64730BPANEL ASSY, DECK TRIM SIDE, RH
W(4 SPEAKER),BLUISH GRAY,TRIM11,12
W(4 SPEAKER),LT.BLUISH GRAY,TRIM10
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64735COVER, DECK TRIM SIDE SERVICE HOLE
64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER
64740BBOARD, DECK TRIM SIDE, LH
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
64770DCOVER ASSY, SPARE WHEEL
STANDARD USE = SPARE TIRE
64778DPROTECTOR, SPARE WHEEL
9011906428
main90119-06428
9016840093
main90168-40093
9046804157
main90468-04157
9354054010
main93540-54010
9356055025
main93560-55025

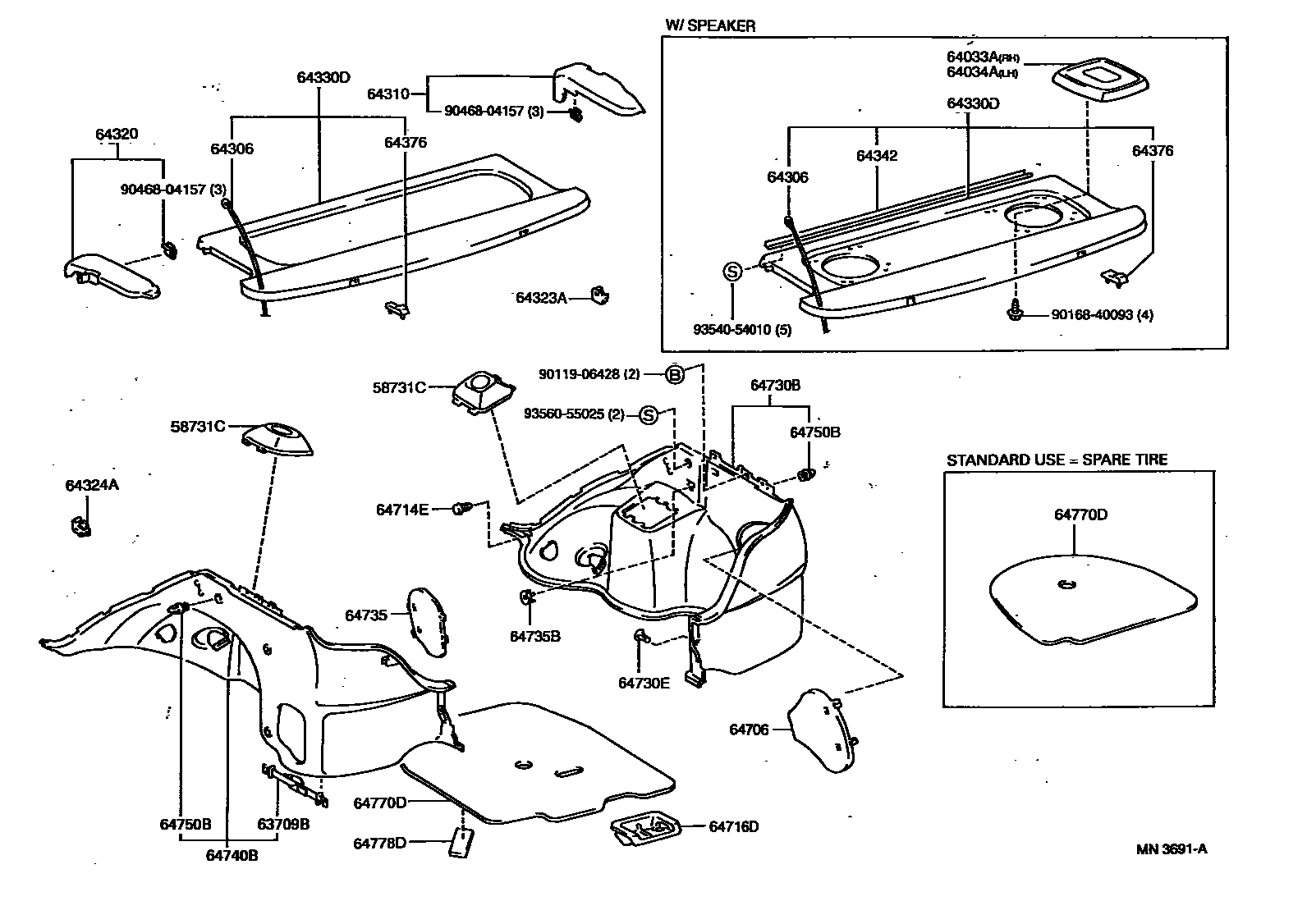

28 parts on this diagram · 1 diagram in section
