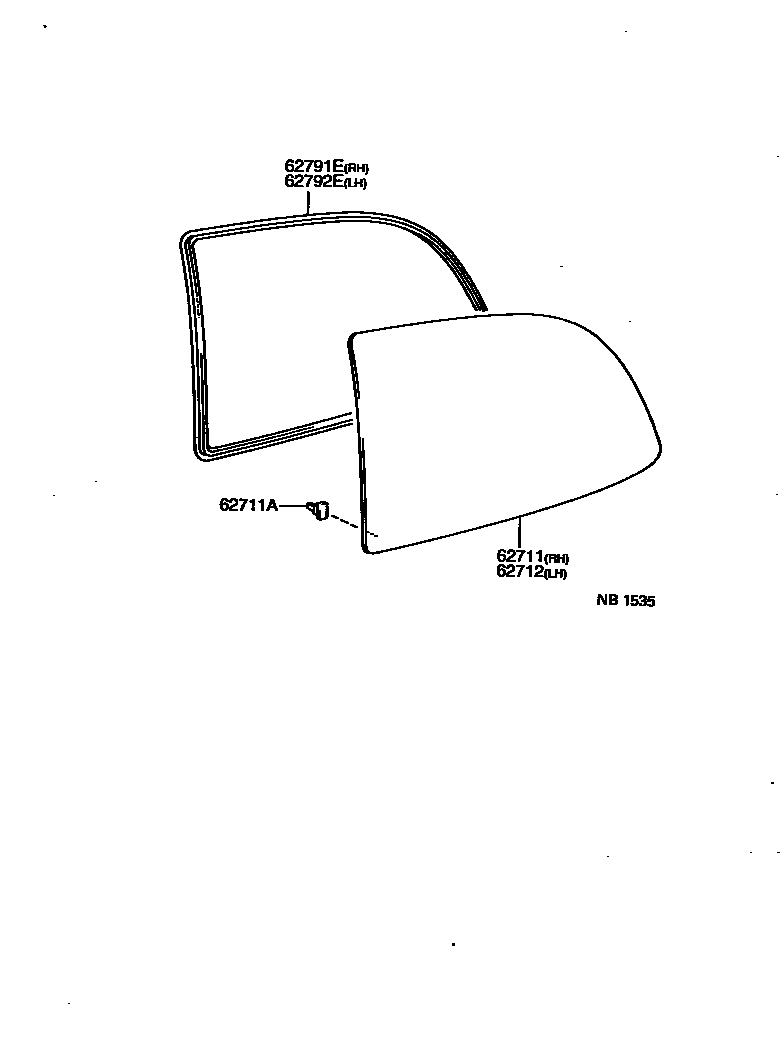

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-10330iEP91..3D199601

*TT,T=3.5,GREEN

62711ASPACER, QUARTER WINDOW GLASS, NO.1

main62761-10010×2iEP91..3D199601

62712GLASS, QUARTER WINDOW, LH

main62712-10270iEP91..3D199601

*TT,T=3.5,GREEN

62791EMOULDING, QUARTER WINDOW, UPPER RH

main62716-10020iEP91..3D199601

sub64813-48010

62792EMOULDING, QUARTER WINDOW, UPPER LH

main62716-10020iEP91..3D199601

sub64813-48010

5 parts on this diagram · 1 diagram in section
