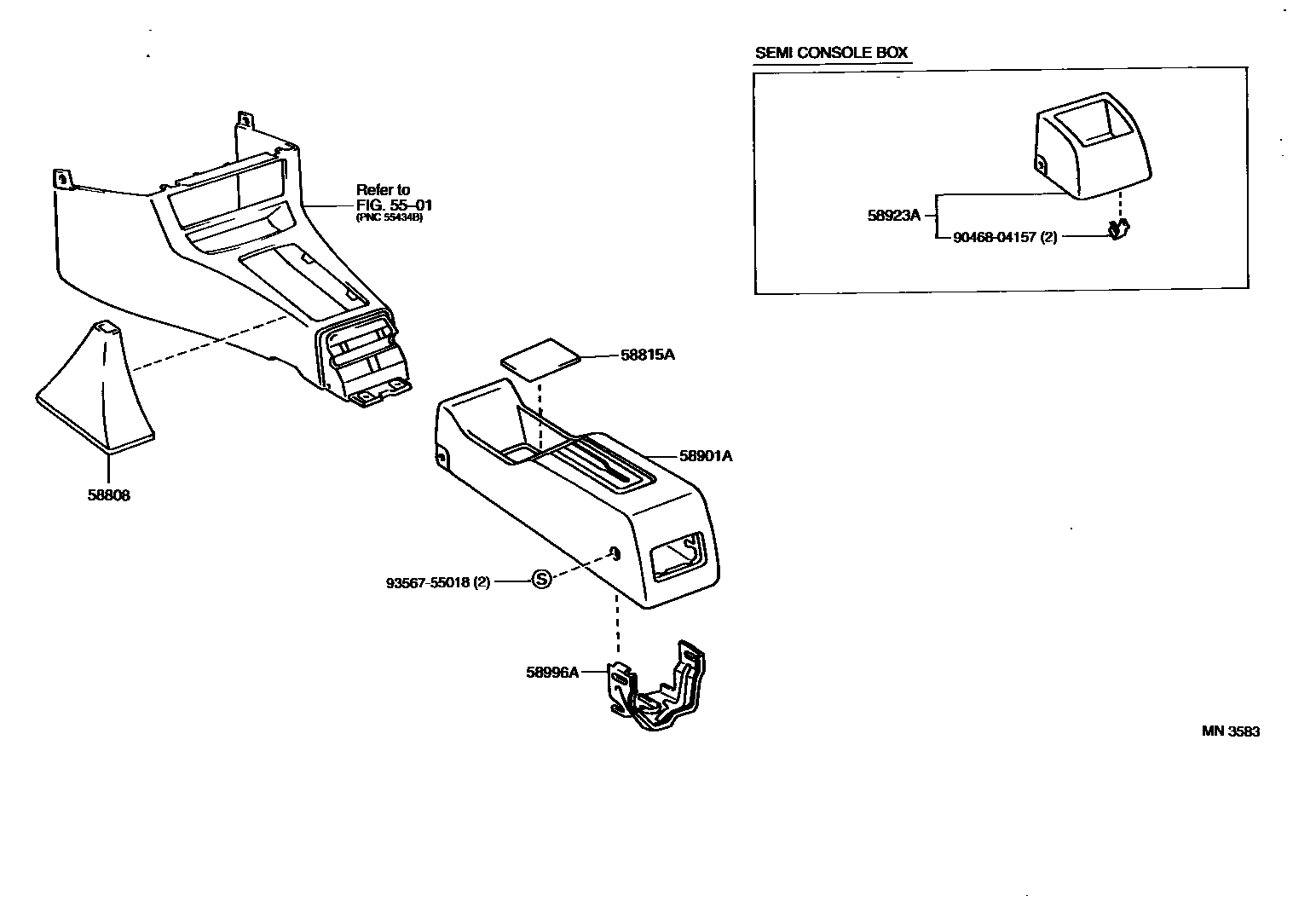

CONSOLE BOX & BRACKET

5501

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-10100-B0iEP91..5F199601-199712

BLUISH GRAY,TRIM1#

sub58808-10100

main58808-10100-B1iEP91..5F199712-199907

SHADOW GRAY,TRIM1#

sub58808-10100

58815ACARPET, CONSOLE BOX

main58815-10030-B0iEP91199601-199907

SHADOW GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-10030-B0iEP91199601-199907

BLUISH GRAY,TRIM1#

sub58901-10030

58923APANEL, CONSOLE REAR END

main58923-10010-B0iEP91199601-199907

BLUISH GRAY,TRIM1#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-10060iEP91199601

9046804157

main90468-04157

9356755018

main93567-55018

8 parts on this diagram · 1 diagram in section
