MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1C530-B0iEP91..RHD..3D199601-199712

BLUISH GRAY,TRIM1#

main58510-1C560-B0iEP91..LHD..3D199601-199712

BLUISH GRAY,TRIM1#

main58510-1C600-B0iEP91..LHD..3D199601-199712

W(REAR HEATER),BLUISH GRAY,TRIM1#

main58510-1C630-B0iEP91..RHD..5D199601-199712

BLUISH GRAY,TRIM1#

main58510-1C660-B0iEP91..LHD..5D199601-199712

BLUISH GRAY,TRIM1#

main58510-1C690-B0iEP91..LHD..5D199601-199712

W(REAR HEATER),BLUISH GRAY,TRIM1#

main58510-1C790-B1iEP91..RHD..3D199712

GRAY,TRIM1#

main58510-1C810-B1iEP91..LHD..3D199712

GRAY,TRIM1#

main58510-1C840-B1iEP91..LHD..3D199712

W(REAR HEATER),GRAY,TRIM1#

main58510-1M010-B1iEP91..RHD..5D199712

GRAY,TRIM1#

main58510-1M030-B1iEP91..LHD..5D199712

GRAY,TRIM1#

main58510-1M050-B1iEP91..LHD..5D199712

W(REAR HEATER),GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05051-22iEP91199601

BLACK,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-10030iEP91199601

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-B4iEP91199712

BLUISH GRAY,TRIM1#

main90467-06016-B5iEP91199601

LT.BLUISH GRAY,TRIM1#

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-06016-B4iEP91199712

BLUISH GRAY,TRIM1#

main90467-06016-B5iEP91199601

LT.BLUISH GRAY,TRIM1#

58570CCARPET ASSY, REAR FLOOR

main58570-10440-B0iEP91199601

LT. BLUISH GRAY,TRIM1#

main58570-10440-B1iEP91199712

BLUISH GRAY,TRIM1#

58572EMAT, REAR FLOOR, FRONT

main58572-10010iEP91199601

9018906116

main90189-06116

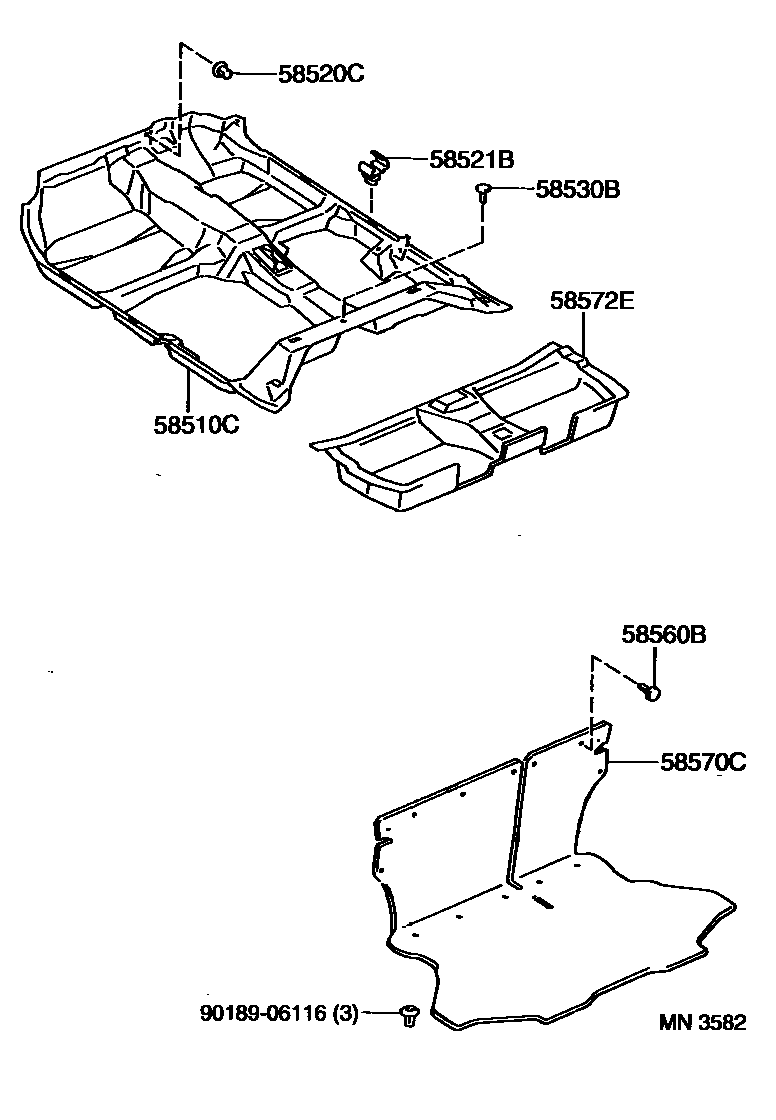

8 parts on this diagram · 1 diagram in section
