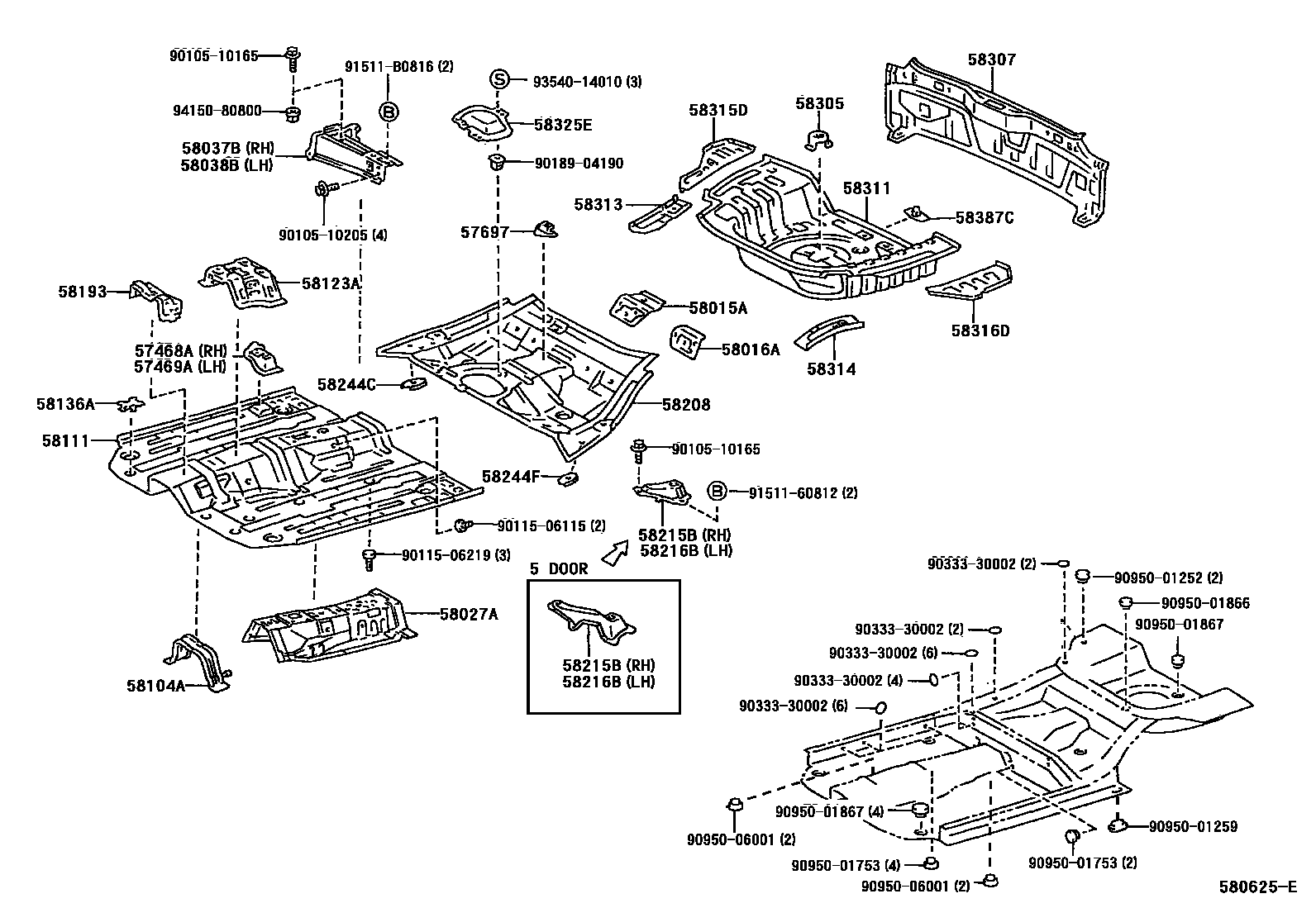

FLOOR PAN & LOWER BACK PANEL

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-10040iEP91199601

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-10040iEP91199601

57697RETAINER, REAR SEAT CUSHION

main57697-10010iEP91199601

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-10030iEP91199601

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iEP91199601

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-10120iEP91199601

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main58037-10010iEP91..3D199601

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main58038-10010iEP91..3D199601

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-10050iEP91199601-199708

sub58104-16020

main58104-16020iEP91199712

58111PAN, FRONT FLOOR

main58111-10160iEP91199601

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10050iEP91..LHD199601-199712

W(*80,MECHANICAL TYPE DRIVER SIDE) OR W/O(*80)

main58123-16050iEP91..RHD199601

W(*80,DRIVER SIDE & PASSENGER SIDE)

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iEP91199601

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-10030iEP91..RHD199601-199712

W(*80,MECHANICAL TYPE DRIVER SIDE) OR W/O(*80)

main58193-16040iEP91..RHD199601-199712

W(*80,DRIVER SIDE & PASSENGER SIDE)

main58193-16060iEP91199712

58208PAN, CENTER FLOOR

main58211-10130iEP91..3D199601

main58211-10170iEP91..5D199601

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-10050iEP91..5D199601

main58215-10060iEP91..3D199601

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-10050iEP91..5D199601

main58216-10060iEP91..3D199601

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-10020iEP91..3D199601

58244FBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-10020iEP91..3D199601

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEP91199601

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-10330iEP91199601

58311PAN, REAR FLOOR

main58311-10193iEP91199601

58313PANEL, REAR FLOOR SIDE, RH

main58313-16030iEP91199601

58314PANEL, REAR FLOOR SIDE, LH

main58314-16090iEP91199601

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-10020iEP91199601

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-10020iEP91199601

58325ECOVER, REAR FLOOR SERVICE HOLE

main58031-16020iEP91199608

main58325-10021iEP91199601-199608

sub58031-16020

sub82819-32200

58387CPLATE, REAR FLOOR FINISH

main58387-10010iEP91199601

9010510165

main90105-10165

9010510205

main90105-10205

9011506115

main90115-06115

9011506219

main90115-06219

9018904190

main90189-04190

9033330002

main90333-30002

9095001252

main90950-01252

9095001259

main90950-01259

9095001753

main90950-01753

9095001866

main90950-01866

9095001867

main90950-01867

9095006001

main90950-06001

9151160812

main91511-60812

91511B0816

main91511-B0816

9354014010

main93540-14010

9415080800

main94150-80800

43 parts on this diagram · 1 diagram in section
