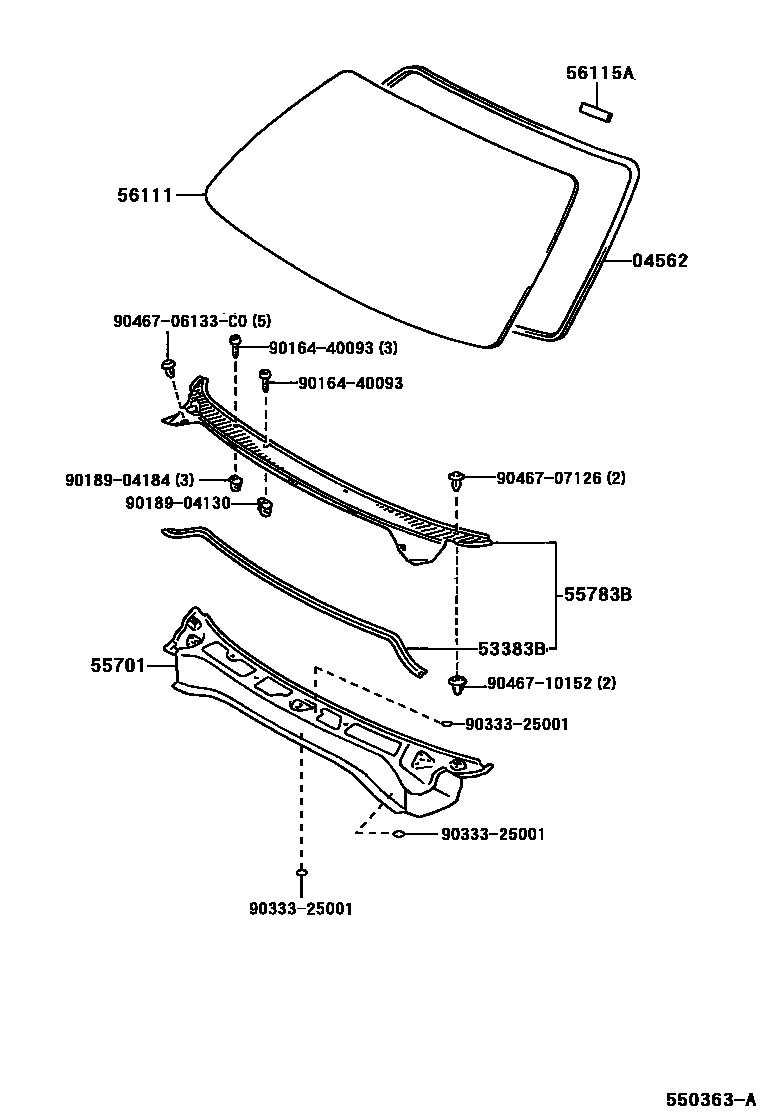

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEP91199601

53383BSEAL, HOOD TO COWL TOP

main53383-10040iEP91199601

55701PANEL SUB-ASSY, COWL

main55700-10270iEP91..RHD199601

sub55700-10900

main55700-10310iEP91..LHD199601-199712

sub55700-10901

main55700-10330iEP91..LHD199712

sub55700-10901

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-10050iEP91..RHD199601

main55708-10070iEP91..LHD199601

56111GLASS, WINDSHIELD

main56111-10370iEP91199601

*LAM,T=4.7,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-10010iEP91199601

9016440093

main90164-40093

9018904130

main90189-04130

9018904184

main90189-04184

9033325001

main90333-25001

9046706133C0

main90467-06133C0

9046707126

main90467-07126

9046710152

main90467-10152

13 parts on this diagram · 1 diagram in section
