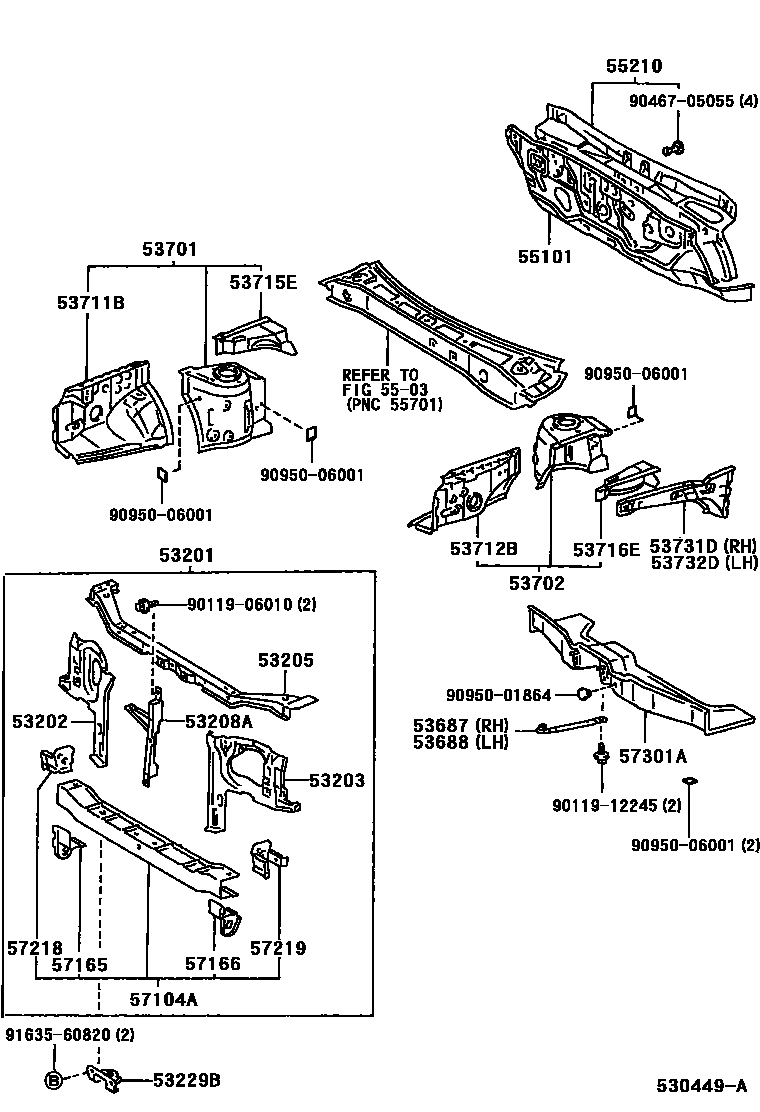

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
sub53202-10170
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
5503
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
9011906010
main90119-06010
9011912245
main90119-12245
9046705055
main90467-05055
9095001864
main90950-01864
9095006001
main90950-06001
9163560820
main91635-60820
31 parts on this diagram · 1 diagram in section
