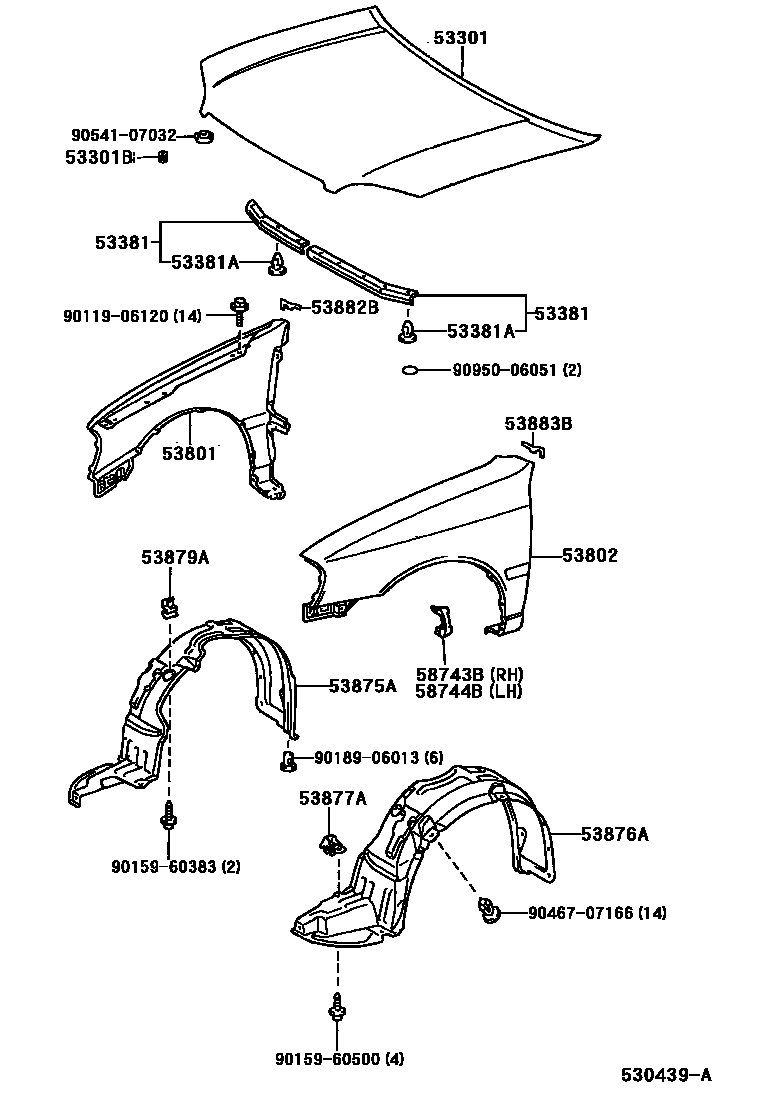

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-10340iEP91¥33,300199601

53301BCUSHION, HOOD BUMPER

main90541-15010iEP91¥220199601

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-10120iEP91¥860199601

RH

main53382-10040iEP91¥860199601

LH

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iEP91¥100199601

53801FENDER SUB-ASSY, FRONT RH

main53811-10560iEP91¥25,300199601-199707

main53811-10580iEP91¥25,400199601

W(FRONT MUDGUARD)

main53811-10580iEP91¥25,400199707

53802FENDER SUB-ASSY, FRONT LH

main53812-10600iEP91¥25,300199601-199707

main53812-10620iEP91¥25,400199601

W(FRONT MUDGUARD)

main53812-10620iEP91¥25,400199707

53875ALINER, FRONT FENDER, RH

main53875-10040iEP91¥5,800199601

53876ALINER, FRONT FENDER, LH

main53876-10040iEP91¥5,800199601

53877ABRACKET, FRONT FENDER SPLASH SHIELD

main53877-16010iEP91¥750199601

53879ARETAINER, FRONT FENDER LINER

main53879-16010iEP91¥220199601

53882BSEAL, FRONT FENDER, RH

main53882-10060iEP91¥180199601

53883BSEAL, FRONT FENDER, LH

main53882-10060iEP91¥180199601

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-10020iEP91¥1,120199601

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-10020iEP91¥1,120199601

9011906120

main90119-06120¥70

9015960383

main90159-60383¥70

9015960500

main90159-60500¥70

9018906013

main90189-06013¥70

9046707166

main90467-07166¥90

9054107032

main90541-07032¥200

9095006051

main90950-06051¥130

21 parts on this diagram · 1 diagram in section
