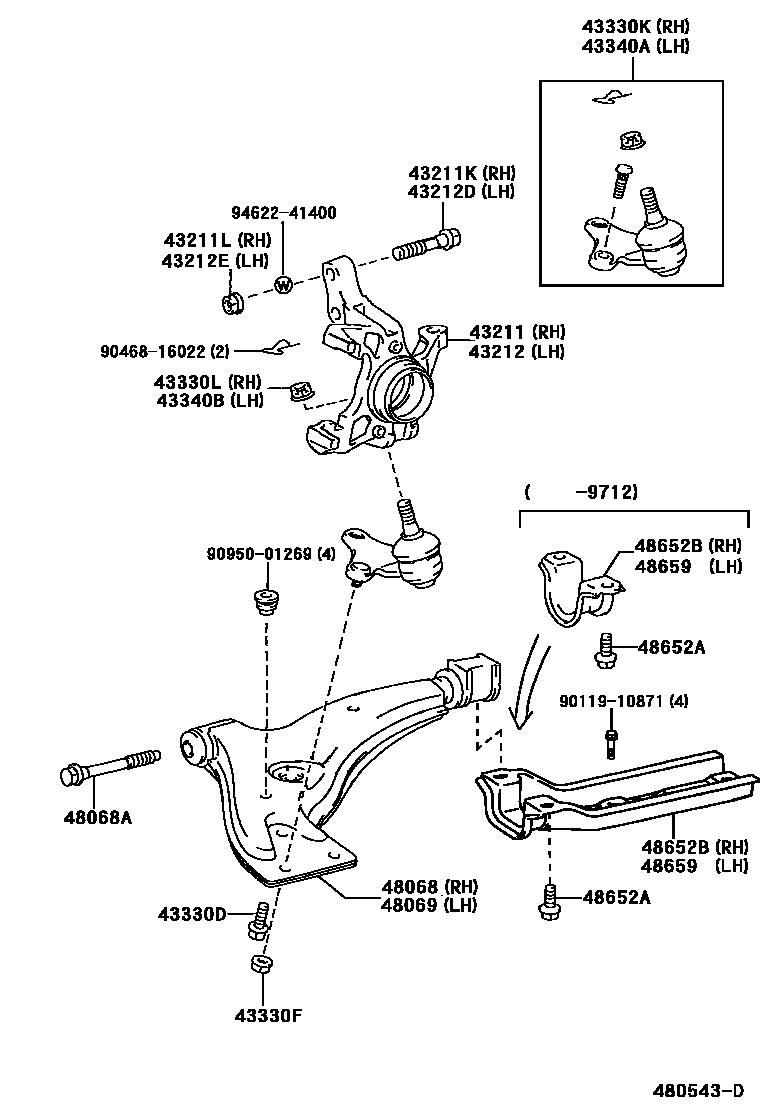

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-10062iEP91199601

W(ABS)

sub43211-59045

main43211-10071iEP91199605

sub43211-59045

main43211-10081iEP91199601-199605

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15004iEP91199712

OD=13.9

main90105-15005iEP91199712

OD=13.3

main90105-15006iEP91199712

OD=12.4

main90105-15012iEP91199601

OD=15.0

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006iEP91199601

43212KNUCKLE, STEERING, LH

main43212-10042iEP91199601

W(ABS)

sub43212-59045

main43212-10051iEP91199605

sub43212-59045

main43212-10061iEP91199601-199605

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15004iEP91199712

OD=13.9

main90105-15005iEP91199712

OD=13.3

main90105-15006iEP91199712

OD=12.4

main90105-15012iEP91199601

OD=15.0

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006iEP91199601

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10407iEP91199601

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10088iEP91199601

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19085iEP91199601

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iEP91199601

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-19025iEP91199601

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iEP91199601

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10100iEP91199601-199712

main48068-10120iEP91199712

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099iEP91199601

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10080iEP91199601-199712

main48069-10100iEP91199712

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90901-19018iEP91199601

48652BBRACKET, FRONT LOWER ARM, RH

main48652-10020iEP91199601-199712

main48652-46010iEP91199712

48659BRACKET, FRONT LOWER ARM, LH

main48652-10020iEP91199601-199712

main48659-46010iEP91199712

9011910871

main90119-10871

9046816022

main90468-16022

9095001269

main90950-01269

9462241400

main94622-41400

22 parts on this diagram · 2 diagrams in section
