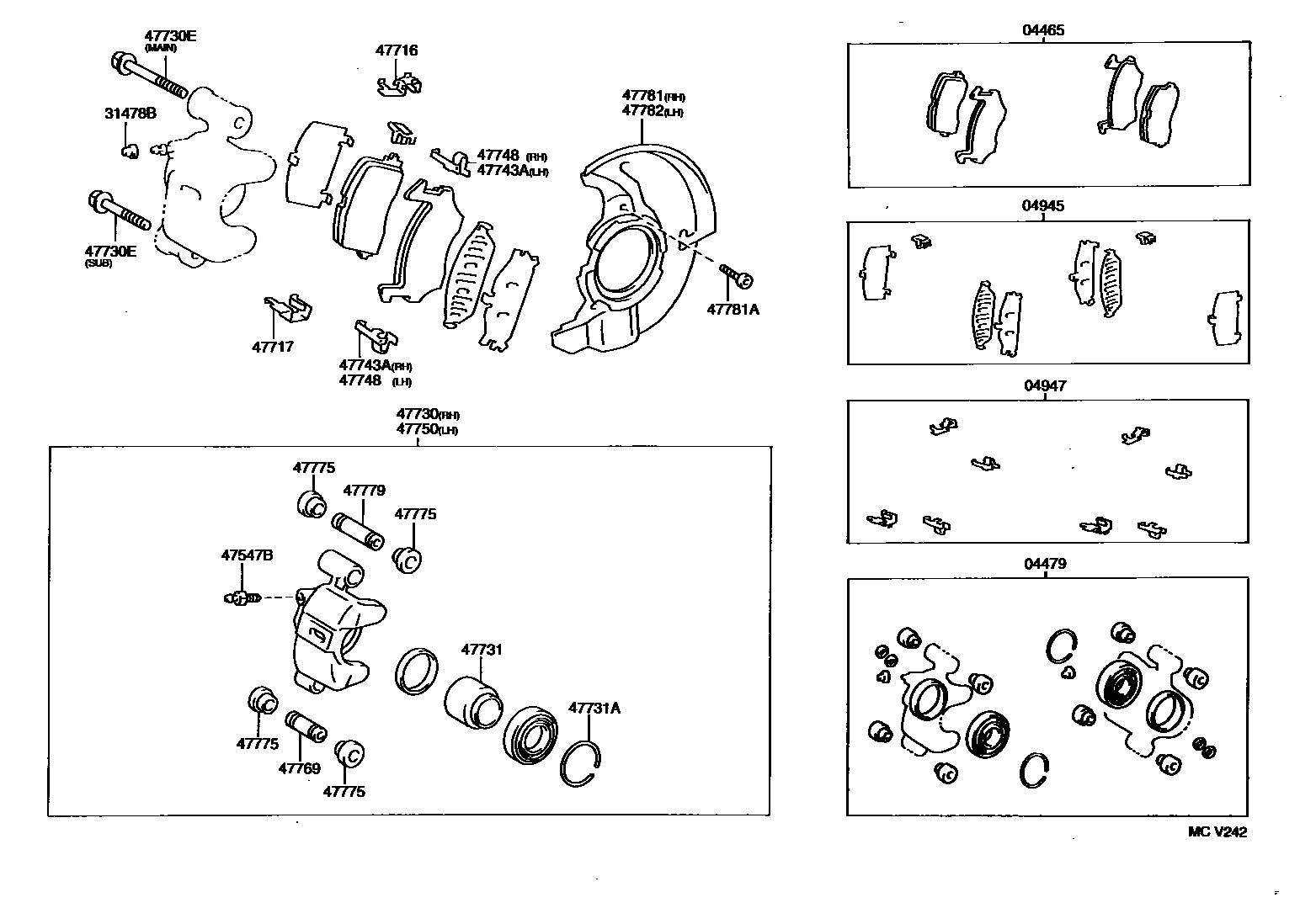

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1W(ABS)

04465PAD KIT, DISC BRAKE, FRONT

main04465-10040iEP91199601-199605

W(ABS)

main04465-10070iEP91199601-199605

main04465-16120iEP91199712

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10060iEP91199601-199605

main04479-10070iEP91199605

main04479-12091iEP91199601

W(ABS)

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-10010iEP91199601-199605

main04945-20050iEP91199605-199907

main04945-32050iEP91199601-199907

W(ABS)

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iEP91199605

main04947-32010iEP91199601-199712

W(ABS)

main04947-32030iEP91199601-199605

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iEP91199601

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iEP91199601

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iEP91199605

main47716-32031×4iEP91199601-199712

W(ABS)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iEP91199605

main47717-32031×2iEP91199601-199605

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10090iEP91199601-199605

main47730-10101iEP91199601

W(ABS)

main47730-16090iEP91199605

47730EBOLT(FOR FRONT DISC BRAKE CYLINDER)

main90119-08005×2iEP91199601-199605

*8-1.25PX58-18,SUB PIN SIDE

sub90119-08652

main90119-08145×2iEP91199601-199605

*8-1.25PX78-30,MAIN PIN SIDE

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iEP91199601

W(ABS)

main47731-16020×2iEP91199601-199605

main47731-16040×2iEP91199605

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iEP91199601

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-10050×2iEP91199601-199605

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-10060×2iEP91199601-199605

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10090iEP91199601-199605

main47750-10101iEP91199601

W(ABS)

main47750-16090iEP91199605

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-10030×2iEP91199601-199605

main47769-12030×2iEP91199601

W(ABS)

main47769-20010×2iEP91199605

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16010×8iEP91199601-199605

main47775-16020×8iEP91199605

main47775-32010×8iEP91199601

W(ABS)

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-10010×2iEP91199601-199605

main47779-16010×2iEP91199601

W(ABS)

main47779-20010×2iEP91199605

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10050iEP91199601-199605

main47781-10060iEP91199601-199605

W(ABS)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iEP91199601

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10050iEP91199601-199605

main47782-10060iEP91199601-199605

W(ABS)

21 parts on this diagram · 2 diagrams in section
