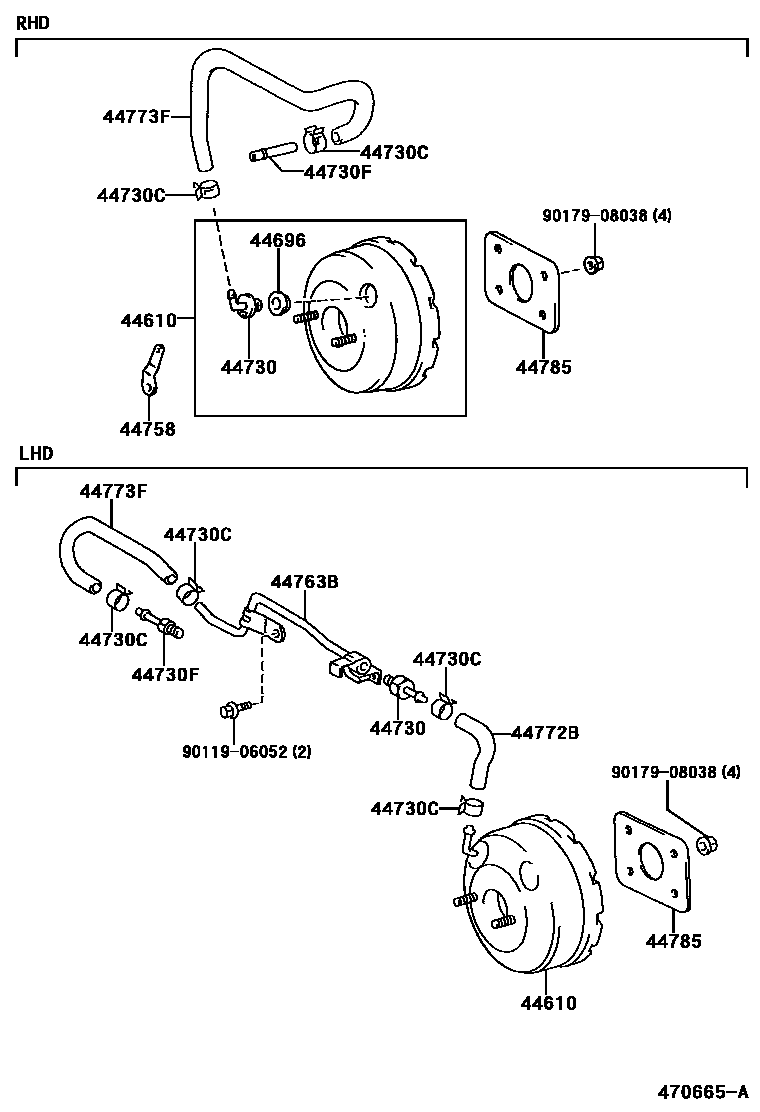

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-10370iEP91..RHD¥43,300199601-199712

main44610-10450iEP91..LHD¥41,800199601-199712

main44610-16510iEP91..LHD¥41,800199601-199712

W(ABS)

main44610-16620iEP91..RHD¥43,300199712

main44610-16630iEP91..LHD¥41,800199712

44696GROMMET, CHECK VALVE

main90480-24439iEP91..RHD¥390199601

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iEP91..LHD¥7,700199601-199907

main44730-42010iEP91..RHD¥2,170199601-199907

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iEP91..RHD¥200199601

sub96134-51500¥180

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90406-09006iEP91¥160199601

44758BRACKET, VACUUM CHECK VALVE

main44758-16090iEP91..RHD¥120199601

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-10030iEP91..LHD¥1,760199601

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-10200iEP91..LHD¥1,160199601

44773FHOSE, UNION TO CHECK VALVE

main44773-10320iEP91..LHD¥1,610199601

main44773-16150iEP91..RHD¥2,640199601

44785GASKET, BRAKE BOOSTER

main44785-16020iEP91¥220199601

9011906052

main90119-06052¥120

9017908038

main90179-08038¥130

12 parts on this diagram · 1 diagram in section
