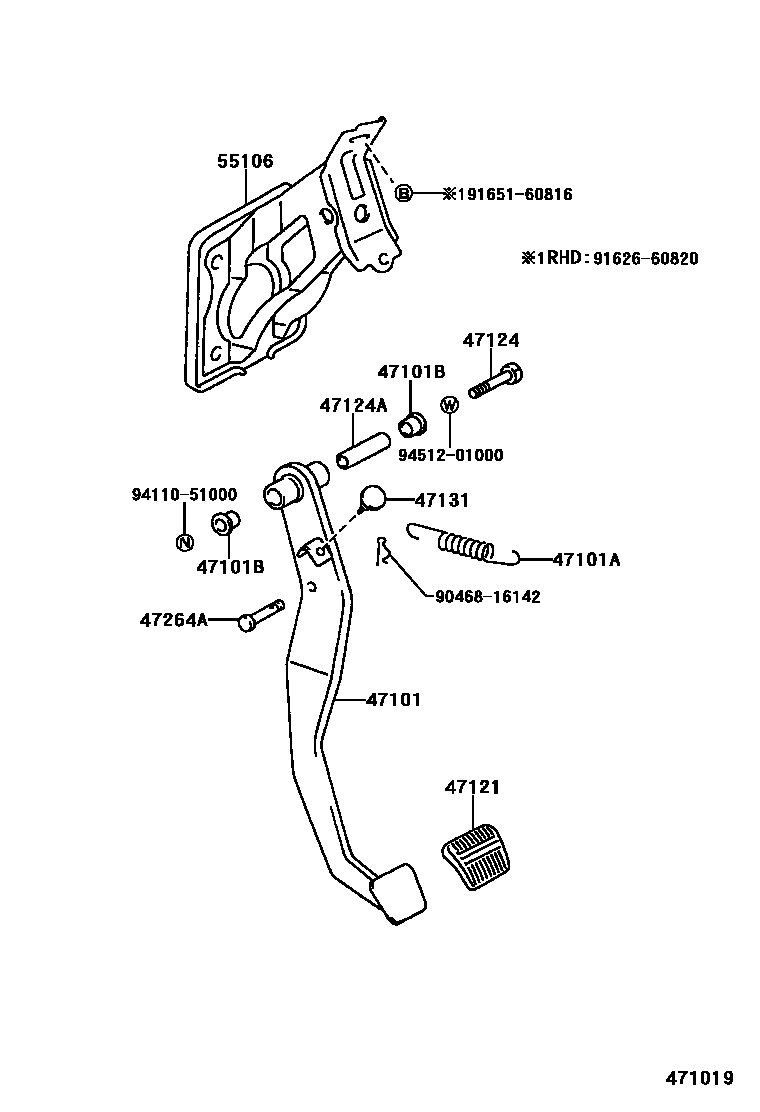

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-10250iEP91..RHD..5F199712

sub47101-16210

main47101-10260iEP91..RHD..3FC199712

sub47101-16220

main47101-16170iEP91..RHD..5F199601-199712

main47101-16180iEP91..RHD..3FC199601-199712

main47101-16190iEP91..LHD..5F199601-199712

main47101-16200iEP91..LHD..3FC199601-199712

main47101-16270iEP91..LHD..5F199712

main47101-16280iEP91..LHD..3FC199712

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14038iEP91199601

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iEP91199601

47121PAD, BRAKE PEDAL

main31321-14020iEP91..5F199601

main47121-12020iEP91..3FC199601

47124SHAFT, BRAKE PEDAL

main90101-10015iEP91199601

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEP91199601

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iEP91199601

47264APIN(FOR PUSH ROD)

main90249-08051iEP91199601

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-10240iEP91..RHD199712

main55106-16150iEP91..RHD199601-199712

main55106-16160iEP91..LHD199601-199712

main55106-16180iEP91..LHD199712

9046816142

main90468-16142

9162660820

main91626-60820

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
