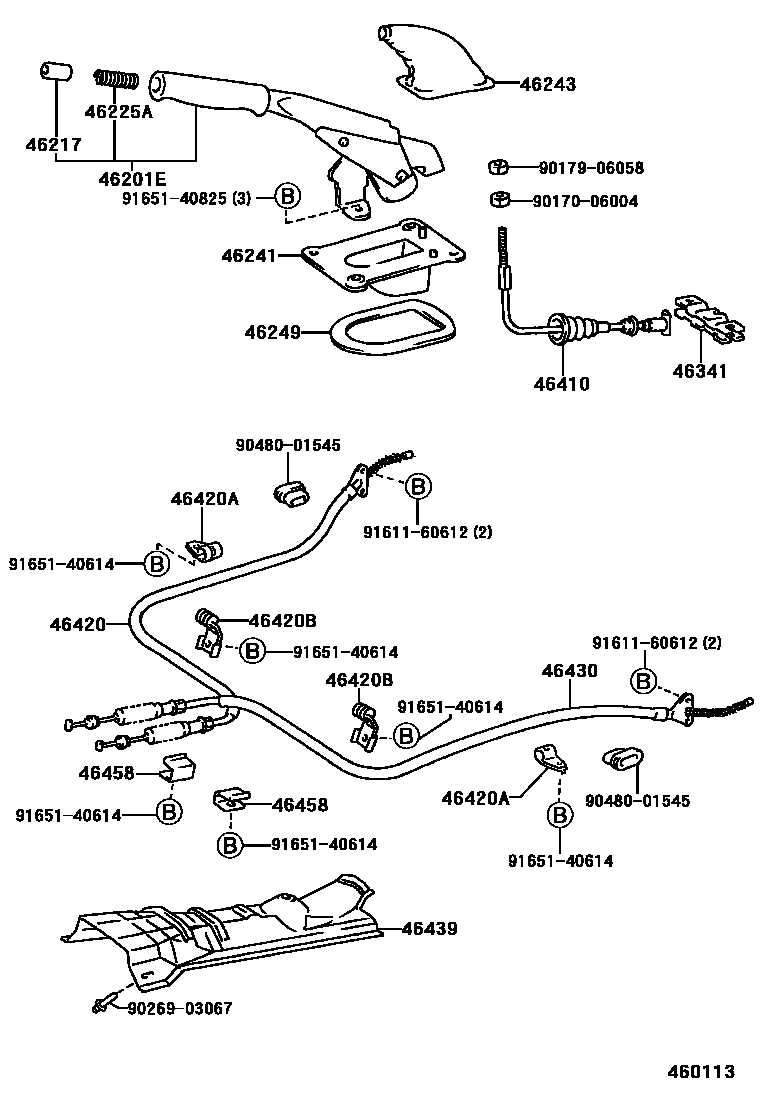

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
46217KNOB, PARKING BRAKE RELEASE ROD
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
46241BOOT, PARKING BRAKE LEVER
46243COVER, PARKING BRAKE LEVER
46249SHIELD, PARKING BRAKE HOLE
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46439INSULATOR, PARKING BRAKE CABLE HEAT
46458RETAINER, CABLE
9017006004
main90170-06004
9017906058
main90179-06058
9026903067
main90269-03067
9048001545
main90480-01545
9161160612
main91611-60612
9165140614
main91651-40614
9165140825
main91651-40825
21 parts on this diagram · 1 diagram in section
